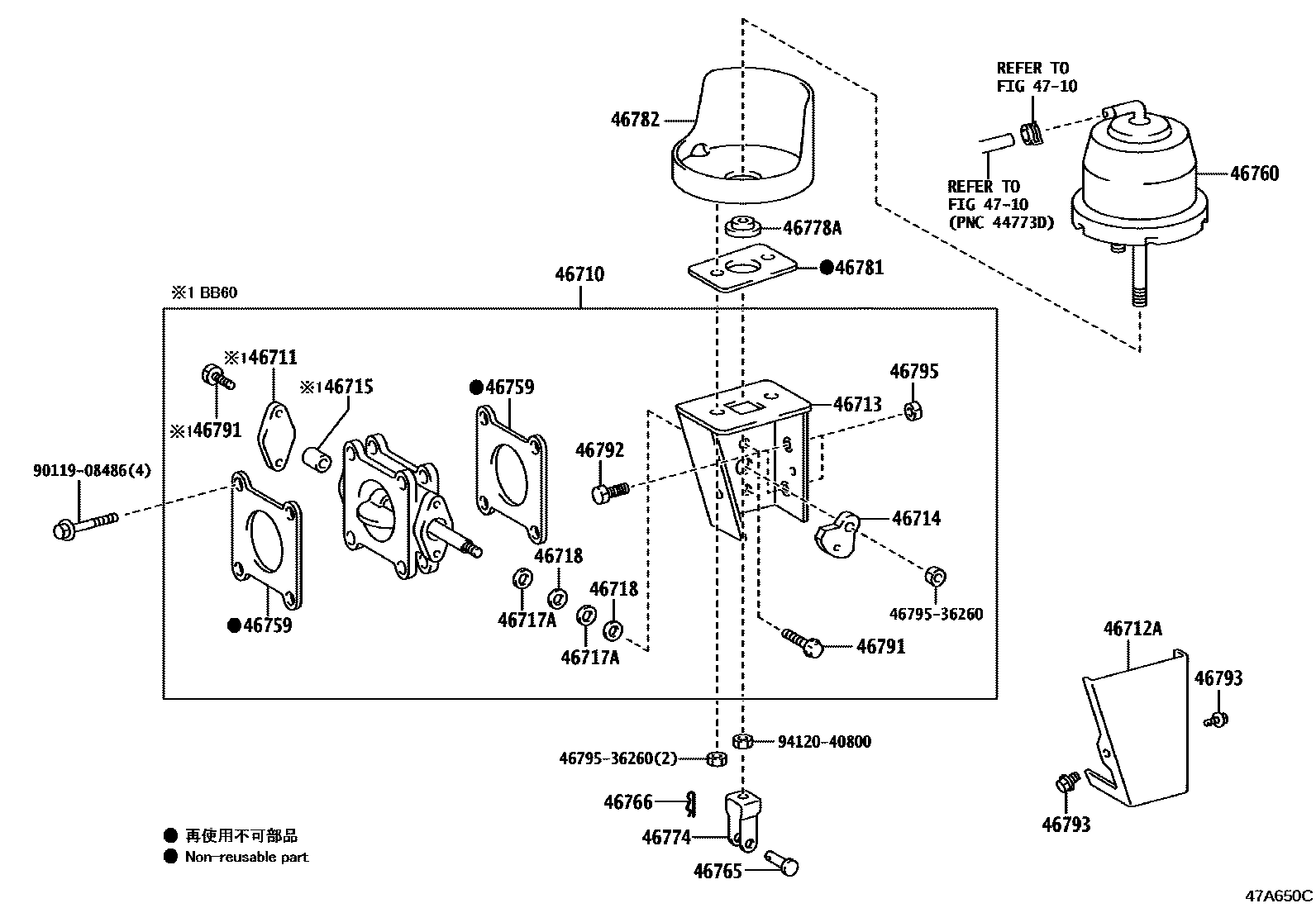

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0002 1EXCEPT EURO4 OR EURO6 0003 1EURO4 OR EURO6 0004 1

46710VALVE ASSY, EXHAUST BRAKE

main46710-36270iXZB70..22S..GEN202201-202412

main46710-EV030iXZB70,80..6FC201908

main46710-36250iBB60201701-201907

EXHAUST RETARDER-WITH

main46710-36260iHZB60,70..GEN201701-202201

EXHAUST RETARDER-WITH

46711COVER, EXHAUST VALVE

main46711-36010iBB60201701-201907

EXHAUST RETARDER-WITH

46712COVER, EXHAUST VALVE LINK

main46712-EV030iXZB80..6FC201908-202201

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36270iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46713BRACKET, EXHAUST VALVE

main46713-36270iHZB60;HZB70..WC..GEN;HZB70..30S..WOC; XZB70..LHD..(23S,29S)..WC..GEN; XZB70..SA;XZB70..29S;XZB70..LHD..DX..GEN202201

EXHAUST EMISSION CONTROL-EURO 4; EXHAUST RETARDER-WITH

main46713-EV020iXZB80;XZB70..20S..5F202201-202512

46714LEVER, EXHAUST VALVE

main46714-36010iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

main46714-EV010iXZB70,80..6FC201908

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBB60201701-201907

L=16.0,EXHAUST RETARDER-WITH

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36270×2iXZB60..GCC201701-201907

main46717-36010×2iHZB60,70..GEN201701-202201

EXHAUST RETARDER-WITH

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36270×2iXZB70..SA;XZB70,80..4FC;XZB70..LHD..DX;XZB70..22S..GEN;XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..5F..STD201701

main46718-36010×2iBB60201701-201907

EXHAUST RETARDER-WITH

46759GASKET, EXHAUST RETARDER

main46759-36040×2iHZB70..GCC; XZB70..SA;XZB70,80..4FC;XZB70..LHD..DX;XZB70..22S..GEN;XZB60,70..(02S,17S,19S,22S,23S,25S,29S,30S)..5F..STD201701

FRONT FOG LAMP-WITH

main46759-36030×2iBB60201701-201907

EXHAUST RETARDER-WITH

46760CYLINDER ASSY, EXHAUST RETARDER VACUUM

main46760-36260iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

main46760-EV060iXZB80;XZB70..20S..5F202201-202512

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46774CLEVIS, EXHAUST BRAKE ROD

main46774-36270iHZB70..23S..GCC; XZB70..22S..GEN202201-202412

FRONT FOG LAMP-WITH

main46774-EV010iXZB70,80..6FC201908

46778BEARING, VACUUM CYLINDER

main46778-EV010iXZB80..6FC201908-202201

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

main46782-EV030iXZB80;XZB70..20S..5F202201-202512

46791BOLT, EXHAUST VALVE COVER

main46791-25041×2iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBB60; XZB60..GCC201701-201907

EXHAUST RETARDER-WITH

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iXZB70..23S..GCC;XZB70..RHD..23S..GEN202501

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iHZB60;HZB70..WC..GEN;HZB70..30S..WOC; XZB70..SA;XZB70..29S;XZB70..LHD..DX..GEN202201

EXHAUST RETARDER-WITH

4710EXHAUST BRAKE TUBE & CLAMP

→ Go to FIG 47-10

4679536260NUT, EXHAUST VALVE BRACKET

main46795-36260

9011908486

main90119-08486

9412040800

main94120-40800

26 parts on this diagram · 4 diagrams in section
