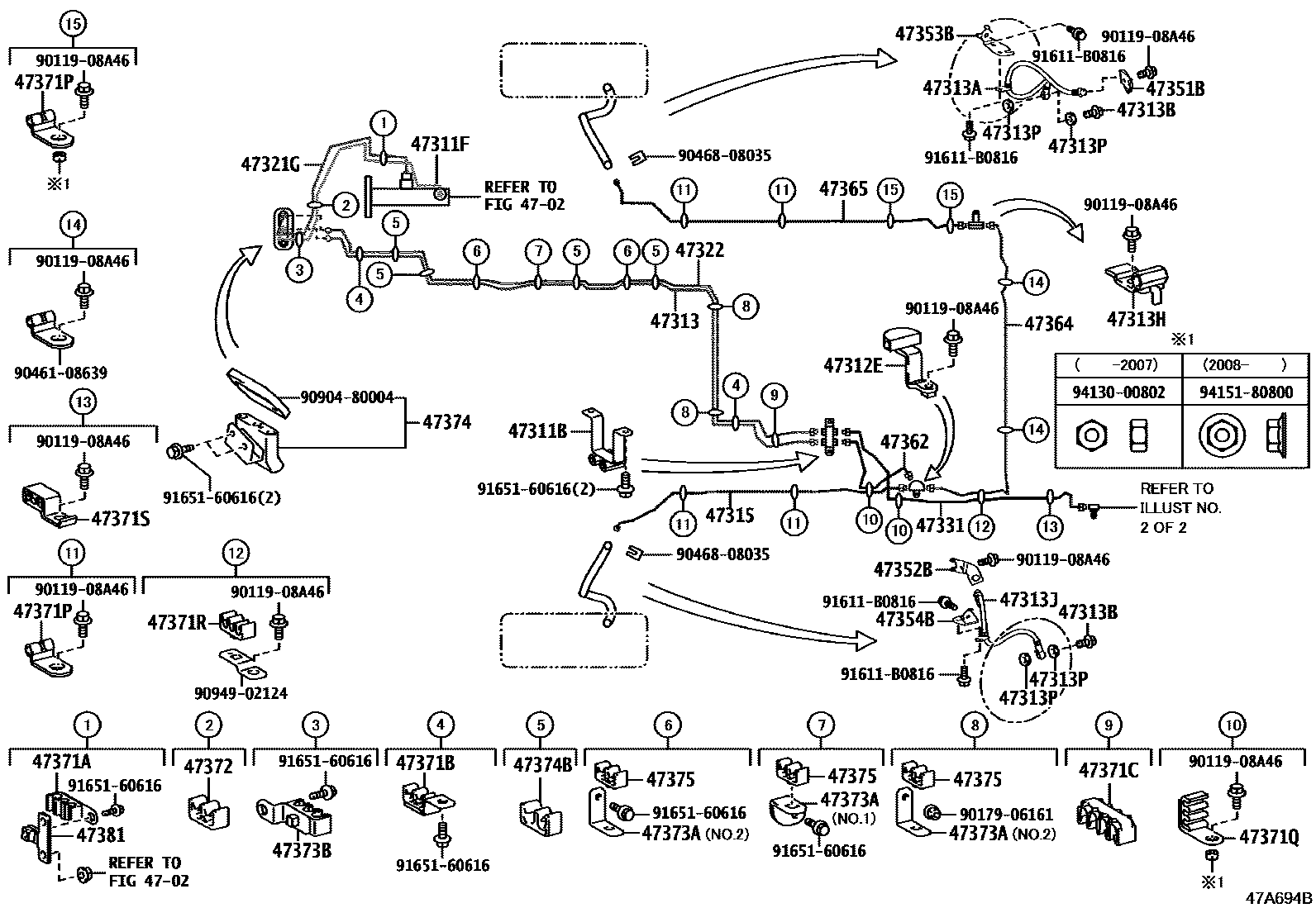

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
main90412-12068supersedes 90904-12083iTRB70,XZB70..LHD..(23S,29S,30S)..WC..GEN; XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
ABS-WITH
ABS-WITH(ABS & VSC)
47311FTUBE, FRONT BRAKE, FRAME NO.1
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
main47311-36563iHZB70..30S..WOC;HZB70..LHD..WC..GEN;HZB60,TRB70..LHD..(26S,30S);XZB70..LHD..(23S,29S)..WC..GEN202201-202501
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
main47311-V4020iHZB70..30S..WOC;HZB70..LHD..WC..GEN;HZB60,TRB70..LHD..(26S,30S);XZB70..LHD..(23S,29S)..WC..GEN202501
47312TUBE, FRONT BRAKE, NO.2
ABS-WITH(ABS & VSC)
ABS-WITH(ABS & VSC)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
47313TUBE, FRONT BRAKE, NO.3
main47313-36420supersedes 47313-V4020iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN; XZB70..6FC;XZB70..TAIW201701
ABS-WITH(ABS & VSC)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
main90401-10023×2supersedes 90401-10015iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN; HZB70..GEN;XZB70..LHD..(23S,29S)..WC..GEN; XZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S,24S,30S)..(5F,6FC)201701-202201
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)
47313HWAY, NO.3(FOR FRONT BRAKE TUBE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
ABS-WITH
main47315-36380supersedes 47315-36390iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN; TRB70..WC..GEN202201
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
47321TUBE, REAR BRAKE, NO.1
ABS-WITH
47321GTUBE, REAR BRAKE, FRAME NO.1
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
47322TUBE, REAR BRAKE, NO.2
ABS-WITH(ABS & VSC)
ABS-WITH
47331TUBE, REAR BRAKE, NO.10
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
main47331-36330iTRB60,XZB70..LHD..GEN; TRB70..GEN; XZB80..5F; XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN201908-202101
ABS-WITH(ABS & VSC); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC); SINGAPORE SPEC
main47331-V4010supersedes 47331-V4020iTRB70..GEN; XZB70..GCC;XZB70..RHD..5F;TRB60,70,XZB80..01S,19S,20S,23S; XZB70..LHD..(23S,29S)..WC..GEN202101-202201
ABS-WITH(ABS & VSC); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47353BRACKET, FLEXIBLE HOSE(FOR REAR)
ABS-WITH,NO.1:REFER ILLUST.; NO.1:REFER ILLUST.
ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.; NO.2:REFER ILLUST.
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
main47354-36150iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
47362TUBE, FRONT BRAKE, NO.11
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
47364TUBE, FRONT BRAKE, NO.13
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
47365TUBE, FRONT BRAKE, NO.14
main47365-36120supersedes 47365-36140iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN; TRB70..GEN;HZB70..23S..GCC201701-202201
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
main47365-36130iTRB60,XZB70..LHD..GEN; TRB70..GEN; XZB80..5F; XZB80..6FC;TRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN201908-202101
ABS-WITH(ABS & VSC); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC); SINGAPORE SPEC
47371ACLAMP, BRAKE TUBE, NO.1
main90464-00857iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S;XZB70..LHD..(23S,29S)..WC..GEN202501
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
main90949-04070iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S;XZB70..LHD..(23S,29S)..WC..GEN202201-202501
47371BCLAMP, BRAKE TUBE, NO.6
ABS-WITH(ABS & VSC)
47371CCLAMP, BRAKE TUBE, NO.7
ABS-WITH(ABS & VSC)
47371PCLAMP, BRAKE TUBE, NO.14
47371QCLAMP, BRAKE TUBE, NO.15
main47371-36060iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S;XZB70..LHD..(23S,29S)..WC..GEN202201
47371RCLAMP, BRAKE TUBE, NO.16
main90480-01620iTRB60,70,XZB70..GCC,TAIW;XZB70..RHD..(22S,29S)..GEN; TRB60,XZB70..LHD..GEN; TRB70..GEN201701-201908
ABS-WITH(ABS & VSC); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
47371SCLAMP, BRAKE TUBE, NO.17
47372CLAMP, BRAKE TUBE, NO.2
main90949-01E53supersedes 90949-01E54iHZB70..30S..WOC;HZB70,TRB70..LHD..WC..GEN;XZB70..LHD..(23S,29S)..WC..GEN; XZB70..23S..GCC;GDB70,TRB60,70..LHD..(6F,6FC)202201
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
47373ABRACKET, TUBE CLAMP
NO.1:REFER ILLUST.
47373BCLAMP, BRAKE TUBE, NO.3
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
47374CONNECTOR, TUBE
main47307-36120supersedes 47307-36110iHZB70..23S..GCC;XZB70,80..(01S,20S)..5F; HZB70..GEN202101-202201
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
47374BCLAMP, BRAKE TUBE, NO.4
main90949-04066×3supersedes 90464-00904iHZB70..23S..GCC; HZB70..GEN; XZB70,80..(01S,20S)..5F202101-202201
ABS-WITH(ABS & VSC)
47375CLAMP, BRAKE TUBE, NO.5
47381BRACKET, BRAKE TUBE CLAMP NO.1
main47381-36120iHZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S;XZB70..LHD..(23S,29S)..WC..GEN202201-202501
9011908A46
main90119-08A46
9017906161
main90179-06161
9046108639
main90461-08639
9046808035
main90468-08035
9090480004
main90904-80004
9094902124
main90949-02124
91611B0816
main91611-B0816
9165160616
main91651-60616
9413000802
main94130-00802
9415180800
main94151-80800
