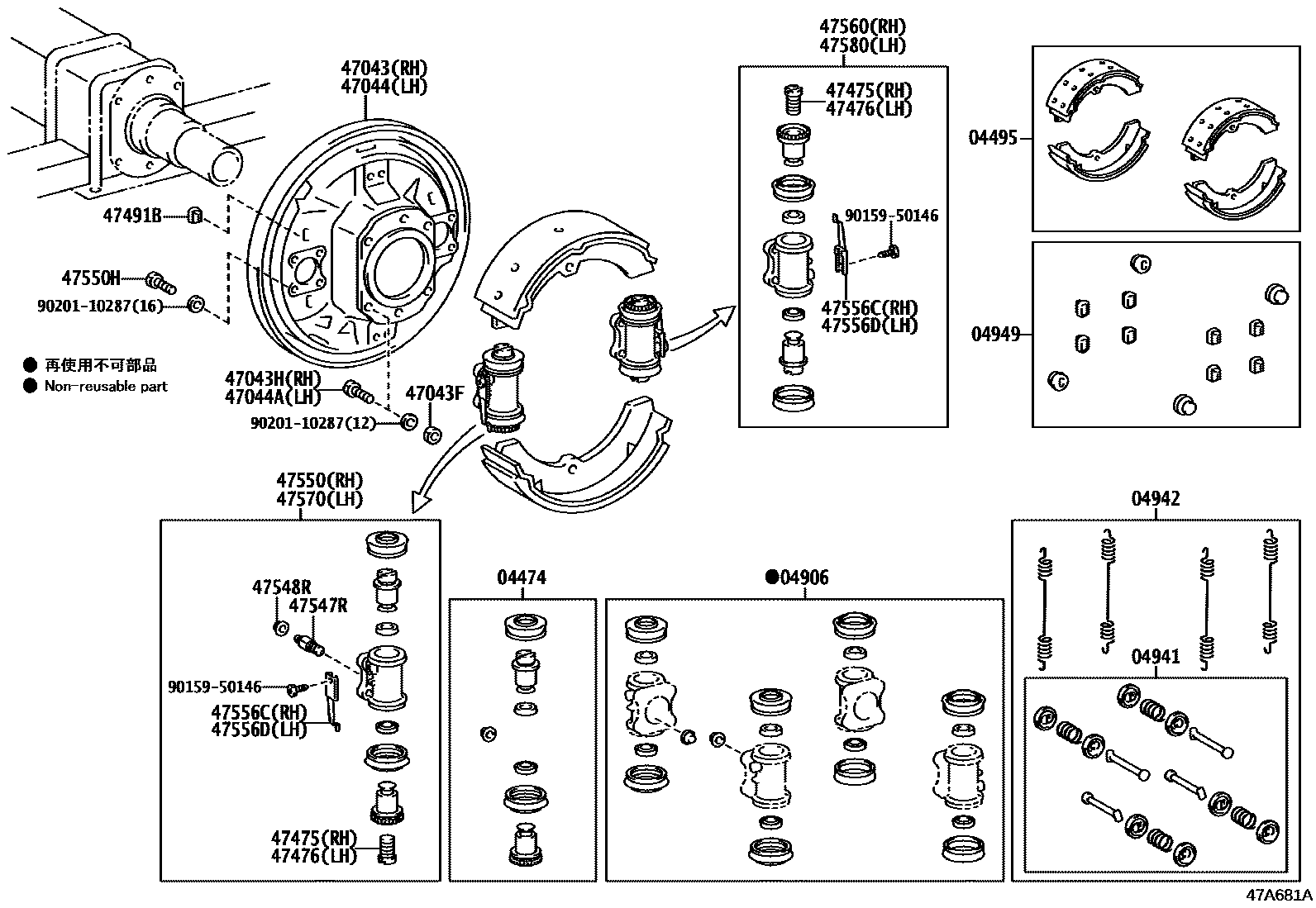

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),RH; RH
main04474-36051×2supersedes 04474-36030iGDB70,XZB70..RHD..23S..(BTN,GEN); HZB70..23S..WOC202201-202312
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),LH; FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH,LH; LH
04495SHOE KIT, REAR BRAKE
MARK AK LA514
04906CUP KIT, REAR WHEEL CYLINDER
ALGERIA SPEC&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04942SPRING KIT, REAR BRAKE
04949PLUG KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
ALGERIA SPEC&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47491BPLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)
47550HBOLT(FOR REAR WHEEL CYLINDER)
47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)
47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)
47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
main47560-37083supersedes 47560-36201iGDB70,XZB70..RHD..23S..(BTN,GEN); HZB70..23S..WOC202210-202312
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
main47580-37072supersedes 47580-36200iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN; HZB70..GEN;XZB70..LHD..(23S,29S)..WC..GEN; XZB70..GCC;XZB70..RHD..5F;HZB70..23S..GCC;GDB70,TRB60,70,XZB80..01S,02S,19S,20S,22S,23S,24S,30S202201-202209
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
main47580-37073supersedes 47580-36201iGDB70,XZB70..RHD..23S..(BTN,GEN); HZB70..23S..WOC202210-202312
FRONT WHEEL BRAKE-DISC(ROTOR = 296MM); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH
9015950146
main90159-50146
9020110287
main90201-10287
25 parts on this diagram · 2 diagrams in section
