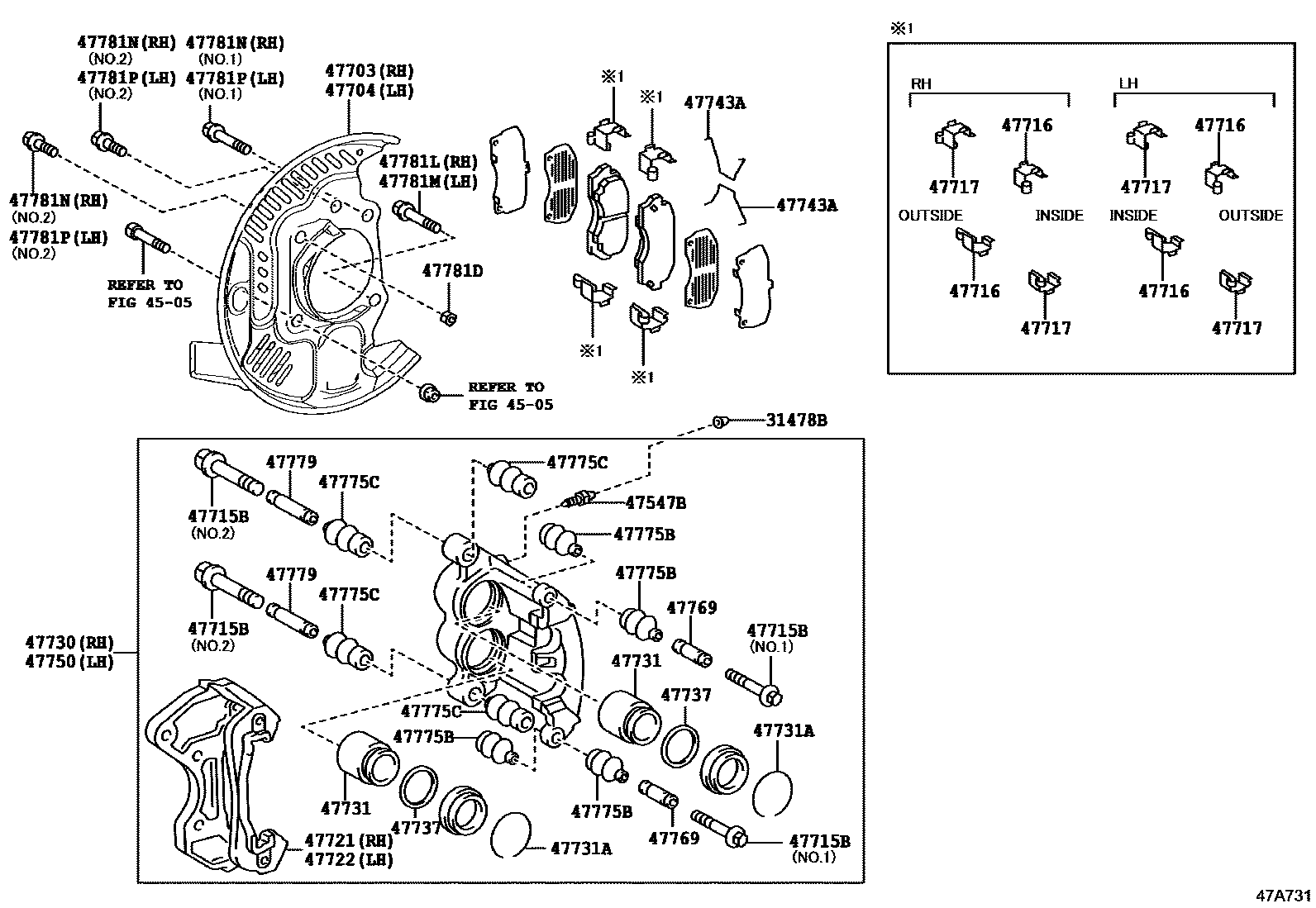

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iBZB60,XZB60201701-202512

main31478-30010iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main31478-30010iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main31478-30010iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iBZB60,XZB60201701-202512

main47547-12010iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47547-12010iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47547-12010iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-36090iBZB60,XZB60201701-202012

main47703-36090iXZB60..GCC201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47703-36090iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S,24S,30S)..(5F,6FC)201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

main47703-36100iTRB60,70..GCC202201-202512

main47703-36100iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47703-36100iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-36090iBZB60,XZB60201701-202012

main47704-36090iXZB60..GCC201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47704-36090iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S,24S,30S)..(5F,6FC)201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

main47704-36100iTRB70..WC..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47704-36100iTRB60,70..GCC202201-202512

main47704-36100iHZB70..23S..WOC202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-08992iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.1:REFER ILLUST.

main90119-08992iBB60201701-202512

NO.1:REFER ILLUST.

main90119-08992iTRB70..WC..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH,NO.1:REFER ILLUST.

main90119-08992iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC),NO.1:REFER ILLUST.

main90119-12256iHZB70..19S;XZB70..6FC;XZB70..TAIW201701-202512

NO.2:REFER ILLUST.

main90119-12256iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.2:REFER ILLUST.

main90119-12256iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH,NO.2:REFER ILLUST.

main90119-12256iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC),NO.2:REFER ILLUST.

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020iBZB60,XZB60201701-202512

main47716-36020iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47716-36020iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47716-36020iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020iHZB70..23S..WOC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47717-36020iBZB60,XZB60201701-202512

main47717-36020iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47717-36020iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-36030iTRB70..GEN201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47721-36030iTRB70..WOC202201-202412

main47721-36040iXZB60..GCC201701-202512

main47721-36040iHZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

ABS-WITH

main47721-36040iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47721-36040iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

main47721-36040iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201

ABS-WITH(ABS & VSC)

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-36030iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47722-36030iTRB70..WOC202201-202412

main47722-36040iXZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47722-36040iBZB60,XZB60201701-202512

main47722-36040iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201

ABS-WITH(ABS & VSC)

main47722-36040iHZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

ABS-WITH

main47722-36040iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-36030iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47730-36030iTRB70..WOC202201-202412

main47730-36040iHZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

ABS-WITH

main47730-36040iBZB60,XZB60201701-202512

main47730-36040iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201

ABS-WITH(ABS & VSC)

main47730-36040iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47730-36040iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47731PISTON, FRONT DISC BRAKE

main47731-36020iBZB60,XZB60201701-202512

main47731-36020iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47731-36020iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47731-36020iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main90522-61001iBZB60,XZB60201701-202512

main90522-61001iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main90522-61001iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-32010iHZB70..19S;XZB70..6FC;XZB70..TAIW201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47737-32010iTRB60,70..GCC201701-202512

main47737-32010iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47737-32010iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020iTRB70..WC..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47743-36020iBZB60,XZB60201701-202512

main47743-36020iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47743-36020iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-36030iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202201

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47750-36030iTRB70..WOC202201-202412

main47750-36040iHZB70..23S..GCC;XZB70..(19S,22S)..5F202201-202412

ABS-WITH

main47750-36040iBZB60,XZB60201701-202512

main47750-36040iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S)..(5F,6FC)201701-202201

ABS-WITH(ABS & VSC)

main47750-36040iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47750-36040iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030iBZB60,XZB60201701-202512

main47769-36030iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47769-36030iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47769-36030iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47775BBOOT, BUSH DUST, NO.1

main47775-36040iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

main47775-36040iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47775-36040iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47775-36040iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47775CBOOT, BUSH DUST, NO.2

main47775-36050iBZB60,XZB60201701-202512

main47775-36050iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47775-36050iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47775-36050iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010iBZB60,XZB60201701-202512

main47779-36010iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main47779-36010iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH

main47779-36010iXZB70..RHD..23S..GEN202501

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)

47781DNUT(FOR DUST COVER SETTING)

main94130-01602iBZB60,XZB60201701-202512

main94130-01602iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main94130-01602iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S,24S,30S)..(5F,6FC)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

47781LBOLT(FOR STEERING KNUCKLE ARM TO DUST COVER RH)

main90105-16044iHZB70..23S..WOC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

main90105-16044iBZB60,XZB60201701-202512

main90105-16044iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

47781MBOLT(FOR STEERING KNUCKLE ARM TO DUST COVER LH)

main90105-16044iTRB70..WOC;HZB70..23S..GCC;XZB70..(19S,22S)..5F201701-202512

main90105-16044iTRB70..WC..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM)

main90105-16044iTRB70..WC..GEN;XZB70..RHD..29S;XZB70..23S..(GCC,SA);GDB60,TRB60,70..6F,6FC;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)

47781NBOLT(FOR STEERING KNUCKLE TO DUST COVER RH)

main90105-16044iHZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202512

NO.1:REFER ILLUST.

main90105-16044iHZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.1:REFER ILLUST.

main90105-16044iHZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM),NO.1:REFER ILLUST.

main90105-16045iTRB60,70..GCC201701-202512

NO.2:REFER ILLUST.

main90105-16045iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.2:REFER ILLUST.

main90105-16045iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S,24S,30S)..(5F,6FC)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM),NO.2:REFER ILLUST.

47781PBOLT(FOR STEERING KNUCKLE TO DUST COVER LH)

main90105-16044iBB60201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.1:REFER ILLUST.

main90105-16044iXZB70,80..4FC;BZB70,XZB70..(01S,22S)..5F..STD201701-202512

NO.1:REFER ILLUST.

main90105-16044iGDB70,XZB70..RHD..23S..(BTN,GEN)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM),NO.1:REFER ILLUST.

main90105-16045iXZB70..RHD..23S..GEN201701-202512

NO.2:REFER ILLUST.

main90105-16045iXZB60..GCC201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 296MM),NO.2:REFER ILLUST.

main90105-16045iXZB70..GCC;HZB70..23S..GCC;XZB70..RHD..5F..(GEN,SA);TRB60,70,XZB80..(01S,19S,20S,23S,24S,30S)..(5F,6FC)201701-202312

FRONT WHEEL BRAKE-DISC(ROTOR = 321MM),NO.2:REFER ILLUST.

25 parts on this diagram · 2 diagrams in section
