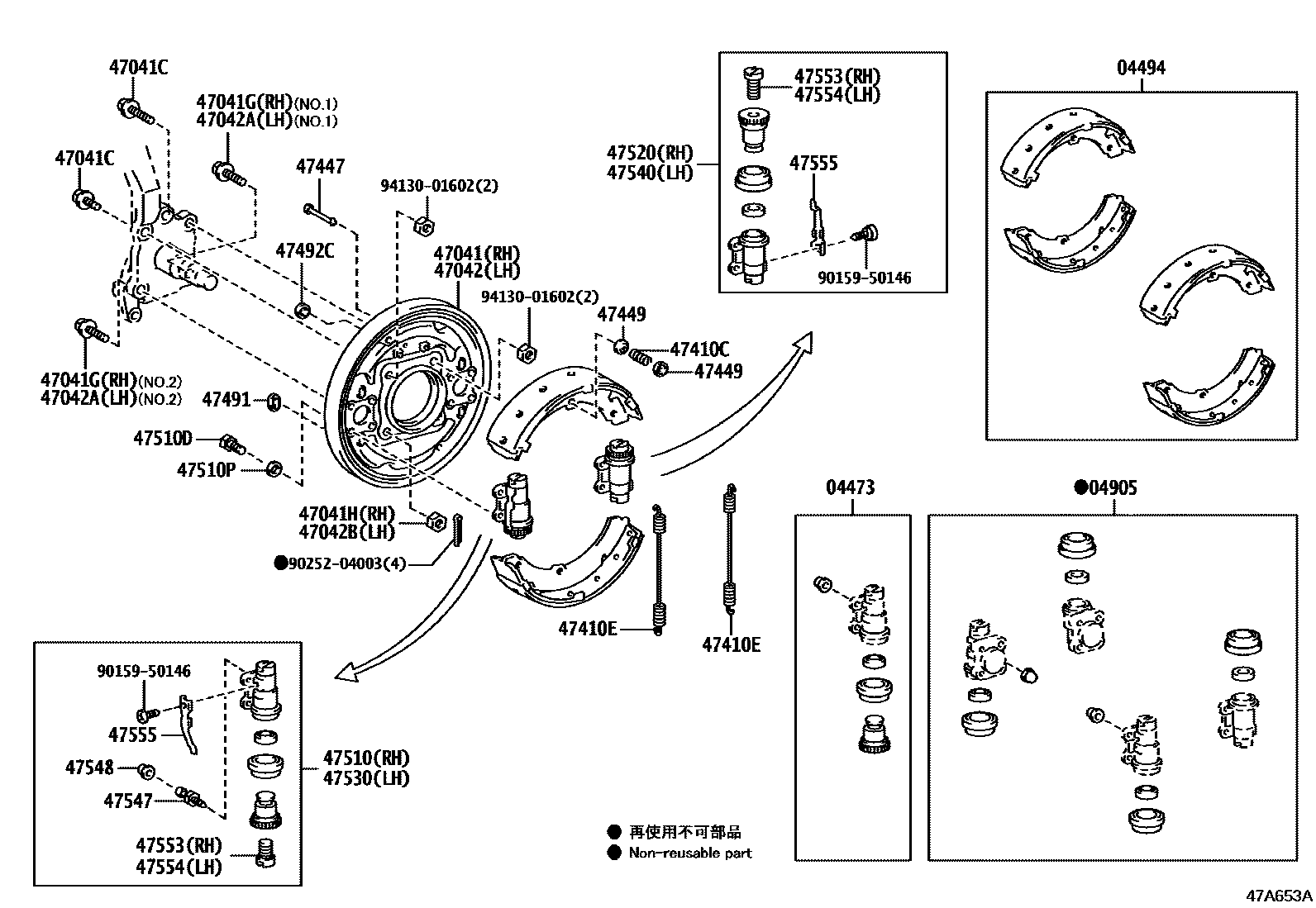

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04473CYLINDER KIT, FRONT WHEEL

main04473-36030iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

RH

main04473-36040iBB60201701-202312

LH

04494SHOE KIT, FRONT BRAKE

main04494-36320iBB60201701-202312

MARK NBK LN519

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36140iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202312

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-36181iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

47041CBOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING)

main90105-16044iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

*16-1.5PX60-26.5

main90105-16045iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202312

*16-1.5PX35.5-26.5

47041GBOLT(FOR BRAKE BACKING PLATE FRONT RH)

main90102-16001iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

NO.1:REFER ILLUST.

main90102-16002iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

NO.2:REFER ILLUST.

47041HNUT(FOR BRAKE BACKING PLATE FRONT RH)

main94142-61600iBB60201701-202312

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-36181iBB60201701-202312

47042ABOLT(FOR BRAKE BACKING PLATE FRONT LH)

main90102-16001iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

NO.1:REFER ILLUST.

main90102-16002iHZB60,70..GEN;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

NO.2:REFER ILLUST.

47042BNUT(FOR BRAKE BACKING PLATE FRONT LH)

main94142-61600iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202312

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-20012iBB60201701-202312

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90507-29006iHZB60;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..(23S,29S)..WC..GEN201701-202312

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-36030iBB60201701-202312

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iBB60201701-202312

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36020iBB60201701-202312

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47492-28010iBB60201701-202312

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36170iBB60201701-202209

main47510-36171iHZB70..23S..WOC202210-202312

47510DBOLT(FOR FRONT WHEEL CYLINDER)

main90101-10127iBB60201701-202312

47510PWASHER(FOR FRONT WHEEL CYLINDER)

main90201-10287iBB60201701-202312

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36180iBB60201701-202209

main47520-36181iHZB70..23S..WOC202210-202312

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36170iBB60201701-202209

main47530-36171iHZB70..23S..WOC202210-202312

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36180iBB60201701-202209

main47540-36181iHZB70..23S..WOC202210-202312

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-27020iBB60201701-202312

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iBB60201701-202312

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-36060iBB60201701-202312

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-36060iBB60201701-202312

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-36040iBB60201701-202312

9015950146

main90159-50146

9025204003

main90252-04003

9413001602

main94130-01602

30 parts on this diagram · 1 diagram in section
