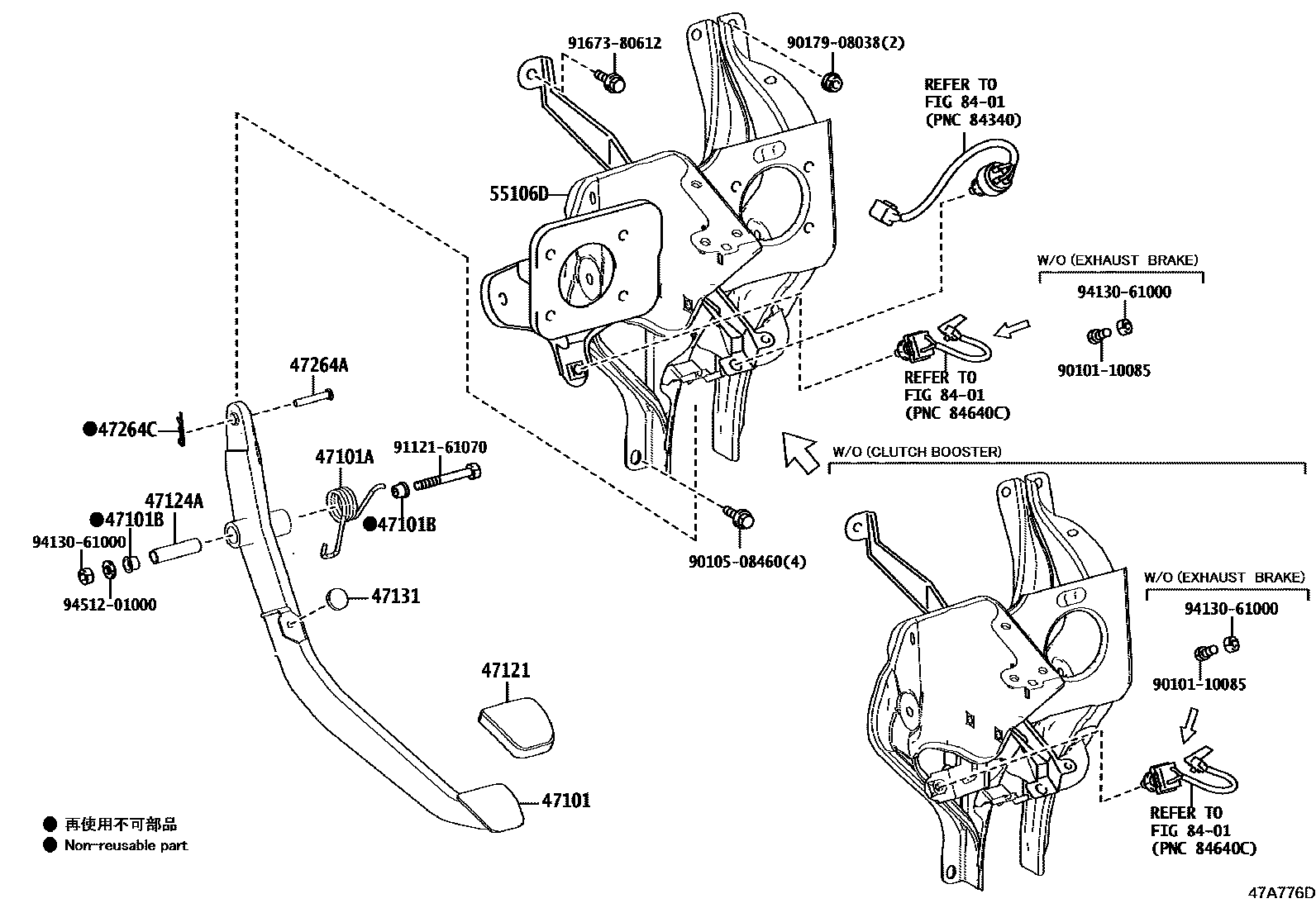

BRAKE PEDAL & BRACKET

0001 1W/O(ABS) 0002 1W(ABS)

47101PEDAL SUB-ASSY, BRAKE

main47101-36130iBZB60,XZB60201701-202412

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35322iBZB60,XZB60201701-202512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBZB60,XZB60201701-202512

47121PAD, BRAKE PEDAL

main31321-14020iBZB60,XZB60201701-202512

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBZB60,XZB60201701-202512

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iBZB60,XZB60201701-202512

47264APIN(FOR PUSH ROD)

main90240-06028iHZB70..23S..GCC;XZB70,80..(01S,20S)..5F201701-202201

ABS-WITH(ABS & VSC)

main90240-06028iXZB60..GCC201701-202512

main90240-06028iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202412

ABS-WITH

main90240-10085iBB60201701-202412

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-07027iTRB60,XZB70..(23S,25S,26S,30S)..STD..GEN201701-202201

ABS-WITH(ABS & VSC)

main90468-07027iXZB60..GCC201701-202512

main90468-07027iGDB70,XZB70..RHD..23S..(BTN,GEN)202201-202412

ABS-WITH

main90468-16142iBZB60,XZB60201701-202412

55106DBRACKET SUB-ASSY, PEDAL

main55106-36090iBZB70,XZB70..(01S,22S)..5F..STD201701-202101

main55106-36100iXZB70..RHD..DX..GEN201801-202512

main55106-36110iXZB70..LHD..(23S,29S)..WC..GEN201701-202501

main55106-36120iXZB70..GCC201701-202201

ABS-WITH(ABS & VSC)

main55106-36120iXZB70..LHD..(23S,29S)..WC201701-202412

main55106-36130iHZB60,70..RHD201701-202501

main55106-36140iHZB60,70,TRB70..LHD..GEN201701-202501

main55106-36150iHZB70..23S..GCC202101-202412

main55106-36150iTRB70..GEN201701-202201

ABS-WITH(ABS & VSC)

main55106-36160iGDB60;GDB70..DX..(GEN,SA)201908-202512

8401

9010110085

main90101-10085

9010508460

main90105-08460

9017908038

main90179-08038

9112161070

main91121-61070

9167380612

main91673-80612

9413061000

main94130-61000

9451201000

main94512-01000

17 parts on this diagram · 2 diagrams in section
