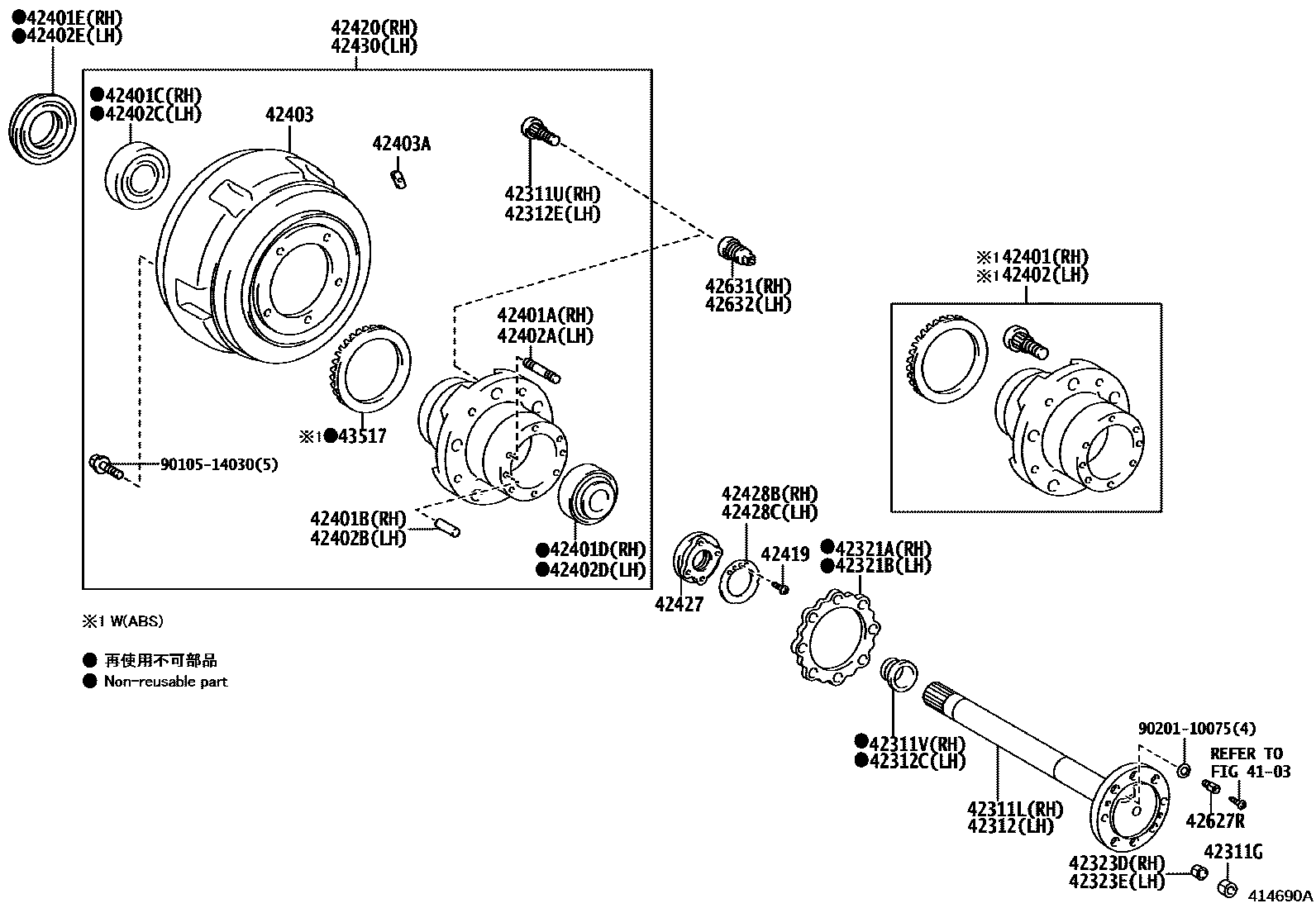

REAR AXLE SHAFT & HUB
4103DISC WHEEL & WHEEL CAP
42311GNUT(FOR REAR AXLE SHAFT)
42311LSHAFT, REAR AXLE, RH
42311UBOLT, HUB(FOR REAR AXLE RH)
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42312SHAFT, REAR AXLE, LH
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42321AGASKET, REAR AXLE SHAFT, RH
42321BGASKET, REAR AXLE SHAFT, LH
42323DWASHER, CONE (FOR REAR AXLE SHAFT RH)
42323EWASHER, CONE (FOR REAR AXLE SHAFT LH)
42401HUB, REAR AXLE, RH
42401ABOLT, STUD (FOR REAR AXLE HUB RH)
42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)
42401CBEARING (FOR REAR AXLE HUB INNER RH)
42401DBEARING (FOR REAR AXLE HUB OUTER RH)
42401ESEAL, OIL (FOR REAR AXLE HUB RH)
42402HUB, REAR AXLE, LH
42402ABOLT, STUD (FOR REAR AXLE HUB LH)
42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)
42402CBEARING (FOR REAR AXLE HUB INNER LH)
42402DBEARING (FOR REAR AXLE HUB OUTER LH)
42402ESEAL, OIL (FOR REAR AXLE HUB LH)
main90311-78001iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
42403DRUM SUB-ASSY, REAR BRAKE
42403APIECE, BALANCE (FOR REAR BRAKE DRUM)
main90937-01122iXZB70..SA;TRB60,70..6F;XZB70..LHD..DX;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..(23S,29S)..STD..WC;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
60G
42419SCREW, REAR AXLE BEARING LOCK NUT
42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
main42420-39135supersedes 42420-39145iTRB70..GEN; XZB70..LHD..(23S,29S)..WC..GEN; XZB80..6FC;TRB60,70,XZB70..GCC;XZB70..RHD..(22S,23S,29S)..(GEN,SA)201701-202201
ABS-WITH(ABS & VSC); FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC); REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
42427NUT, REAR AXLE BEARING LOCK
42428BPLATE, REAR AXLE LOCK NUT, RH
42428CPLATE, REAR AXLE LOCK NUT, LH
42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42627RBOLT, REAR WHEEL CAP SET
main42627-36020×4iXZB70..LHD..29S;TRB60,70..19S,20S,23S,24S,30S;XZB70..(19S,20S,23S)..5F..WC..(GCC,GEN);HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC); XZB70..SA201701-202201
WHEEL CAP-WITH(CENTER CAP)
42631BOLT, DOUBLE WHEEL STOP, RH
42632BOLT, DOUBLE WHEEL STOP, LH
main42632-55031×5iXZB70..SA;XZB70..29S;TRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;XZB70..LHD..DX..GEN;GDB60,HZB60,TRB70..25S,26S,30S;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201
43517ROTOR, SKID CONTROL, REAR
main43517-37010×2iHZB70..19S;XZB70..6FC;XZB70..TAIW; TRB60,XZB70..(23S,25S,26S,30S)..STD..GEN; XZB70..(23S,25S,30S)..STD..GEN201701
FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC); REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&FRONT WHEEL BRAKE-DISC(ROTOR = 321MM)&ABS-WITH(ABS & VSC)
9010514030
main90105-14030
9020110075
main90201-10075
38 parts on this diagram · 1 diagram in section
