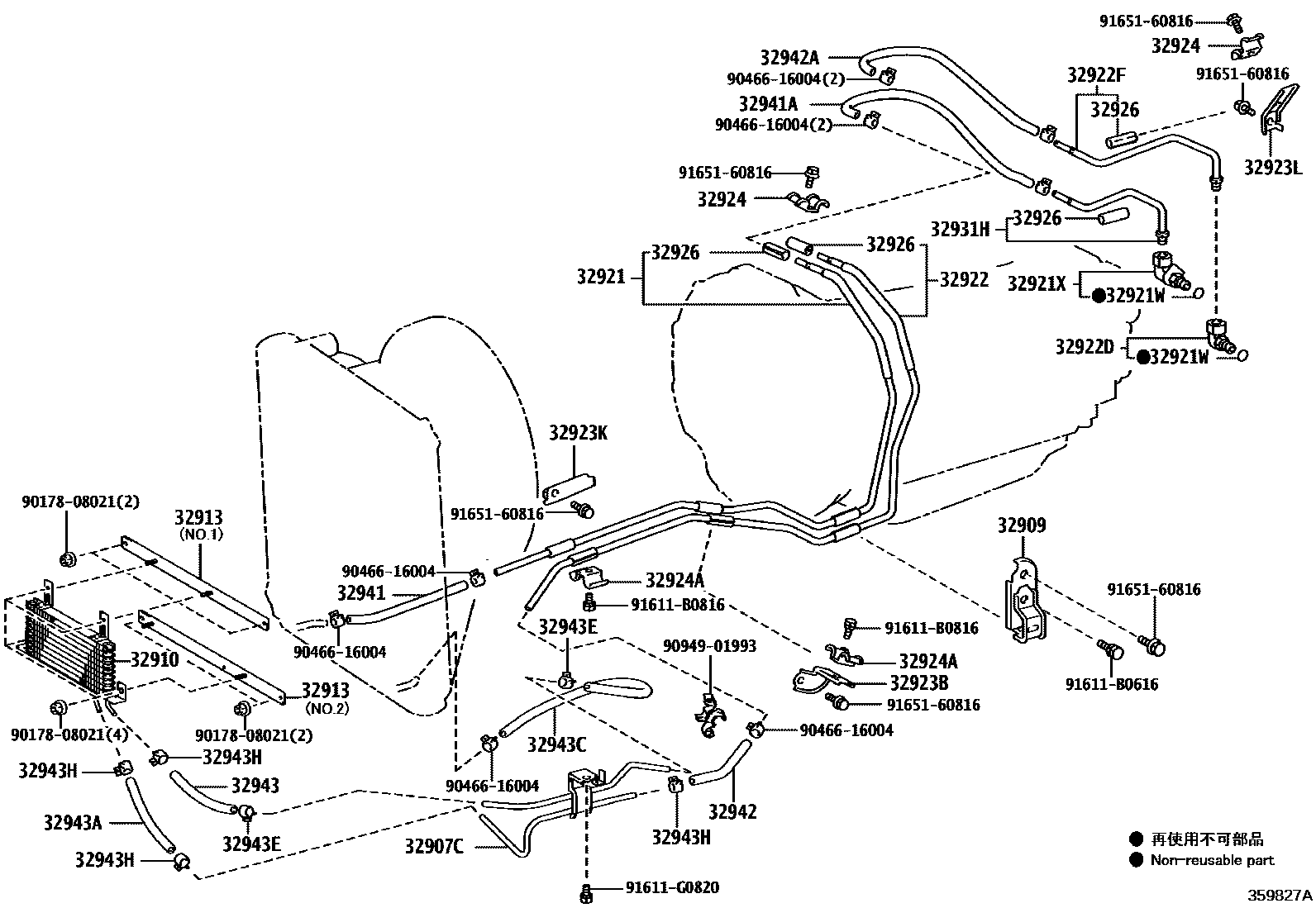

OIL COOLER & TUBE (ATM)

0001 1A444E 0002 1AK60E 0003 1A861E

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-36150iXZB70,80..4FC201701-202012

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-65010iXZB80..6FC201701-202201

32910COOLER ASSY, OIL

main32910-36060iXZB70,80..4FC201701-202012

32913BRACKET, OIL COOLER

main32913-36070iXZB70,80..4FC201701-202012

NO.2:REFER ILLUST.

main32913-36080iXZB70,80..4FC201701-202012

NO.1:REFER ILLUST.

32921TUBE, OIL COOLER INLET, NO.1

main32921-36160iXZB70,80..4FC201701-202012

main32921-36190iXZB80..6FC201908-202201

main32921-V4010iGDB60;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

32921WRING, O(FOR OIL COOLER TUBE ELBOW)

main90301-11006×2iXZB70,80..4FC201701-202012

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16040iGDB70..BTN202201-202312

main90407-20007iXZB70,80..4FC201701-202012

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-36170iXZB70,80..4FC201701-202012

main32922-36200iXZB80..6FC202201-202512

main32922-V4010iGDB70..DX..ARL;GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-20004iXZB70,80..4FC201701-202012

main90407-20011iGDB60;GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

32922FTUBE, OIL COOLER OUTLET, NO.2

main32922-36160iXZB70,80..4FC201701-202012

main32922-36180iXZB80..6FC201908-202201

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-26140iGDB70..BTN202201-202312

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-36040iXZB70,80..4FC201701-202012

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32923-65030iXZB70..6FC201701

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32923-36050iXZB80..6FC201908-202201

main32923-65040iXZB70,80..4FC201701-202012

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-V4010iGDB70..BTN202201-202312

main90462-12076×2iXZB70,80..4FC201701-202012

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12076×2iXZB70,80..4FC201701-202012

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×9iXZB70..6FC201908

L=45,ID=12

32931HTUBE, OIL COOLER INLET, NO.2

main32921-36150iXZB70,80..4FC201701-202012

main32921-36170iXZB80..6FC201908-202201

32941HOSE, OIL COOLER INLET, NO.1

main32941-V4010iGDB70..BTN202201-202312

main32941-V4020iGDB70..LHD202201

main90445-17152iXZB70,80..4FC201701-202012

32941AHOSE, OIL COOLER INLET, NO.2

main90445-17117iXZB70,80..4FC201701-202012

main90445-17182iXZB80..6FC201908-202201

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-36050iXZB70,80..4FC201701-202012

main32942-V4010iGDB60;GDB70..DX..(GEN,SA)202201

main32942-V4020iGDB70..LHD202201

main90445-17127iXZB80..6FC202201-202512

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-17074iXZB70,80..4FC201701-202012

main90445-17124iXZB80..6FC202201-202512

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32942-36060iXZB70,80..4FC201701-202012

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main90445-17100iXZB70,80..4FC201701-202012

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32941-36120iXZB70,80..4FC201701-202012

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×2iXZB70,80..4FC201701-202012

32943HCLIP, NO.4(FOR OIL COOLER HOSE)

main90466-16004iXZB70,80..4FC201701-202012

9017808021

main90178-08021

9046616004

main90466-16004

9094901993

main90949-01993

91611B0616

main91611-B0616

91611B0816

main91611-B0816

91611G0820

main91611-G0820

9165160816

main91651-60816

34 parts on this diagram · 3 diagrams in section
