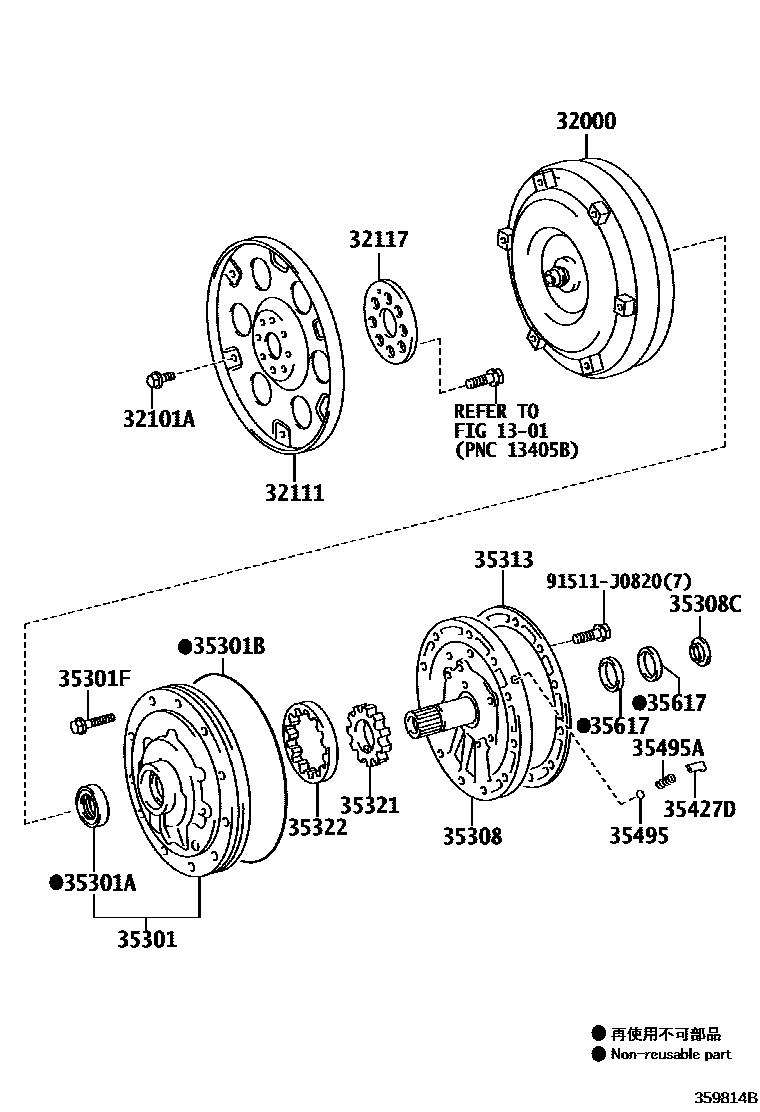

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
1301CRANKSHAFT & PISTON
32000CONVERTER ASSY, TORQUE
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.5PX12.8-9.8,SILVER WHITE
*10-1.5PX12.8-9.7,BLACK
*10-1.25PX14-9,BLACK
*10-1.25PX28-23
*10-1.25PX14-9,SILVER WHITE
32111PLATE, PUMP IMPELLER DRIVE
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX60-30
*8-1.25PX60-20
*8-1.25PX71-25
*8-1.25PX71-30
35308COVER SUB-ASSY, FRONT OIL PUMP
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
T=0.8
T=1.0
T=1.4
35313GASKET, FRONT OIL PUMP COVER
35321GEAR, FRONT OIL PUMP DRIVE
T=13.948-13.962
T=13.963-13.977
T=13.978-13.992
T=13.993-14.007
T=14.008-14.022
35322GEAR, FRONT OIL PUMP DRIVEN
T=13.948-13.962
T=13.963-13.977
T=13.978-13.992
T=13.993-14.007
T=14.008-14.022
35427DSEAT, CHECK VALVE SPRING
35495BALL, CHECK
35495ASPRING, COMPRESSION (FOR CHECK BALL)
35617RING, CLUTCH DRUM OIL SEAL
91511J0820
main91511-J0820
19 parts on this diagram · 3 diagrams in section
