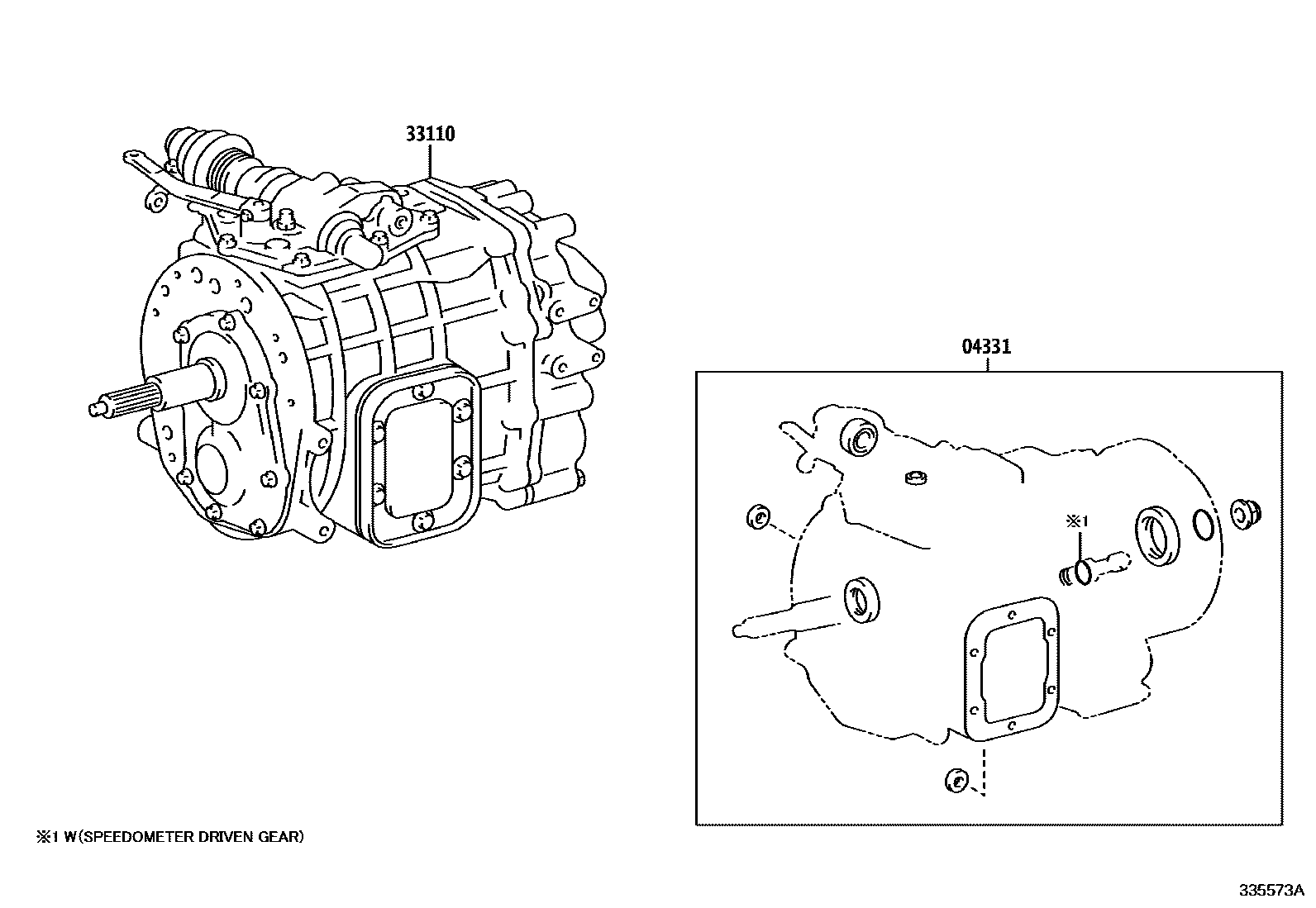

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36150supersedes 04331-36420i201701-201907

EXHAUST RETARDER-WITH; EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL; TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL

main04331-36251supersedes 04331-36410i201701-202201

EXHAUST RETARDER-WITH; EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL; REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&EXHAUST RETARDER-WITH; REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL; REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&EXHAUST RETARDER-WITH; REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL

main04331-36370i201701-202012

main04331-36410i201701-201712

main04331-36430supersedes 04331-36420i201701-202201

ABS-WITH(ABS & VSC)

main04331-36440i201701-202201

ABS-WITH(ABS & VSC); REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&ABS-WITH(ABS & VSC)

main04331-37080i202201

REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857

33110TRANSMISSION ASSY, MANUAL

main33110-36A22i201701-201712

M551

main33110-36A60i202501

M551; M551,ABS-WITH(ABS & VSC)

main33110-36A70supersedes 33110-3J641i202201-202303

M156

main33110-36B50i202501

RE60

main33110-3J660i201701-201712

M155

main33110-36A50supersedes 33110-36A22i201701-202201

M551,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625

main33110-36A80i202201

M155,ABS-WITH&EXHAUST RETARDER-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&ABS-WITH&EXHAUST RETARDER-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&ABS-WITH&EXHAUST RETARDER-WITH

main33110-36A90i202201

M155,ABS-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&ABS-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&ABS-WITH

main33110-36B00supersedes 33110-36B10i202201-202412

M155,FRONT FOG LAMP-WITH

main33110-36B20i202101-202201

M155,ABS-WITH(ABS & VSC)&EXHAUST RETARDER-WITH

main33110-36B30i202201

M155,ABS-WITH

main33110-3J360supersedes 33120-3E710i201701-201907

M152,EXHAUST RETARDER-WITH

main33110-3J381supersedes 33110-3J371i201701-201907

M152,EXHAUST RETARDER-WITH

main33110-3J390i202201

M155,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL; M155,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL

main33110-3J420i201908-202201

M155,TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL

main33110-3J431i201701-202201

M155; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL; M155,TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL

main33110-3J441supersedes 33110-3J431i201701-202201

M155,EXHAUST RETARDER-WITH; M155,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&EXHAUST RETARDER-WITH&TIRE & DISCWHEEL-700R16-12PR, 5.50F, STEEL

main33110-3J490supersedes 33110-3J480i202201

M155,EXHAUST RETARDER-WITH

main33110-3J511supersedes 33110-3J431i201701-202201

M155; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&TIRE & DISC WHEEL-700R16-12PR, 5.50F, STEEL

main33110-3J521i201701-202201

M155,EXHAUST RETARDER-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.625&EXHAUST RETARDER-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&EXHAUST RETARDER-WITH; M155,REAR DIFFERENTIAL-FINAL GEAR RATIO = 5.857&EXHAUST RETARDER-WITH&TIRE & DISCWHEEL-700R16-12PR, 5.50F, STEEL

main33110-3J720supersedes 33110-3J710i201701-202101

M155,FRONT FOG LAMP-WITH

main33120-3E490supersedes 33120-3E710i201701-201907

M152,TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL

main33120-3E500supersedes 33120-3E710i201701-201907

M152,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL

main33120-3E551supersedes 33110-3J371i201701-201907

M152,TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL

main33120-3E561supersedes 33110-3J371i201701-201907

M152,EXHAUST RETARDER-WITH&TIRE & DISC WHEEL-700R16-10PR, 5.50F, STEEL

2 parts on this diagram · 3 diagrams in section
