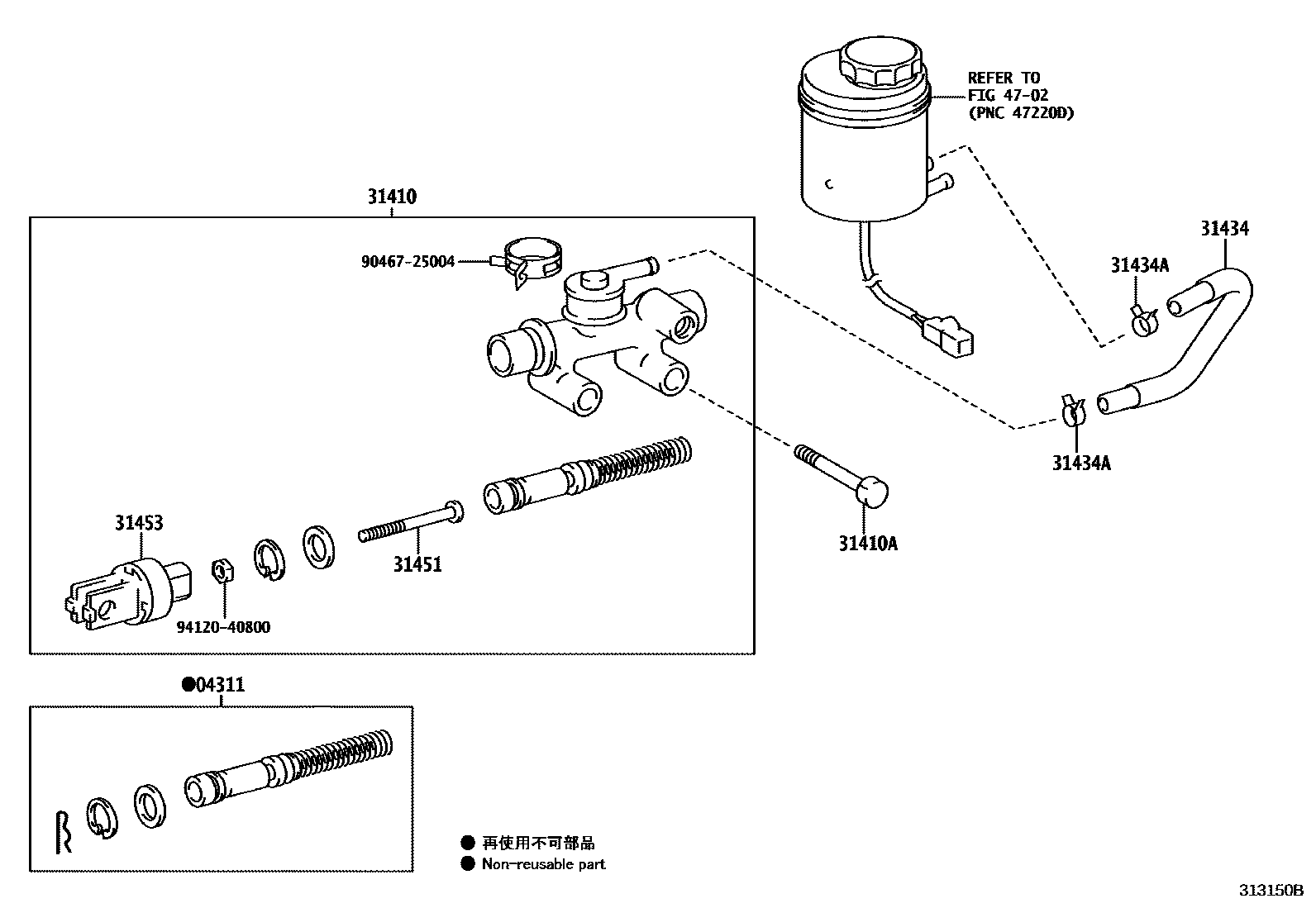

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-26050iHZB70,TRB60..19S,26S201701

main04311-36230iXZB70,80..(01S,20S)..5F202201-202512

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36092iBZB70,XZB70..(01S,22S)..5F..STD201701-202012

main31420-36130iHZB70..23S..WOC202201-202312

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90119-08108×2iHZB60,70..23S,25S,26S,30S;TRB60,70..19S,20S,23S,24S,30S201701-202201

31434TUBE, CLUTCH RESERVOIR

main31434-36270iTRB60,70..GCC202201-202303

main31434-36330iXZB70..19S202201-202412

main31434-36340iXZB70..SA;XZB70..RHD..29S202201

main31434-36350iBB60..RHD201701-201907

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-51300×2iBB60,XZB60..20S,26S201701-201907

main96138-41501×2iXZB70,80..(01S,20S)..5F202501-202512

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iTRB60,70..6F;HZB70..WC..GEN;HZB70..30S..WOC;HZB60,TRB70..26S,30S202201

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-35013iBB60201701-201907

main31404-36031iXZB70,80..(01S,20S)..5F202201-202512

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9046725004

main90467-25004

9412040800

main94120-40800

10 parts on this diagram · 4 diagrams in section
