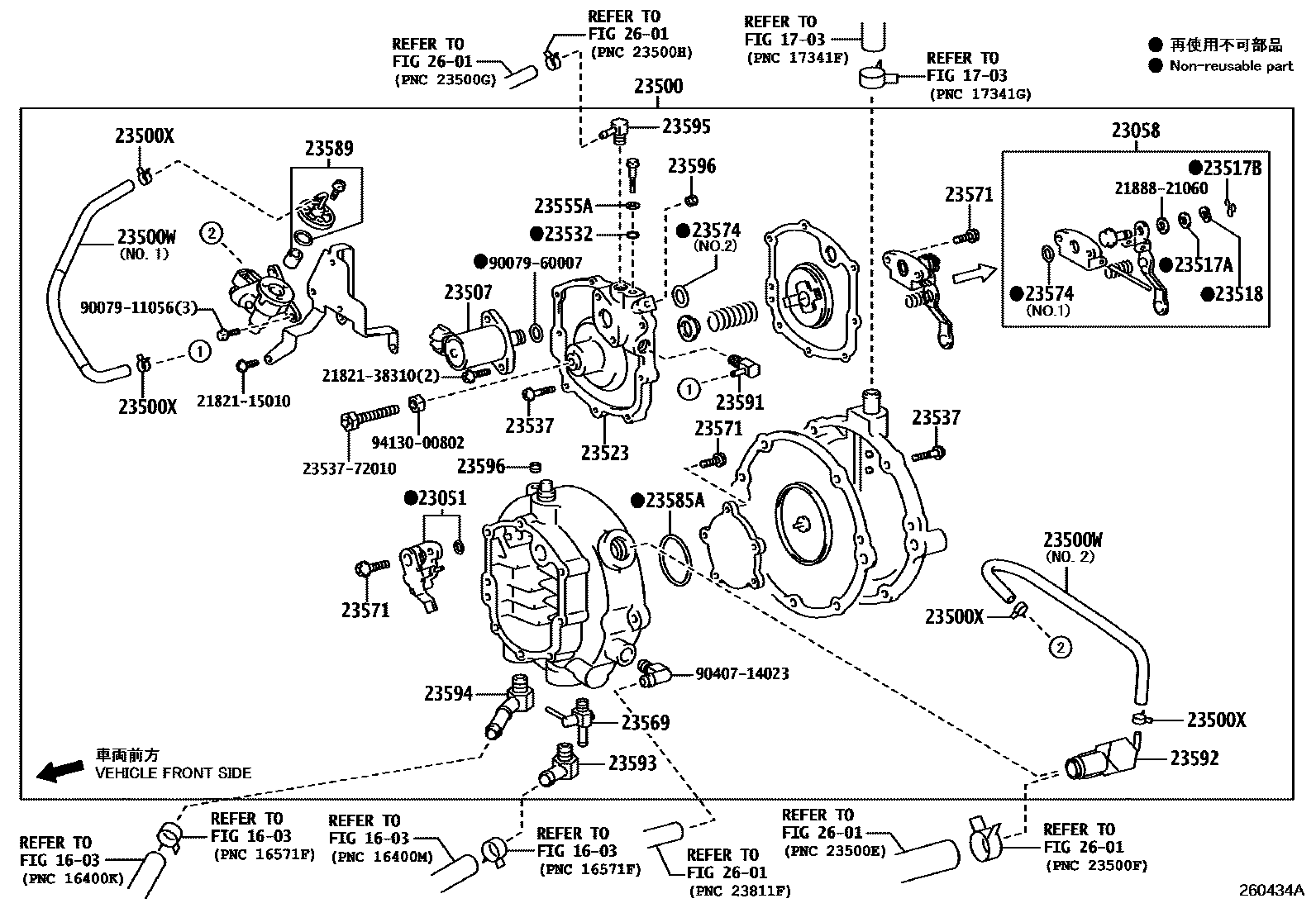

LPG OR CNG REGULATOR
1603RADIATOR & WATER OUTLET
1703AIR CLEANER
23051VALVE SUB-ASSY, 1ST
23058VALVE SUB-ASSY, 2ND
23500REGULATOR ASSY, LPG(CNG)
23500WHOSE, FUEL(FOR LPG REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23500XCLIP(FOR LPG REGULATOR FUEL HOSE)
23507VALVE SUB-ASSY, SOLENOID REGULATOR
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
23532RING, O, NO.2(FOR BULB)
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555AWASHER, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23574RING, O, NO.1(FOR BULB)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23585ARING, O(FOR PREHEATER)
23589FILTER, LPG REGULATOR
23591UNION, NO.1, FUEL
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
23594UNION, NO.4, WATER HOSE
23595UNION, NO.5
23596PLUG(FOR LPG REGULATOR BODY)
2601LPG(CARBURETOR) FUEL PIPE
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
9007911056
main90079-11056
9007960007
main90079-60007
9040714023
main90407-14023
9413000802
main94130-00802
35 parts on this diagram · 2 diagrams in section
