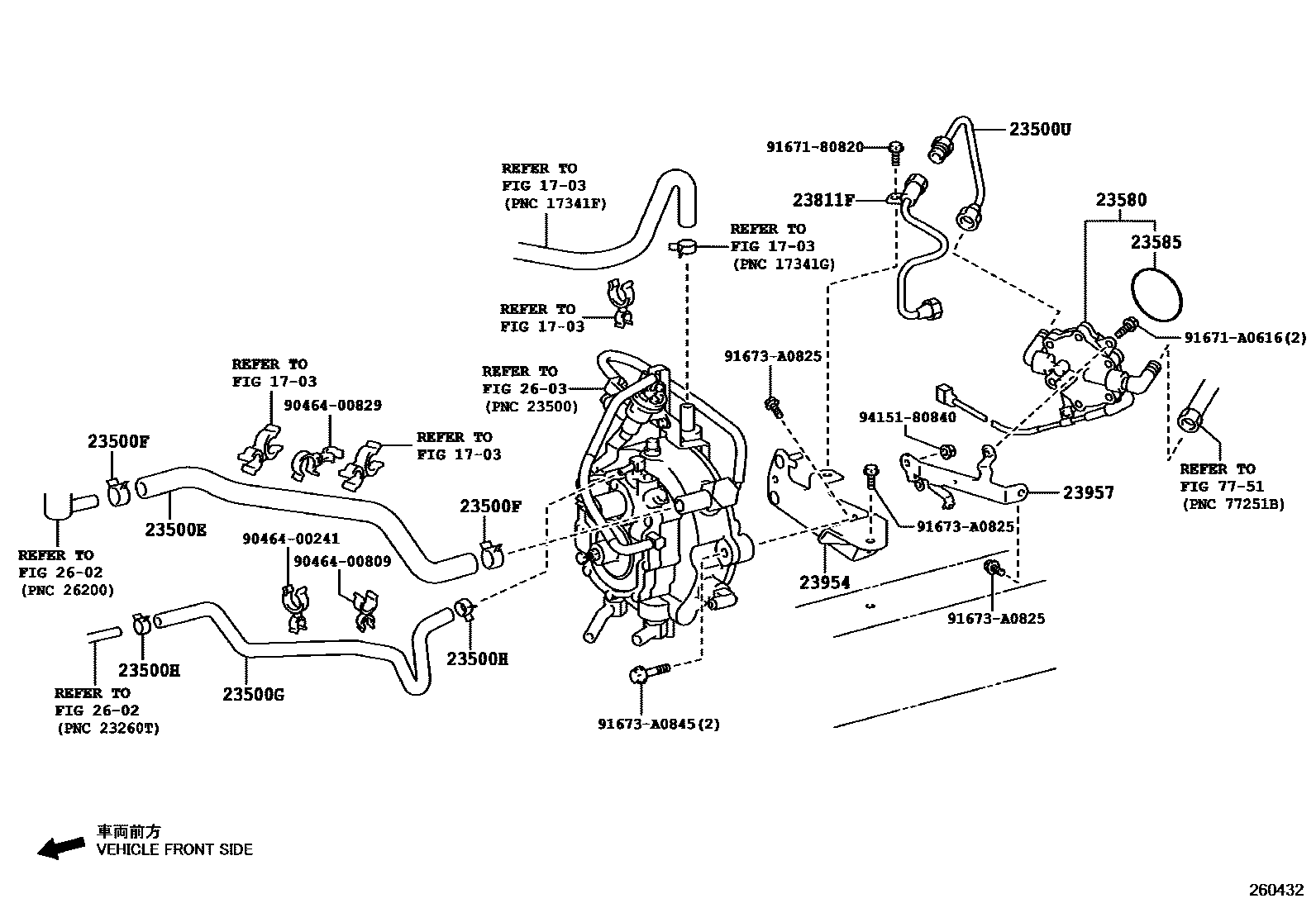

LPG(CARBURETOR) FUEL PIPE

1703AIR CLEANER

→ Go to FIG 17-03

23500EHOSE, WATER(FOR LPG REGULATOR INLET)

main23271-48010i1BZFPE..BZB60,70201701-202012

23500FCLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)

main96136-42901×2i1BZFPE..BZB60,70201701-202012

23500GHOSE, WATER(FOR LPG REGULATOR OUTLET)

main23273-48020i1BZFPE..BZB60,70201701-202012

23500HCLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)

main96137-41501×2i1BZFPE..BZB60,70201701-202012

23500UPIPE, WATER BY-PASS, NO.2(FOR LPG)

main23812-48021i1BZFPE..BZB60,70201701-202012

23580PREHEATER ASSY, LPG

main23580-48010i1BZFPE..BZB60,70201701-202012

23585RING, O(FOR PREHEATER)

main23585-72010i1BZFPE..BZB60,70201701-202012

23811FPIPE, FUEL, NO.1

main23811-48021i1BZFPE..BZB60,70201701-202012

23954BRACKET, LPG REGULATOR

main23954-48010i1BZFPE..BZB60,70201701-202012

23957STAY, LPG REGULATOR

main23957-48010i1BZFPE..BZB60,70201701-202012

2602LPG CARBURETOR

→ Go to FIG 26-02

2603LPG OR CNG REGULATOR

→ Go to FIG 26-03

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046400241

main90464-00241

9046400809

main90464-00809

9046400829

main90464-00829

9167180820

main91671-80820

91671A0616

main91671-A0616

91673A0825

main91673-A0825

91673A0845

main91673-A0845

9415180840

main94151-80840

22 parts on this diagram · 1 diagram in section
