UREA TANK & TUBE

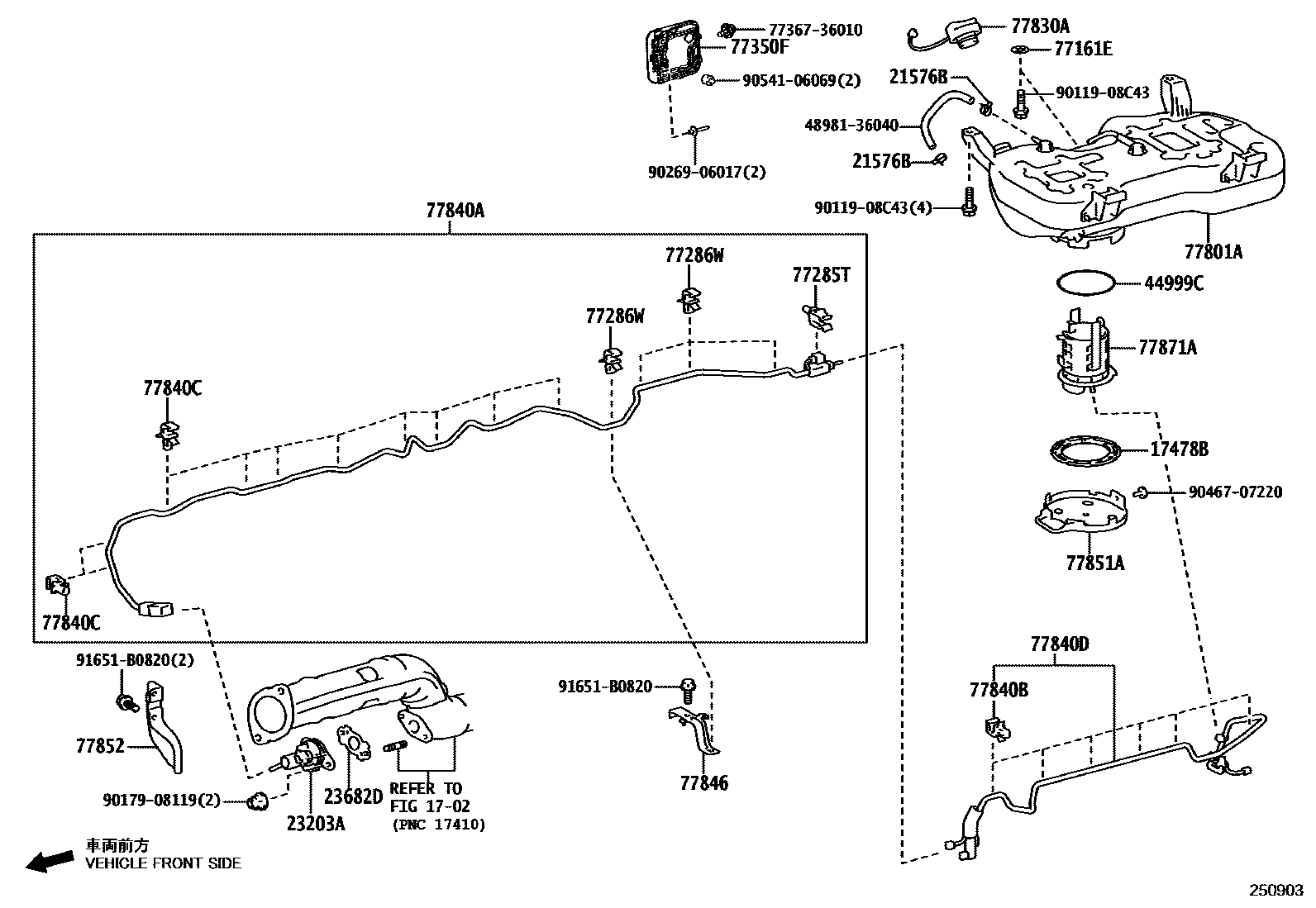

0001 1 0002 1ENGINE SIDE PIPING 0003 1UREA TANK SIDE PIPING & UREA 0004 1UREA TANK SIDE PIPING & UREA

1702EXHAUST PIPE

→ Go to FIG 17-02

17478BPLATE, LOCK

main17478-78010iN04C..XZB70..6FC..GEN201908

21576BCLIP(FOR VENTILATION HOSE)

main21576-E0200×2iN04C..XZB80..6FC201908-202201

23203AINJECTOR SET, UREA

main23203-11030i1GDFTV..GDB70..BTN202201-202312

23682DGASKET, NOZZLE HOLDER

main23682-11010i1GDFTV..GDB70..BTN202201-202312

44999CRING, O(FOR UREA PUMP)

main44999-37010iXZB80..6FC201908-202201

77161EBRACKET

main77161-36030iXZB80..6FC201908-202201

77285TCLAMP, UREA TUBE, NO.1

main77285-0K140iGDB60,70..02S,25S202201

main77285-36320iXZB70,80..(01S,20S)..5F202101-202201

77286WCLAMP, UREA TUBE, NO.2

main77286-36060×11iXZB80..6FC201908-202201

77350FLID ASSY, UREA

main77350-36901iXZB80..6FC201908-202201

77801ATANK SUB-ASSY, UREA

main77801-36010iXZB80;XZB70..20S..5F202201-202512

main77801-V4010iGDB70..20S202201-202512

77830ACAP ASSY, UREA TANK

main77830-36010iXZB80..6FC201908-202201

77840ATUBE ASSY, UREA W/HEATER

main77840-36010iXZB80..6FC201908-202201

main77840-36020iXZB70..6FC..GEN202101

main77840-V4020iGDB70..BTN202201-202312

main77840-V4030iGDB60..BTN202303

77840BCLAMP, UREA TUBE, NO.1

main77286-36060×6iGDB70..BTN202201-202312

77840CCLAMP, UREA TUBE, NO.2

main77286-V4010×9iGDB60..BTN202303

77840DTUBE ASSY, UREA W/HEATER, NO.2

main77840-36050iXZB80;XZB70..20S..5F202201-202512

main77840-V4040iGDB70..20S202201-202512

77846BRACKET, UREA TUBE, NO.1

main77846-36010iXZB80..6FC201908-202201

main77846-V4010iGDB70..BTN202201-202312

77851APROTECTOR, UREA TANK

main77851-36010iXZB80..6FC201908-202201

77852PROTECTOR, UREA TANK, NO.2

main77852-V4010iGDB70..BTN202201-202312

77871APUMP, UREA

main77871-0K020iGDB70..20S202201-202512

main77871-37010iXZB80..5F; XZB80..6FC201908-202101

SINGAPORE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main77871-37020iXZB80;XZB70..20S..5F202201-202512

4898136040TUBE, HEIGHT CONTROL, NO.1

main48981-36040

7736736010STOPPER, FUEL FILLER OPENING LID

main77367-36010

9011908C43

main90119-08C43

9017908119

main90179-08119

9026906017

main90269-06017

9046707220

main90467-07220

9054106069

main90541-06069

91651B0820

main91651-B0820

28 parts on this diagram · 4 diagrams in section
