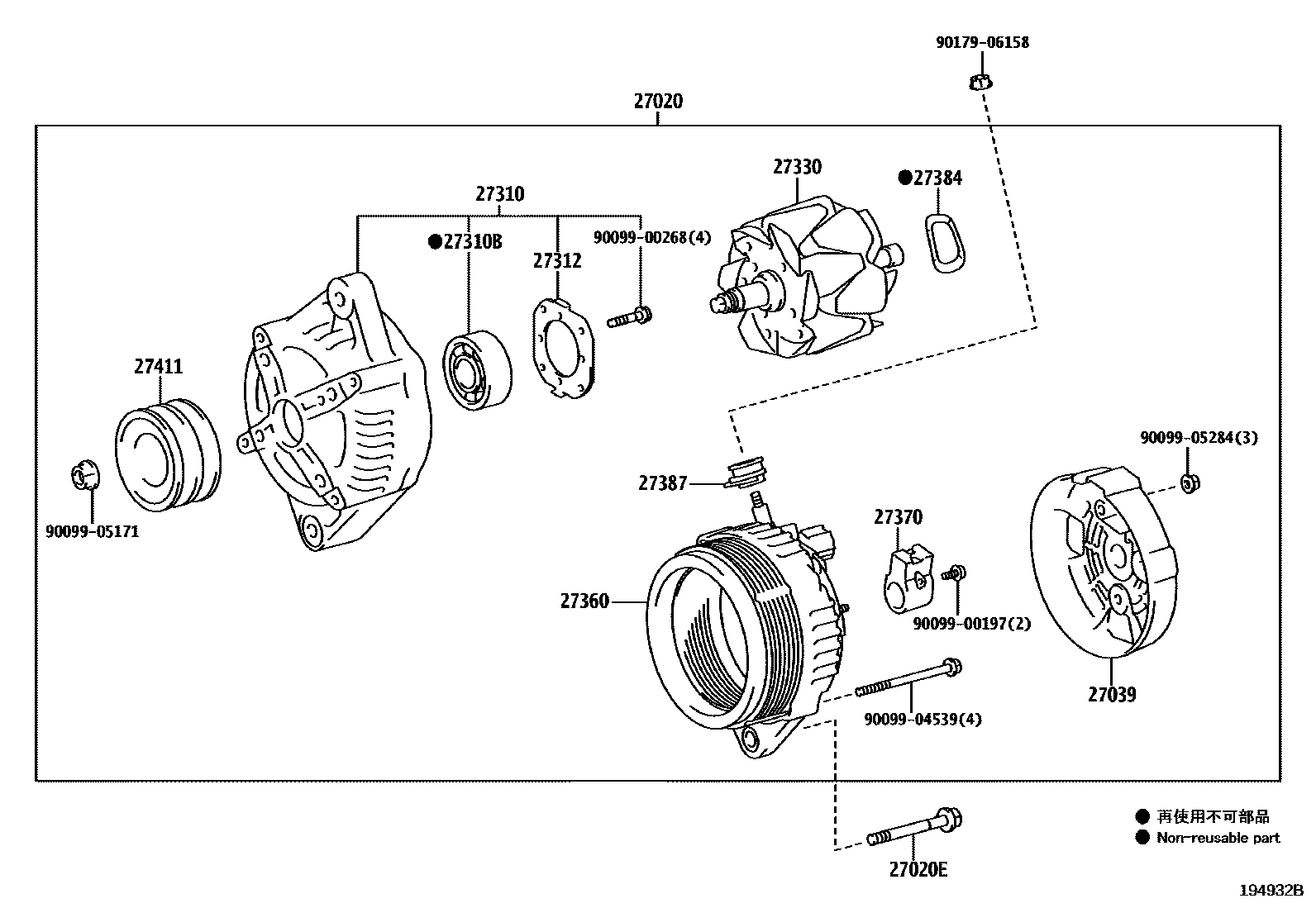

ALTERNATOR

0001 112V 130A 0002 112V 100A 0003 112V 130A 0004 112V 130A,150A 0005 112V 80A 0006 112V 100A 0007 112V 150A

27020ALTERNATOR ASSY

main27060-11410i1GDFTV..GDB70..BTN202201-202512

12V 150A

main27060-17270i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202412

12V 130A

main27060-58420i1BZFPE..BZB60201701-202012

12V 100A

main27060-58500i14B..BB60201701-201907

12V 130A

main27060-75560i2TRFE..TRB70..WOC201701-202304

12V 80A

sub27060-75561

main27060-75561i2TRFE..TRB70..WOC202305-202412

12V 80A

main27060-75570i2TRFE..TRB60,70..GCC201701-202303

12V 100A

main27060-78260iN04C..XZB60201701-202412

12V 130A

main27060-78320iN04C..XZB80..6FC201908-202512

12V 150A

27020EBOLT(FOR ALTERNATOR)

main90105-10397i1HZ..HZB70..19S201701-202412

main90148-10001i14B..BB60201701-202012

mainSZ10510067iN04C..XZB80;N04C..XZB70..20S..5F201701-202512

27039COVER, ALTERNATOR REAR END

main27039-11350i1GDFTV..GDB70..BTN202201-202512

main27039-21211i2TRFE..TRB70..WOC202305-202412

main27039-37220i2TRFE..TRB60,70..19S,20S,23S,30S201701-202303

main27039-47310i2TRFE..TRB70..WOC201701-202305

main27039-50430iN04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA);N04C,1HZ..HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC)201701-202512

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11350i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main27310-17270i1HZ..HZB70..23S..GCC201701-202412

main27310-58490i14B..BB60201701-201907

main27310-75510i2TRFE..TRB60..WC..GEN201701-202303

main27310-75520i2TRFE..TRB60..WOC201701-202305

main27310-75521i2TRFE..TRB70..WOC202305-202412

main27310-EV030iN04C..XZB70..RHD..23S..GEN201701-202512

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iN04C..XZB60201701-202512

main90099-10227i2TRFE..TRB70..WOC201701-202412

27312PLATE, RETAINER

main27312-72100iN04C..XZB70,80..4FC;N04C..XZB70..5F..ARL201701-202512

27330ROTOR ASSY, ALTERNATOR

main27330-20070i1BZFPE..BZB60201701-202012

main27330-21211i2TRFE..TRB70..WOC202305-202412

main27330-33090iN04C,14B..BB60,XZB60..20S,26S201701-202412

main27330-47310i2TRFE..TRB60..WOC201701-202305

main27330-47330i2TRFE..TRB60,70..GCC201701-202303

main27330-58460iN04C..XZB80..6FC201908-202512

27360COIL ASSY, ALTERNATOR

main27360-11350i1GDFTV..GDB70..BTN202201-202512

main27360-17270i1HZ..HZB70..23S..GCC201701-202412

main27360-58490i14B..BB60201701-201907

main27360-75520i2TRFE..TRB70..WOC201701-202305

sub27360-75521

sub27039-21211

main27360-75521i2TRFE..TRB70..WOC202305-202412

main27360-75530i2TRFE..TRB60,70..GCC201701-202303

main27360-78260iN04C..XZB80;N04C..XZB70..20S..5F201701-202512

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GDFTV..GDB70..BTN202201-202512

main27370-58460i2TRFE..TRB60,70..19S,20S,23S,24S,30S;N04C..XZB70..(19S,20S,22S,23S,29S)..5F..WC..(GCC,GEN,SA);N04C,1HZ..HZB60,70,XZB80..(01S,23S,25S,26S,30S)..(5F,6FC)201701-202512

main27370-75060i1BZFPE..BZB70201701-202012

27384WASHER

main27384-50030i1HZ..HZB70..23S..GCC;N04C..XZB70..(19S,22S)..5F201701-202512

27387INSULATOR, TERMINAL

main27387-20130iN04C..XZB70..RHD..23S..GEN201701-202512

main27387-47310i2TRFE..TRB70..WOC201701-202412

27411PULLEY, ALTERNATOR

main27411-17030i1HZ..HZB70..19S201701-202412

main27411-31200i2TRFE..TRB70..WOC201701-202305

sub27411-31551

main27411-31551i2TRFE..TRB70..WOC202305-202412

main27411-58080i14B..BB60201701-201907

main27411-58440i1BZFPE..BZB60201701-202012

main27411-78240iN04C..XZB80;N04C..XZB70..20S..5F201908-202512

main27411-78260iN04C..XZB70..SA;N04C..XZB70..LHD..DX;N04C..XZB70..(23S,29S)..STD..WC201701-202412

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9017906158

main90179-06158

18 parts on this diagram · 7 diagrams in section
