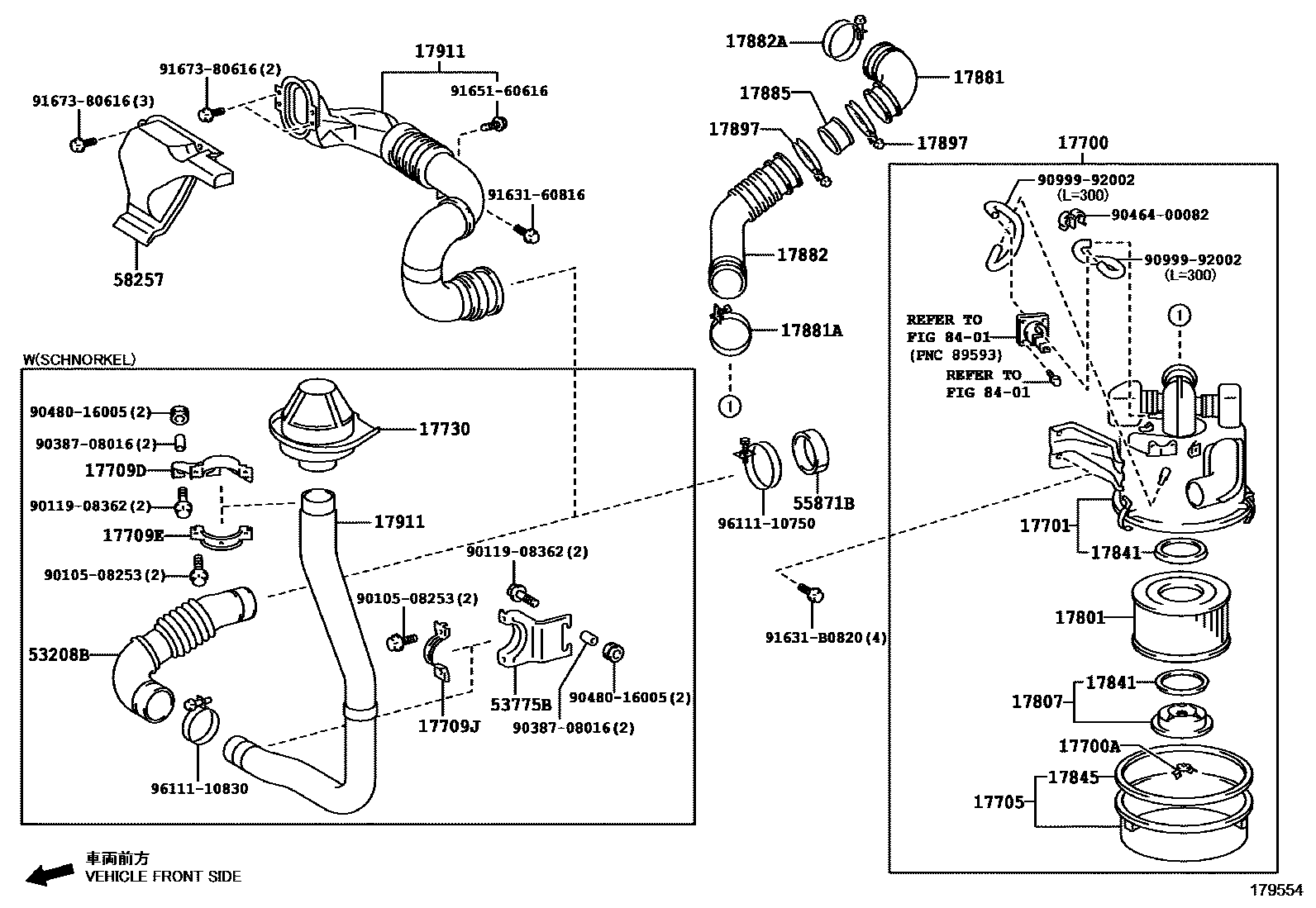

AIR CLEANER

0001 1 0002 1 0003 1 0004 1SNORKEL(LOADING ON BOARD) 0005 1AIR-COOLED TYPE INTERCOOLER 0006 1WATER-COOLED TYPE INTERCOOLER0007 1 0008 1 0009 1EURO 5 0010 1EURO 3 0011 1EURO 4 OR EURO 6 0012 1EURO 5 0013 1EURO 3 OR EURO 4 OR EURO 6 0014 1EURO 3 OR EURO 5 OR EURO 6

17700CLEANER ASSY, AIR

main17700-17261i1HZ..HZB70..19S201701-202412

main17700-48153i1BZFPE..BZB60,70201701-202012

main17700-58691i14B..BB60201701-201907

main17700-75490i2TRFE..TRB70..WOC201701-202412

main17700-78310iN04C..XZB70,80..(01S,20S)..5F201701-202101

main17700-78410iN04C..XZB70..SA;N04C..XZB70..LHD..DX;N04C..XZB70..(23S,29S)..STD..WC201701-202512

main17700-V4010i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

17700ANUT, WING(FOR AIR CLEANER)

main90175-06019i1BZFPE..BZB60,70201701-202012

NO.2:REFER ILLUST.

main90175-08008iN04C..XZB70..(19S,22S)..5F201701-202512

main90175-08008i1BZFPE..BZB60,70201701-202012

NO.1:REFER ILLUST.

17701CASE SUB-ASSY, AIR CLEANER

main17701-17160i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main17701-58360i14B..BB60201701-201907

17705CAP SUB-ASSY, AIR CLEANER

main17705-17180i1HZ..HZB70..19S201701-202512

main17705-48090i1BZFPE..BZB60,70201701-202012

main17705-58360i2TRFE..TRB60,70..19S,20S,23S,24S,30S201701-202412

main17705-V4010i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

17709DBRACKET, AIR CLEANER INLET, NO.1

main53772-36060i1HZ..HZB70..23S..WOC202201-202312

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main53772-36060i1HZ..HZB70..23S..WOC202201-202312

COOL AIR INTAKE-SNORKEL

main53772-36060iN04C..XZB70..RHD..29S201801-202201

17709EBRACKET, AIR CLEANER INLET, NO.2

main53773-36010i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC202201-202312

COOL AIR INTAKE-SNORKEL

main53773-36010iN04C..XZB70..RHD..29S201801-202201

NO.1

main53773-36010iN04C..XZB70..RHD..23S..GEN202201-202312

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main53773-36010iN04C..XZB70..RHD..29S202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD),NO.1

main53773-36010iN04C..XZB70..RHD..29S202201

COOL AIR INTAKE-SNORKEL,NO.1

17709JBRACKET, AIR CLEANER INLET, NO.3

main53773-36021iN04C..XZB70..LHD..(23S,29S)..WC..GEN202201-202312

COOL AIR INTAKE-SNORKEL

main53773-36021i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC202201-202312

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main53773-36021iN04C..XZB70..RHD..29S201801-202201

17730PRECLEANER ASSY, AIR W/HOSE

main17730-66010i2TRFE..TRB70..WC..GEN202201-202312

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main17730-66010i2TRFE..TRB70..WC..GEN202201-202312

COOL AIR INTAKE-SNORKEL

main17730-66010iN04C..XZB70..RHD..29S201801-202201

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-30070i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main17801-56050i1BZFPE..BZB60,70201701-202012

main17801-58010i2TRFE..TRB60..GEN201701-202412

main17801-58040iN04C..XZB70,80..4FC;N04C..XZB70..5F..ARL201701-202512

main17801-61030i1HZ..HZB70..23S..WOC201701-202412

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56020i2TRFE..TRB70..WOC201701-202412

main17807-58020iN04C..XZB70..(19S,22S)..5F201701-202512

17841GASKET, FILTER ELEMENT

main17841-44030i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

main17841-68010iN04C..XZB70..(19S,22S)..5F201701-202512

17845GASKET, AIR CLEANER CAP

main17845-48020i1BZFPE..BZB60,70201701-202012

main17845-56020i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN201701-202412

main17845-58010i1HZ..HZB70..19S201701-202512

17881HOSE, AIR CLEANER, NO.1

main17881-17070i1HZ..HZB70..23S..WOC201701-202412

main17881-48061i1BZFPE..BZB60,70201701-202012

main17881-58210i14B..BB60201701-201907

main17881-75230i2TRFE..TRB60,70..GCC201701-202412

main17881-V4010i1GDFTV..GDB70..BTN202201-202512

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i14B..BB60201701-202012

main96111-10800i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)201701-202512

17882HOSE, AIR CLEANER, NO.2

main17882-17021i1HZ..HZB70..19S201701-202412

main17882-58130i14B..BB60201701-201907

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750i1BZFPE..BZB60,70201701-202012

main96111-10780i1HZ..HZB70..23S..WOC201701-202412

NO.1

main96111-10900i1HZ..HZB70..19S201701-202412

NO.2

main96111-10900i14B..BB60201701-201907

17885PIPE, AIR CLEANER

main17885-17010i14B..BB60201701-202412

17897CLAMP, HOSE(FOR AIR CLEANER)

main96111-10780i14B..BB60201701-202412

17911DUCT, COOL AIR INTAKE, NO.1

main52810-36020i14B..BB60201701-201907

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main52810-36020i14B..BB60201701-201907

COOL AIR INTAKE-SNORKEL

main52810-36020i1BZFPE..BZB60,70201701-202012

main52810-36030i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC201701-202201

COOL AIR INTAKE-SNORKEL

main52810-36030iN04C..XZB70..TAIW201701-202412

main52810-36030i1HZ..HZB60,70..23S,25S,26S,30S201701-202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main52810-36040iN04C..XZB70..22S..GEN201701-202512

main52810-36040iN04C..XZB80..6FC;N04C..XZB70..RHD..5F..DX;N04C..XZB70..LHD..(19S,23S,29S)..WC201701-202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main52810-36040iN04C..XZB80..6FC;N04C..XZB70..RHD..5F..DX;N04C..XZB70..LHD..(19S,23S,29S)..WC201701-202201

COOL AIR INTAKE-SNORKEL

main52810-36040iN04C..XZB70..SA;N04C..XZB70..LHD..(23S,29S)..WC..GEN202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD),UN-R48

main52810-36040iN04C..XZB70..SA;N04C..XZB70..LHD..(23S,29S)..WC..GEN202201

COOL AIR INTAKE-SNORKEL,UN-R48

53208BDUCT SUB-ASSY, COOL AIR INTAKE, NO.2

main53208-36041iXZB70..RHD..29S201801-202201

main53208-36041iXZB70..RHD..23S..GEN202201-202312

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main53208-36041iXZB70..RHD..23S..GEN202201-202312

COOL AIR INTAKE-SNORKEL

53775BBRACKET, COOL AIR INTAKE DUCT MOUNTING

main53775-36031iHZB60,70..RHD202201

COOL AIR INTAKE-SNORKEL

main53775-36031iXZB70..RHD..29S201801-202312

main53775-36031iXZB70..RHD..29S202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

55871BSEAL, AIR DUCT

main55871-36020iXZB60201701-202512

main55871-36020iBB60201701-202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

58257PLATE, AIR CLEANER HOUSE

main58257-36050iHZB60,70..23S,25S,26S,30S201701-202201

COOL AIR INTAKE-SNORKEL

main58257-36050iXZB60201701-202012

main58257-36050iXZB70..LHD..GEN201701-202201

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main58257-36070iBB60201701-201907

COOL AIR INTAKE-SNORKEL(LOADING ON BOARD)

main58257-36070iBB60201701-201907

COOL AIR INTAKE-SNORKEL

main58257-36070iBZB60,70201701-202012

main58257-V4010iXZB70..GCC202201-202512

8401

9010508253

main90105-08253

9011908362

main90119-08362

9038708016

main90387-08016

9046400082

main90464-00082

9048016005

main90480-16005

9099992002

main90999-92002

9163160816

main91631-60816

91631B0820

main91631-B0820

9165160616

main91651-60616

9167380616

main91673-80616

9611110750

main96111-10750

9611110830

main96111-10830

36 parts on this diagram · 14 diagrams in section
