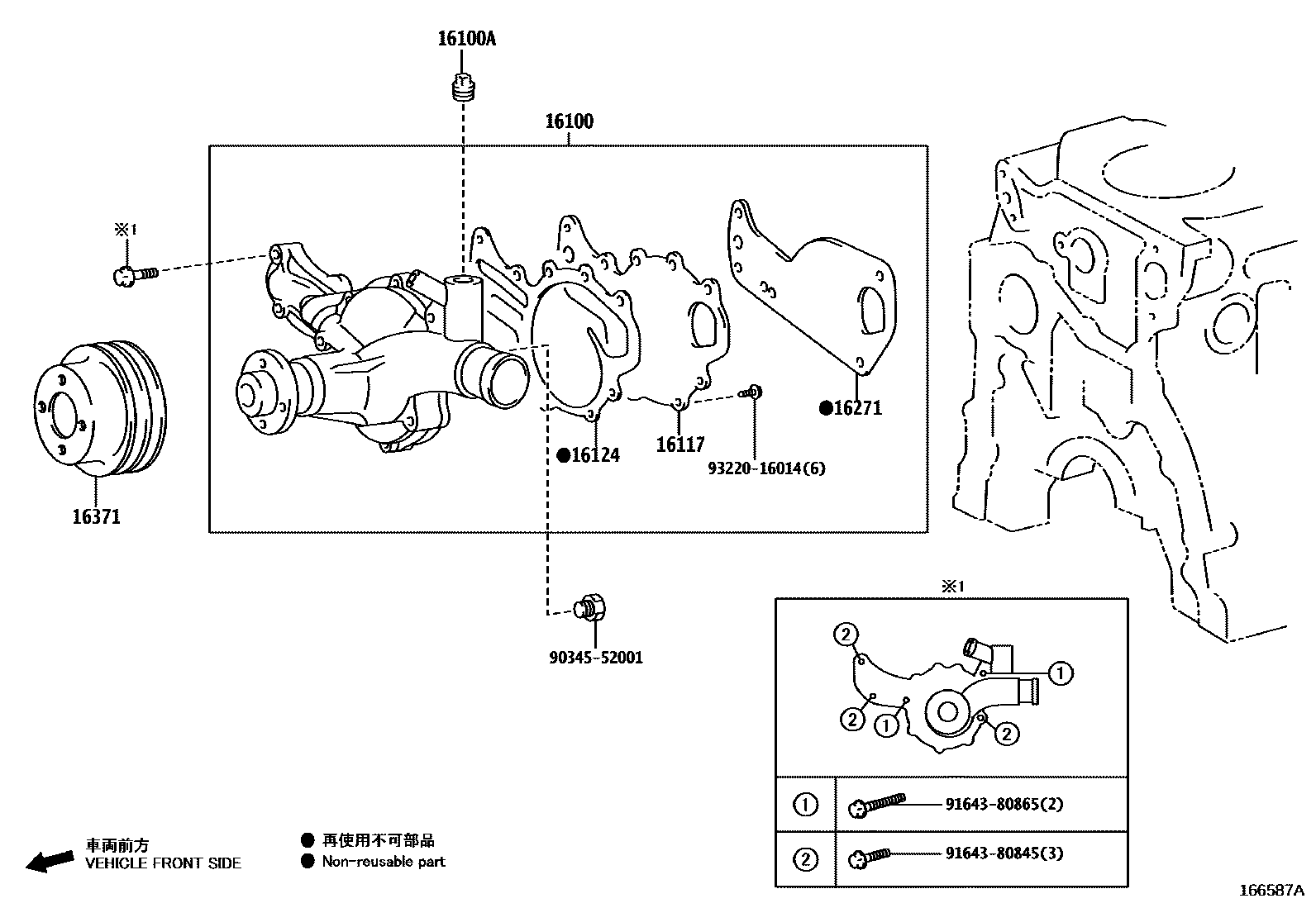

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1EURO 5 0008 1EURO 3 OR EURO 4 OR EURO 6 0009 1

16100PUMP ASSY, ENGINE WATER

main16100-19325i1HZ..HZB70..23S..GCC202201-202412

main16100-19375i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main16100-59187i1BZFPE..BZB60,70201701-202012

main16100-59196i14B..BB60201701-201907

main16100-79445i2TRFE..TRB60,70..GCC202201-202303

main16100-E0B60iN04C..XZB60201701-201712

main16100-E0B61iN04C..XZB60,70201901-201905

TYPE A:REFER ILLUST.

main16100-E0B71iN04C..XZB70..6FC;N04C..XZB70..(23S,25S,30S)..STD..GEN201908

main16100-E0B90iN04C..XZB70..TAIW201905

TYPE B:REFER ILLUST.

16100APLUG, WATER PUMP

main90345-54005i14B..BB60201701-201908

FRONT HEATER-MANUAL 120W

16117PLATE, WATER PUMP

main16117-58010i14B..BB60201701-201907

16124GASKET, WATER PUMP COVER

main16124-58010i14B..BB60201701-201907

main16124-75030i2TRFE..TRB60..GEN201701

16271GASKET, WATER PUMP

main16271-11010i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201

main16271-17010i1HZ..HZB70..23S..WOC202201-202312

main16271-58010i1BZFPE..BZB60,70201701-202012

main16271-78010iN04C..XZB80..6FC;N04C..XZB70..(19S,22S,23S,29S)..WC..(GCC,GEN,SA)201908-202201

16371PULLEY, FAN

main16107-E0040iN04C..XZB70..23S..GCC;N04C..XZB70..RHD..23S..GEN202501

main16371-11020i1GDFTV..GDB70..BTN202201-202312

main16371-17010i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC202201

main16371-58041i1BZFPE..BZB60,70201701-202012

main16371-58051i14B..BB60201701-201907

main16371-75040i2TRFE..TRB60,70..6F;2TRFE..TRB70..WC..GEN202201

9034552001

main90345-52001

9164380845

main91643-80845

9164380865

main91643-80865

9322016014

main93220-16014

10 parts on this diagram · 9 diagrams in section
