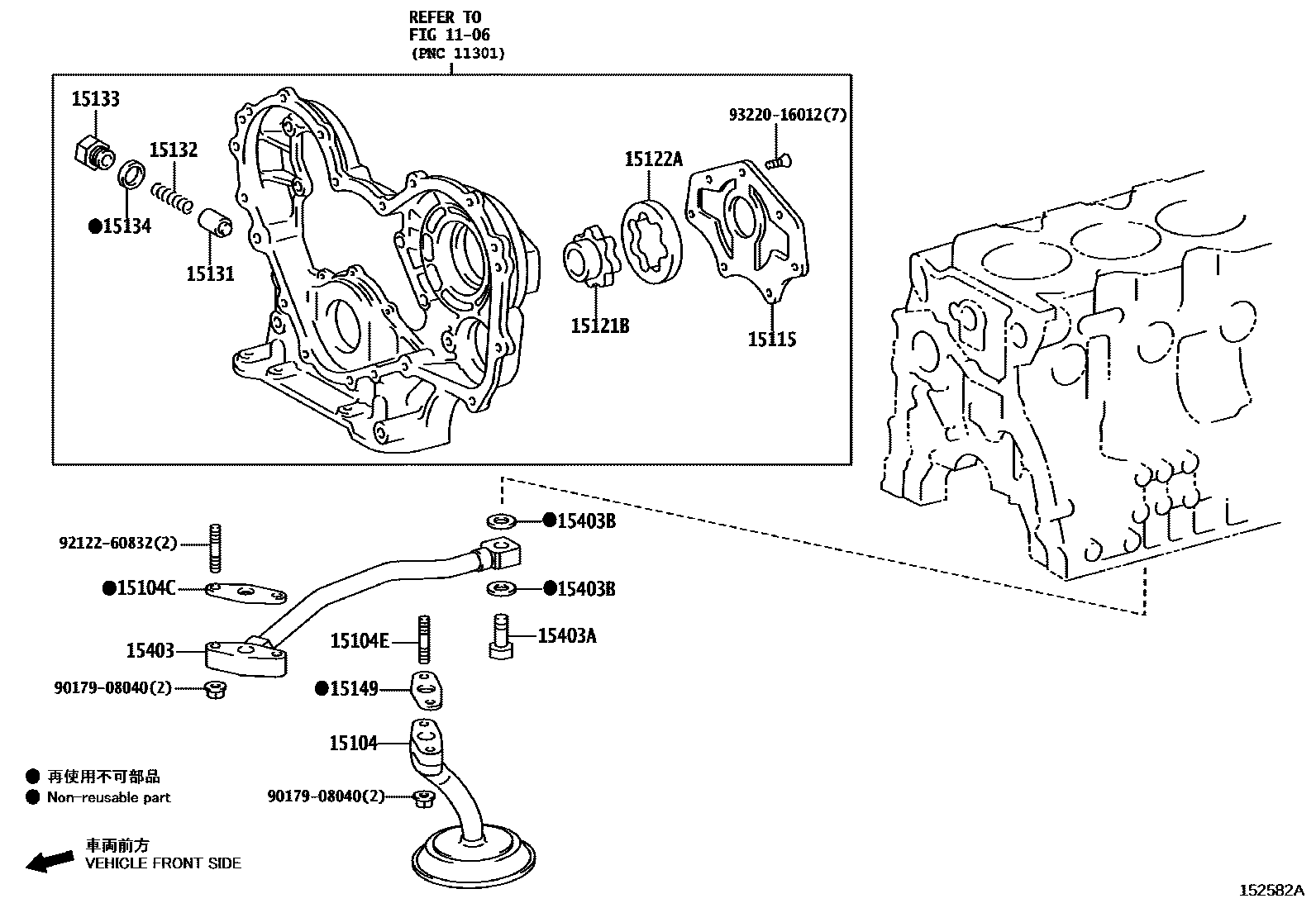

ENGINE OIL PUMP
1106TIMING GEAR COVER & REAR END PLATE
15104STRAINER SUB-ASSY, OIL
15104CGASKET(FOR OIL STRAINER)
15104EBOLT, STUD(FOR OIL STRAINER)
15115COVER, OIL PUMP
15121BROTOR, OIL PUMP DRIVE
15122GEAR, OIL PUMP DRIVEN
15122AROTOR, OIL PUMP DRIVEN
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15134GASKET, OIL PUMP RELIEF VALVE
15149GASKET, OIL STRAINER FLANGE
15403PIPE SUB-ASSY, OIL PUMP OUTLET
15403AUNION(FOR OIL PUMP OUTLET PIPE)
15403BGASKET(FOR OIL PUMP OUTLET PIPE)
9017908040
main90179-08040
9212260832
main92122-60832
9322016012
main93220-16012
19 parts on this diagram · 5 diagrams in section
