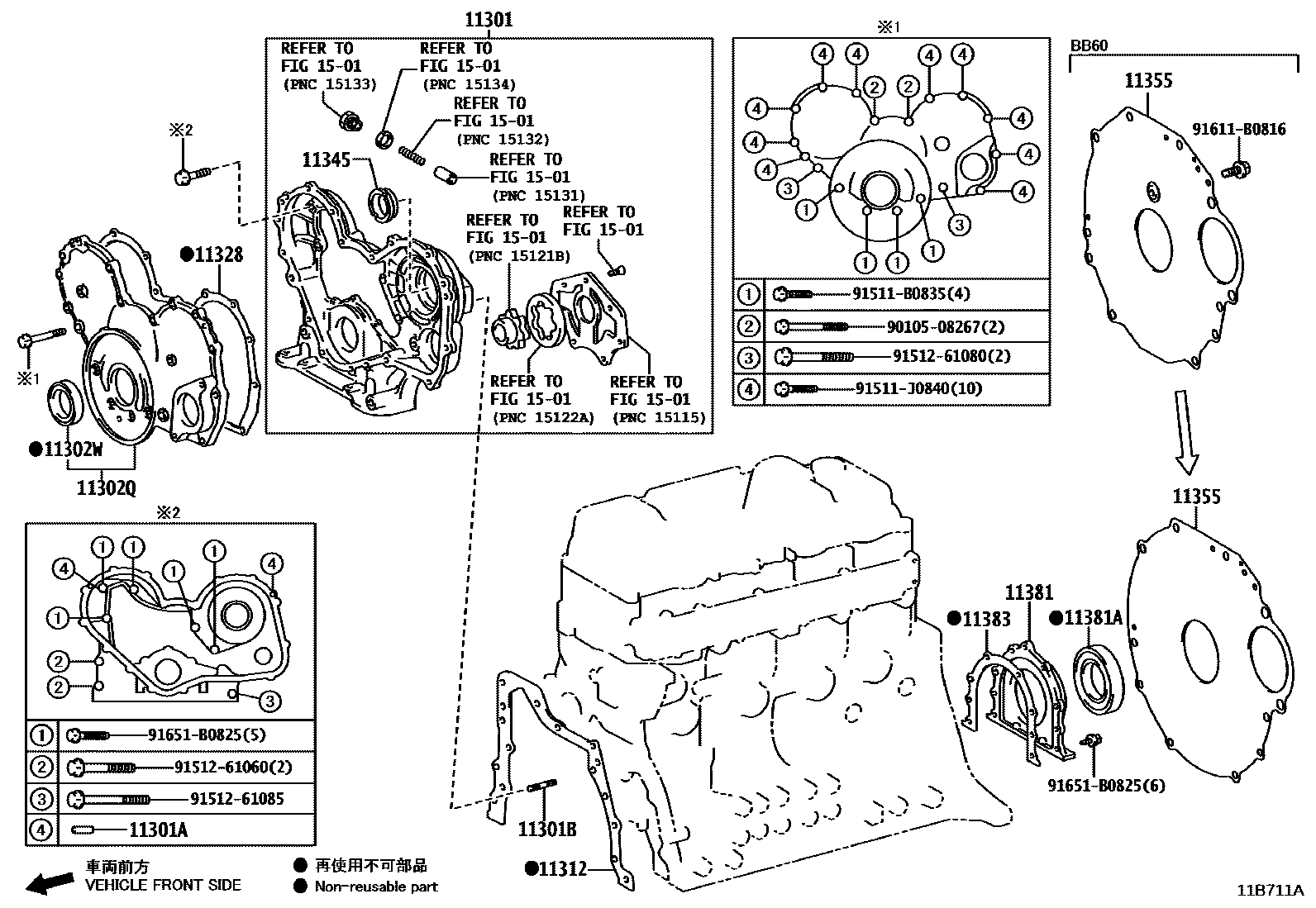

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1EXCEPT EURO 5 0009 1EURO 5 0011 1 0012 1EURO 5

11301CASE SUB-ASSY, TIMING GEAR

main11301-17030i1HZ..HZB70..23S..WOC201701-202412

main11301-58012i1BZFPE..BZB60,70201701-202012

main11301-58021i14B..BB60201701-201907

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08054i1HZ..HZB70..19S201701-202412

L=23,OD=8

main90250-08120i1BZFPE..BZB60,70201701-202012

L=18,OD=8

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main90116-08169i1BZFPE..BZB60,70201701-202012

main90116-10160i1HZ..HZB70..23S..GCC201701-202412

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-75074i2TRFE..TRB60,70..19S,20S,23S,24S,30S201701-202412

main11321-11120i1GDFTV..GDB60,70202201-202306

main11321-35040i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202307-202512

11302QCOVER SUB-ASSY, TIMING GEAR

main11302-58011i14B..BB60201701-202012

11302WSEAL, OIL(FOR TIMING GEAR COVER)

main90311-50013i14B..BB60201701-202012

11312GASKET, FRONT END PLATE

main11312-56040i14B..BB60201701-202012

mainS113121170iN04C..XZB70..6FC;N04C..XZB70..(02S,23S,25S,30S)..STD..(GEN,TAIW)201701-202512

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11070i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main11328-17030i1HZ..HZB60,70..23S,25S,26S,30S201701-202308

main11328-43040i1HZ..HZB60;1HZ..HZB70..WC..GEN;1HZ..HZB70..30S..WOC202308-202412

main11328-58010i14B..BB60201701-202012

11345BEARING, INJECTION PUMP GEAR THRUST

main11345-48010i14B..BB60201701-202012

11355PLATE, REAR END

main11355-11040i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

main11355-17011i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main11355-56061i14B..BB60201701-201907

main11355-58050i1BZFPE..BZB60,70201701-202012

main11355-75021i2TRFE..TRB70..WOC201701-202412

11381RETAINER, ENGINE REAR OIL SEAL

main11381-11010i1GDFTV..GDB70..DX..ARL;1GDFTV..GDB70..RHD..(EX,STD)..(ARL,GEN)202201-202512

main11381-17010i1HZ..HZB70..23S..GCC201701-202412

main11381-58011i1BZFPE..BZB60,70201701-202012

main11381-75012i2TRFE..TRB70..WOC201701-202412

11381ASEAL, ENGINE REAR OIL

main90311-88006i2TRFE..TRB60,70..19S,20S,23S,24S,30S201701-202412

main90311-95008i1HZ..HZB60,70..23S,25S,26S,30S201701-202412

main90311-95011i14B..BB60201701-202012

main90311-95015i1GDFTV..GDB60;1GDFTV..GDB70..(02S,19S,22S,23S)..(GCC,GEN,SA,TAIW)202201-202512

mainSZ31100002iN04C..XZB60201701-201906

mainSZ31100004iN04C..XZB70..SA;N04C..XZB70..29S;N04C..XZB70..LHD..DX..GEN201907-202512

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i14B..BB60201701-202012

1501ENGINE OIL PUMP

→ Go to FIG 15-01

9010508267

main90105-08267

91511B0835

main91511-B0835

91511J0840

main91511-J0840

9151261060

main91512-61060

9151261080

main91512-61080

9151261085

main91512-61085

91611B0816

main91611-B0816

91651B0825

main91651-B0825

22 parts on this diagram · 11 diagrams in section
