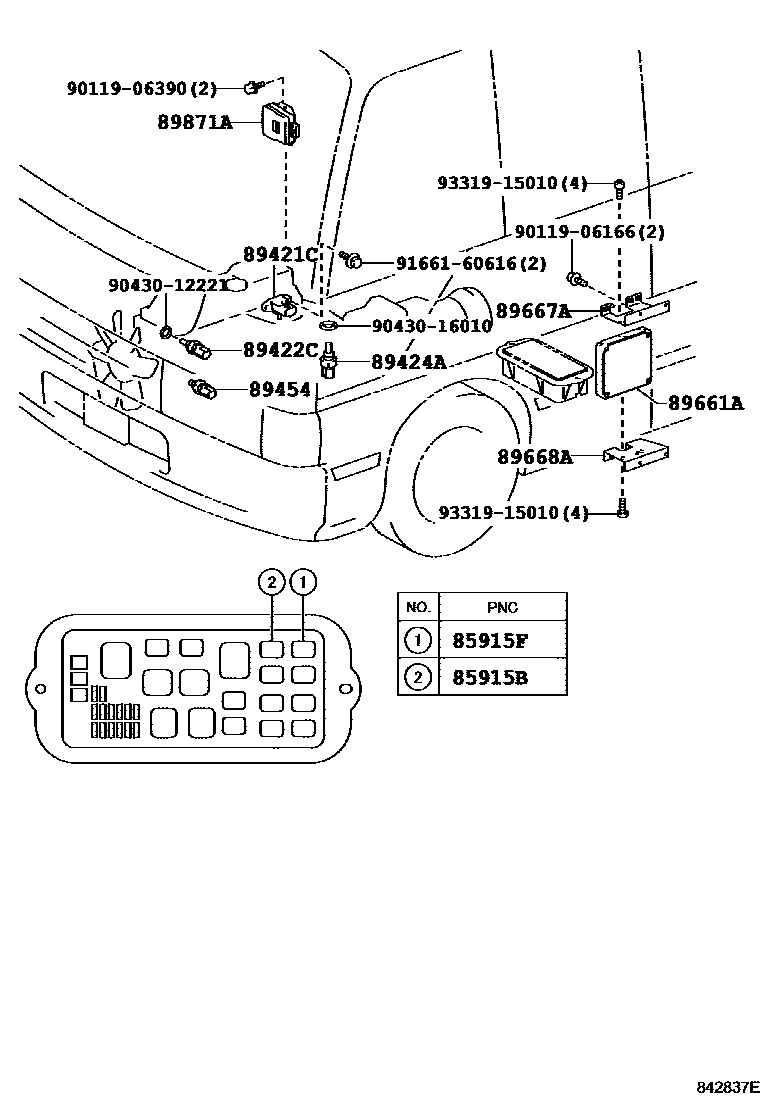

Toyota COASTER — ELECTRONIC CONTROLED DIESEL (ECD)
85915BRELAY, MAIN (FOR DIESEL TURBO)
85915FRELAY, SPILL VALVE
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89454SENSOR, FUEL TEMPERATURE
89661ACOMPUTER, ENGINE CONTROL
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89871ADRIVER, INJECTOR
9011906166
9011906390
9043012221
9043016010
9166160616
9331915010
16 parts on this diagram · 3 diagrams in section
ELECTRONIC CONTROLED DIESEL (ECD) for Toyota COASTER
This section contains 24 genuine Toyota parts for the ELECTRONIC CONTROLED DIESEL (ECD) system of the Toyota COASTER. Key components include: SWITCH & RELAY & COMPUTER, RELAY, MAIN (FOR DIESEL TURBO), RELAY, SPILL VALVE, SENSOR, TURBO PRESSURE (FOR DIESEL TURBO), SENSOR, VACUUM.
