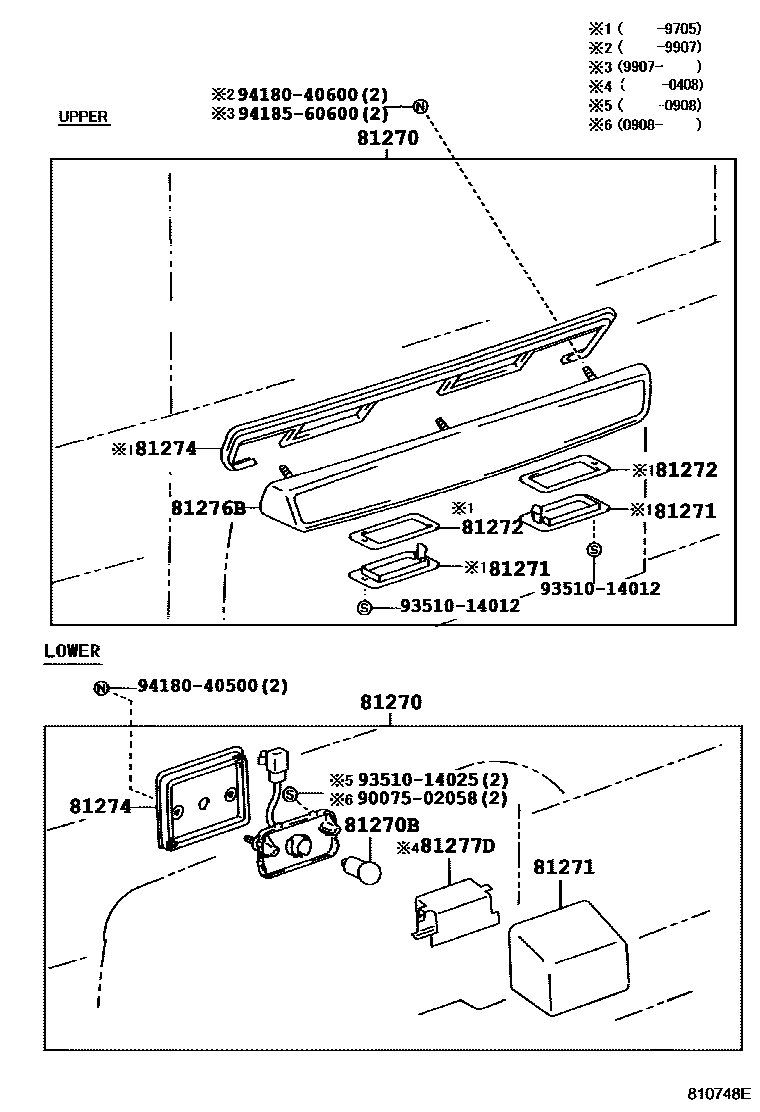

REAR LICENSE PLATE LAMP

0001 1SINGAPORE SPEC 0002 1SINGLE OR DOUBLE LEAF TYPE 0003 1LUGGAGE TYPE

81270LAMP ASSY, LICENSE PLATE

main81270-36080iBB50..WOC..TD;BB50..GEN..6F200108-200408

main81270-36090iHZB50..LHD..WOC;BB42..LHD..HRF..WOC;BB42,RZB40..SRF..WOC..GEN;RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199907-200408

12V

main81270-36100iBB4#,HZB50..DSL199301-199505

24V, DOUBLE LEAF TYPE

main81270-36110iRZB40,50..STD;HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199505-199705

12V, DOUBLE LEAF TYPE

main81270-36130iHZB50..SCO199301-199705

SINGAPORE SPEC,LWR

main81270-36140iHZB50..SCO199301-199705

SINGAPORE SPEC,UPR

main81270-36150iHZB50..ARL199907-200211

24V, DOUBLE LEAF TYPE

main81270-36151iHZB50..HRF..GCC200701-201108

24V, DOUBLE LEAF TYPE

main81270-36170iHZB50..LHD..WOC;BB42..LHD..HRF..WOC;BZB40,50,RZB50..GCC,GEN;BB42,RZB40..SRF..WOC..GEN;RZB40..26S..WC..(GCC,GEN)199907-200408

12V, DOUBLE LEAF TYPE

main81270-36171iTRB50..26S;BZB40,50,XZB40,5#..HRF..WC201501

12V

main81270-36180iXZB5#..EX..5F201501

SINGAPORE SPEC,UPPER

main81270-36290iXZB5#..GEN200908-201501

SINGAPORE SFPEC,LOWER

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12015×2iBB50..CHI199907-200211

24V 5W

main90981-16016×2iBB4#,HZB50..DSL199301-199505

24V 5W,DOUBLE LEAF TYPE

main99132-11050×2iRZB40..HRF..GCC200408-200602

12V 5W

main99132-12050×2iRZB40..HRF..GCC200408-200602

12V 5W,LUGGAGE TYPE

81271LENS, LICENSE PLATE LAMP

main81271-10141iXZB59200808-201501

SINGAPORE SPEC

main81271-20440×2iBB50,RZB40,50..CHI199907-200211

main81271-95700×2iBB50..WC..TD200408-201108

DOUBLE LEAF TYPE

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20440×2iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,50,RZB40..(19S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

main81272-95700×2iHZB50..ARL199907-200211

SINGLE LEAF TYPE OR DOUBLE LEAF TYPE

81274GASKET, LICENSE PLATE LAMP BODY

main81274-32130iBB50..EX199705-199907

SINGLE LEAF DOOR

main81274-95700iHZB50..SCO199301-199705

SINGAPORE SPEC,UPR

81276BCOVER, LICENSE PLATE LAMP

main81276-36080iRZB40..HRF..GCC200408-200602

LUGGAGE TYPE

main81276-36100iBB42,HZB50,RZB40,50..LHD..STD..CBU199505-199705

DOUBLE LEAF TYPE

main81276-36150iBB42..22S;BB50..EX..IV;BB42..WOC..GCC; HZB50..4FC;HZB50..RHD..SRF;RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB43,50,RZB40..(17S,19S,20S,22S)..GEN199907-200108

DOUBLE LEAF TYPE; SINGLE LEAF TYPE OR DOUBLE LEAF TYPE

81277DREFLECTOR, LICENSE PLATE LAMP

main81277-16120iBB50..EX..GEN..CBU199907-200108

9007502058

main90075-02058

9351014012

main93510-14012

9351014025

main93510-14025

9418040500

main94180-40500

9418040600

main94180-40600

9418560600

main94185-60600

13 parts on this diagram · 3 diagrams in section
