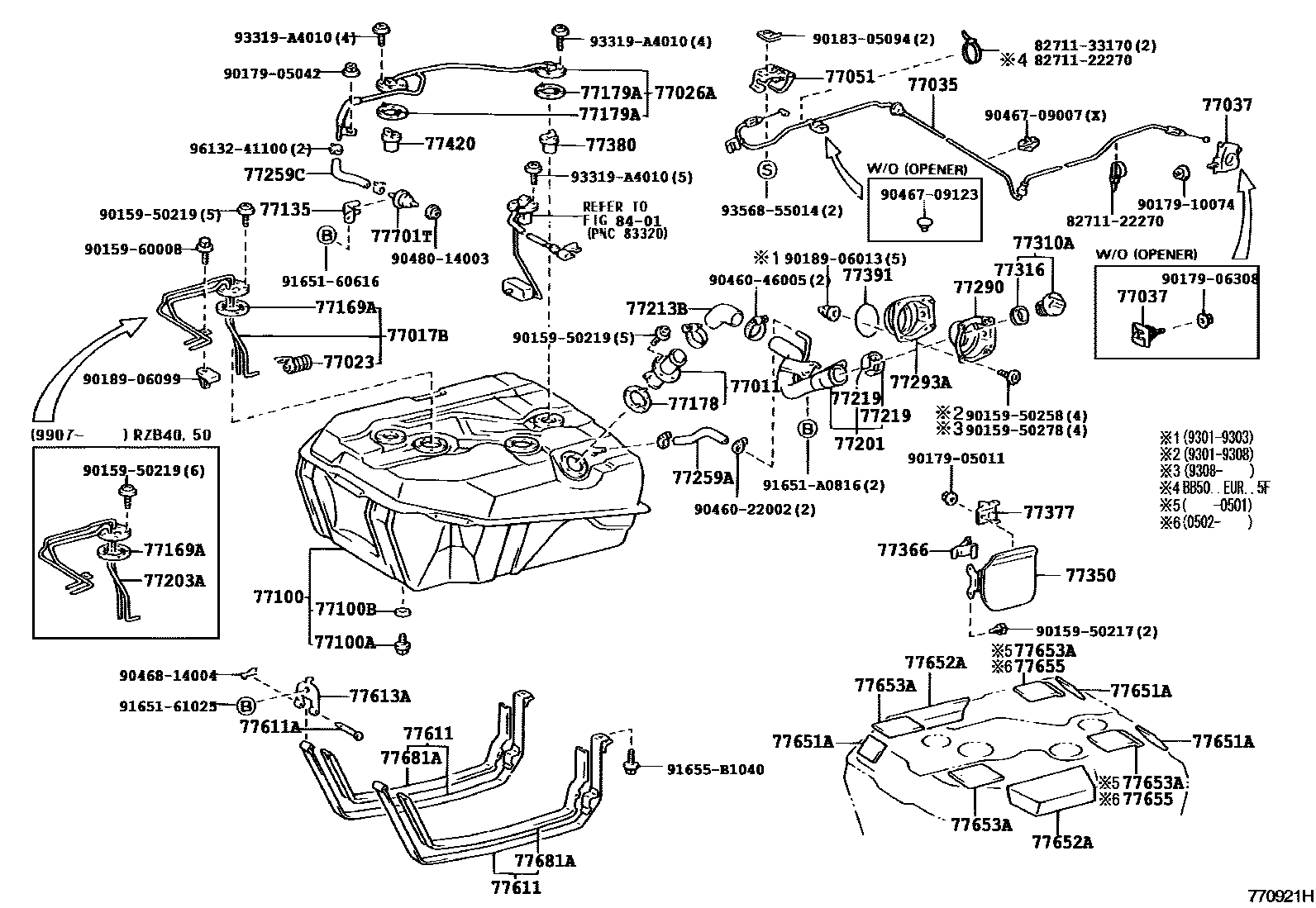

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK(LPG) 0003 1FUEL TANK 0004 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1CHINA SPEC FUEL TUBE 0011 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE (GEN=CHINA SPEC) 0017 1FUEL TUBE 0018 1FUEL TUBE 0019 1FUEL TUBE 0020 1FUEL TUBE 0021 1FUEL TUBE 0022 1FUEL TUBE 0023 1FUEL TUBE 0024 1FUEL TUBE 0025 1FUEL TUBE 0026 1FUEL TUBE 0027 1FUEL TUBE 0028 1FUEL TUBE 0029 1FUEL TUBE 0030 1FUEL COOLER 0031 1CLAMP

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12130iBB4#,5#,HZB50,RZB40,50199301-200602

main77011-36020iXZB50..STD..GEN200602-201501

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-36420iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

main77017-36430iHZB50199301-201501

main77017-36440iXZB40,59;XZB50..IV;XZB50..20S,21S199907-200908

main77017-36470iXZB40,5#..ARL,GEN,TAIW200908-201501

main77017-36480iXZB50..IV200908-201311

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-36010iBB4#,5#199301-201501

main77023-60010iXZB50..WOC..CBU199301-201501

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-36020iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEF199301-201501

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-36010iHZB50..RHD..DSL199301-199408

main77035-36011iHZB50..RHD..DSL199408-199511

main77035-36012iBB50..RHD..CBU199511-201602

sub77035-36014

main77035-36013iHZB50,XZB50..RHD201404-201502

sub77035-36012

main77035-36014iHZB50,XZB50..RHD201603

main77035-36020iBB4#..RHD199301-199408

main77035-36021iBB4#..RHD199408-199511

main77035-36022iBB42,XZB40..RHD199511-201602

sub77035-36024

main77035-36023iBB42,XZB40..RHD201404-201502

sub77035-36022

main77035-36024iBB42,XZB40..RHD201603

main77035-36030iBB50,RZB50..CHI199301-201403

sub77035-36031

main77035-36031iHZB50,TRB50,XZB50..LHD..(GCC,GEN)201404-201501

main77035-36040iBB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN)199301-201403

sub77035-36041

main77035-36041iBB42,TRB40..LHD201404-201501

main77035-36070iBB50..EX..IV200104-201602

sub77035-36072

main77035-36071iXZB59201404-201502

sub77035-36070

main77035-36072iXZB59201603

main77035-36080iBZB40,50..STD200108-201403

main77035-36081iBZB40,50201404-201502

sub77035-36080

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iBZB50..EX;BB5#..(ARL,GEN)..TDEFI199301-201501

W(FUEL LID OPENER)

main77037-12050iBB50..STD..5F..TDEFI200302-201501

main77037-36010iBB50..CBU..6F199301-201501

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-B3iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN200108-201612

DK.CHARCOAL,TRIM1#

sub77051-30060

main77051-30060-E1iBB4#,RZB40,50;HZB50..LHD..DSL199301-200108

GREIGE,TRIM4#

sub77051-30060

77100TANK ASSY, FUEL

main77001-3B260iBB42,5#,HZB50199301-200511

sub77001-3B261

sub77011-36020

main77001-3B261iXZB50..STD..GEN200512-200807

sub77001-3B262

main77001-3B262iBB42,HZB50,XZB40,5#200808-201501

main77001-3B270iRZB40,50..CHI199907-200511

sub77001-3B271

sub77011-36020

main77001-3B271iRZB50;RZB40..GEN;RZB40..SRF..GCC200512-200807

sub77001-3B272

main77001-3B272iTRB40,50200808-201501

main77001-3B310iBZB40200108-200210

sub77001-3B312

main77001-3B311iBZB40,50200210-200411

sub77001-3B312

main77001-3B312iBZB40,50200412-200503

sub77001-3B313

main77001-3B313iBZB40,50200504-200509

sub77001-3B314

main77001-3B314iBZB50..EX200510-200909

sub77001-3B315

main77001-3B315iBZB40,50200909-201012

sub77001-3B316

main77001-3B316iBZB40,50201012-201501

77100APLUG(FOR FUEL TANK)

main90105-12116iXZB50..IV199301-201501

77100BGASKET(FOR FUEL TANK)

main90430-12245iXZB50..IV199301-201501

77135BRACKET, CHECK VALVE

main77135-36040iRZB40..HRF..GCC199301-201501

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iBB4#,5#,HZB50,RZB40,50199301-201501

main77169-32010iRZB50;RZB40..GEN;RZB40..SRF..GCC199907-201501

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iBB4#,5#,HZB50,RZB40,50199301-200602

main77178-34010iBB5#..TDEFI200602-201501

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iBB50..WOC..6F;BB50..STD..WC..IV199301-201511

sub77179-26011

main77179-26011iBB42,HZB50,TRB40,50,XZB40,5#201511

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-36170iBB50..WOC..6F;BB50..STD..WC..IV199301-200207

sub77201-36180

main77201-36180iRZB50;RZB40..GEN;RZB40..SRF..GCC200207-201501

main77201-36180iHZB50..LHD..STD..WC..GEN;BB42,HZB50..LHD..SRF..WOC..GEN199301-200207

*EX-USSR COLD AREA SPEC

main77201-36200iBZB40200108-200210

sub77201-36201

sub77108-36011

main77201-36201iBZB40,50200210-200504

sub77201-36202

main77201-36202iBZB40,50..STD200505-201501

main77201-36210iXZB50..TAIW201501

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-36191iRZB40..WOC..GCC;RZB40..22S..GEN199907-200502

sub77203-36192

main77203-36192iRZB50;RZB40..GEN;RZB40..SRF..GCC200502-200805

sub77203-36193

main77203-36193iTRB40,50200808-201108

main77203-36200iTRB40,50201108-201501

main77203-36240iTRB40,50201501

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-36090iRZB40..HRF..GCC199301-201501

main77213-36100iXZB50..IV199301-201311

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iBB4#,5#,HZB50,RZB40,50199301-200408

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-36070iBB42..LHD..HRF199301-201501

main77259-36080iBB50..EUR199301-201311

77259CHOSE, FUEL

main77259-36090iBB42..LHD..HRF199301-201501

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12060iXZB50..STD..GEN199301-201501

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12030iBB4#,5#,HZB50,RZB40,50199301-201501

77310ACAP ASSY, FUEL TANK

main77300-20020iBB42,HZB50,XZB40,5#..ARL,GCC,GEN201501

main77300-52030iBB42..LHD..HRF200708-201501

main77310-12150iBB50..WOC..5F;BB50..EX..GEN;BB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..17S,19S,22S;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199803-201311

main77310-35070iRZB40,50199309-199803

sub77310-48010

main77310-35110iBB4#,5#,HZB50199301-199803

sub77310-12150

main77310-48010iRZB40..HRF..GCC199803-200708

77316GASKET, FUEL TANK CAP

main77316-16010iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201311

main77316-52040iBB42,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN200908-201501

77350LID ASSY, FUEL FILLER OPENING

main77350-36010iBZB40,50200108-200408

NO.1:REFER TO ILLUSTRATION

sub77350-36011

main77350-36010iHZB50..22S..4FC;BB50,HZB50,RZB40..EX199301-200601

W(FUEL LID OPENER)

sub77350-36011

main77350-36010iBB50..STD..5F..TDEFI200302-200408

sub77350-36011

main77350-36011iBB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;XZB50..(20S,21S)..WC;BB50,HZB50,TRB40,50,XZB40,59..DCR,DSL,EFI,TD200601-201501

W(FUEL LID OPENER)

main77350-36011iBZB50..EX200601-201501

NO.1

main77350-36011iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#..ARL,GCC,GEN201501

W(FUEL LID OPENER),NO.1

main77350-36020iRZB40..HRF..GCC199301-201501

main77350-36020iBB42,HZB50,TRB40,50,XZB40,50..21S,26S,30S201501

NO.1

main77350-36030iBZB50..EX200408-201501

NO.2

main77350-36030iBZB40,50200108-200408

NO.2:REFER TO ILLUSTRATION

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-36010iBZB50..EX;BB5#..(ARL,GEN)..TDEFI199301-201501

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12040iBZB40,50200108-201501

NO.2

main77377-20030iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL199301-200408

main77377-20030iBZB40,50200108-201501

NO.1

main77377-60010iBZB50..EX200108-201501

NO.3

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iBB50,HZB50,RZB40,50..ARL,CHI199301-201501

77391RING, FUEL INLET BOX

main77391-14020iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)199301-201501

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iBB4#,5#,HZB50,RZB40,50199301-201501

main77420-36010iBZB40,50200108-201501

77611BAND, FUEL TANK

main77601-36120iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEF199301-201501

77611APIN (FOR FUEL TANK BAND)

main90240-08047iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-36030iBB4#,5#,HZB50,RZB40,50199301-201501

77651ACUSHION, FUEL TANK, NO.1

main77651-36130iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

77652ACUSHION, FUEL TANK, NO.2

main77652-30070iBZB40200108-200110

main77652-36010iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

77653ACUSHION, FUEL TANK, NO.3

main77653-36010iXZB50..WOC..CBU199301-201501

77655CUSHION, FUEL TANK, NO.3

main77653-36020iBB5#..TDEFI200502-201501

77681ASEAT, FUEL TANK BAND

main77681-36050iBB4#,5#,HZB50,RZB40,50199301-201501

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199301-201501

main90917-10067iBB50,HZB50..IV199301-201311

8401

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

8271133170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33170

9015950217

main90159-50217

9015950219

main90159-50219

9015950258

main90159-50258

9015950278

main90159-50278

9015960008

main90159-60008

9017905011

main90179-05011

9017905042

main90179-05042

9017906308

main90179-06308

9017910074

main90179-10074

9018305094

main90183-05094

9018906013

main90189-06013

9018906099

main90189-06099

9046022002

main90460-22002

9046046005

main90460-46005

9046709007

main90467-09007

9046709123

main90467-09123

9046814004

main90468-14004

9048014003

main90480-14003

9165160616

main91651-60616

9165161025

main91651-61025

91651A0816

main91651-A0816

91655B1040

main91655-B1040

93319A4010

main93319-A4010

9356855014

main93568-55014

9613241100

main96132-41100

67 parts on this diagram · 27 diagrams in section
