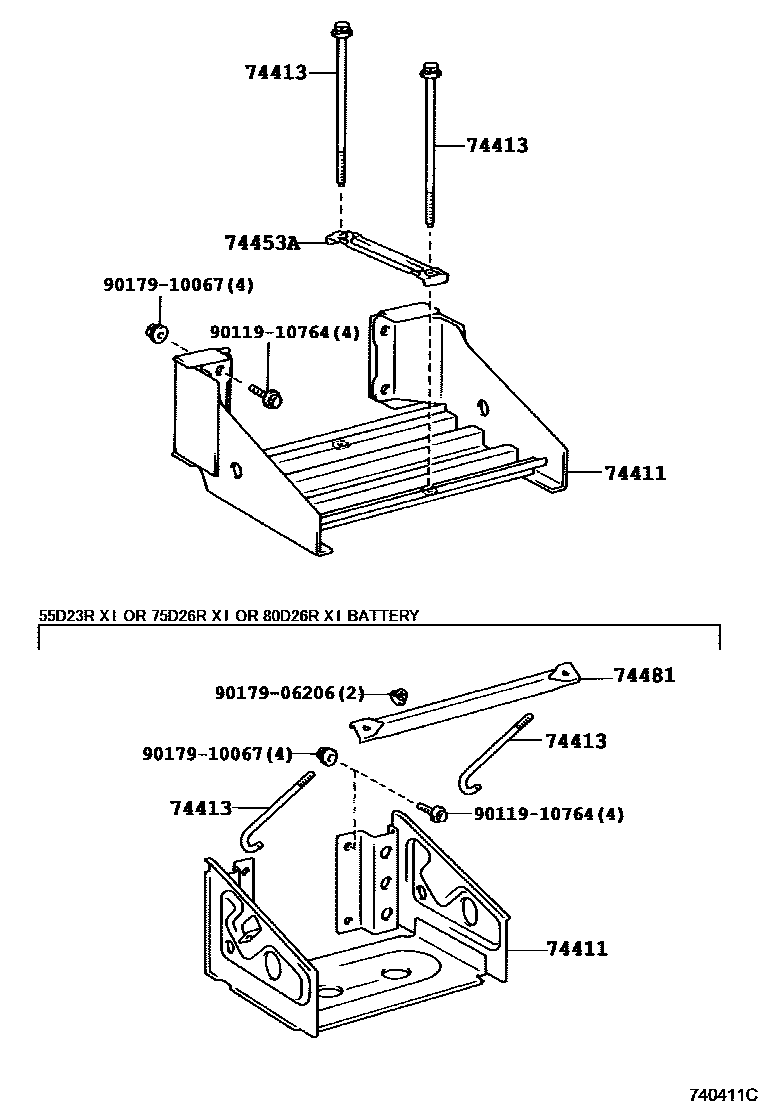

BATTERY CARRIER
74411CARRIER, BATTERY
main74403-36070iBB40;BB42..WC;HZB50..WOC..ARL;HZB50..30S..4FC;HZB50..LHD..SRF..WC;HZB50..HRF..(DX,STD)..WC..5F..DSL; HZB50..RHD..SRF;BB42,HZB50..WOC..(GCC,GEN)199301-199907
W(48D26R X 2 BATTERY); W(48D26R X 2 BATTERY) OR W(95D31R X 2 BATTERY)
W(55D23R X 2 BATTERY)
W(80D26R X 1 BATTERY)
W(55D23R X 1 BATTERY)
74413BOLT, BATTERY CLAMP
main74451-36100×2iBB42..RHD..SRF;HZB50..LHD..HRF..WOC; BB58,59;HZB50..LHD..EX;HZB50..LHD..SRF;BB42..LHD..WOC..GEN;HZB50..HRF..30S..WC;BB50..(21S,30S)..(ARL,GEN);BB42,50..(19S,20S,26S)..WC..(DSL,TDEFI)199907-200408
W(48D26R X 2 BATTERY); W(48D26R X 2 BATTERY) OR W(95D31R X 2 BATTERY)
74453ABAR, BATTERY SET PLATE
W(95D31R X 2 BATTERY)
W(BATTERY=80D26R X 2)
74481CLAMP, BATTERY HOLD DOWN
W(55D23R X 1 BATTERY)
9011910764
main90119-10764
9017906206
main90179-06206
9017910067
main90179-10067
7 parts on this diagram · 2 diagrams in section
