BACK DOOR PANEL & GLASS

0001 1LUGGAGE DOOR(PANEL) 0002 1LUGGAGE DOOR(TRIM) 0003 1DOUBLE SWING BACK DOOR(PANEL)0004 1DOUBLE SWING BACK DOOR(TRIM) 0005 1SINGLE SWING BACK DOOR(PANEL)0006 1SINGLE SWING BACK DOOR(PANEL)0007 1SINGLE SWING BACK DOOR(TRIM)

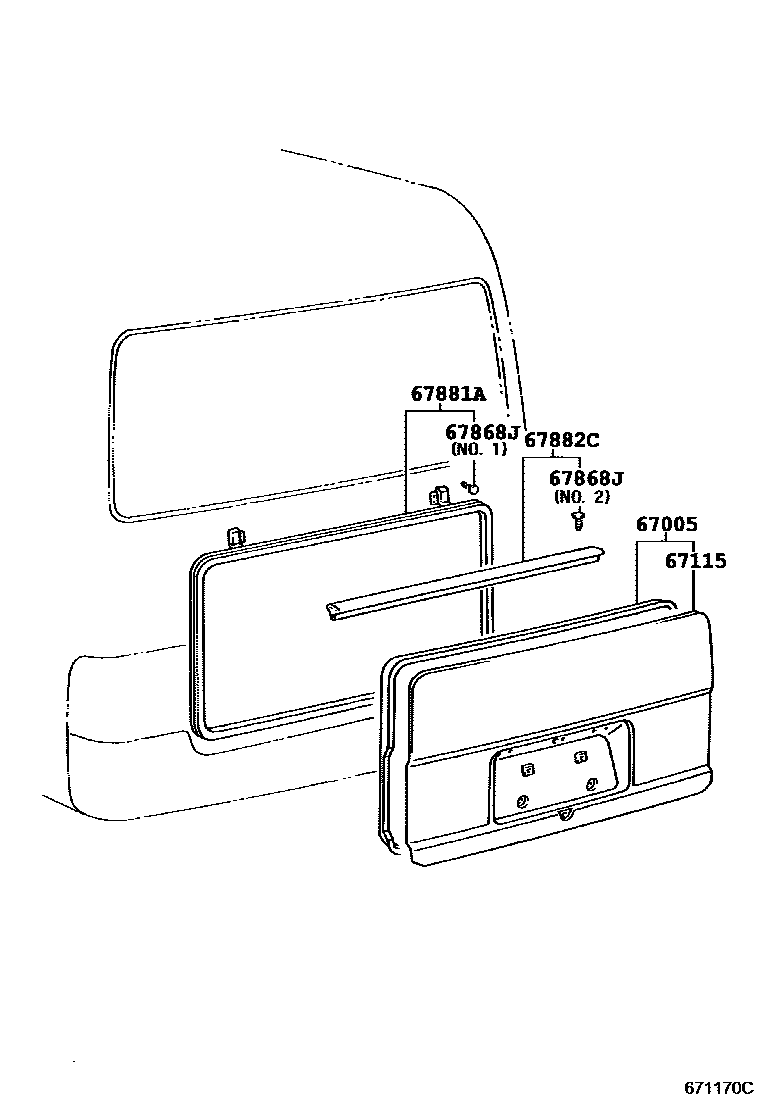

67005PANEL SUB-ASSY, BACK DOOR

main67006-36040199301-199705

main67006-36090199301-199705

main67006-36110199705-200211

main67006-36160199705-200908

main67006-36170199705-200908

main67006-36230200211-200908

main67006-36240200211-200908

main67006-36270200408-200908

main67006-36280200408-200908

main67006-36450200908-201612

main67006-36460200908-201612

main67006-36470200908-201501

main67006-36480200908-201501

main67006-36500200908-201612

main67006-36510200908-201612

main67006-36640201501-201612

main67006-36650201501-201612

main67008-36020199301-201612

67115PANEL, BACK DOOR, OUTER

main67115-36030199301-201501

67868JRETAINER, DOOR WEATHERSTRIP

main67867-12150200303-201501

main67868-30030200408-201501

main67868-30030-01199301-200408

main67868-30040199301-201501

67881AWEATHERSTRIP, BACK DOOR

main67881-36010199301-200312

main67881-36020199301-200312

main67881-36021200312-201501

main67881-36030199301-200312

main67881-36031200312-201501

main67881-36040200312-201501

67882CWEATHERSTRIP, BACK DOOR, NO.2

main67882-36010199301-201501

main67882-36020199301-201501

5 parts on this diagram · 7 diagrams in section
