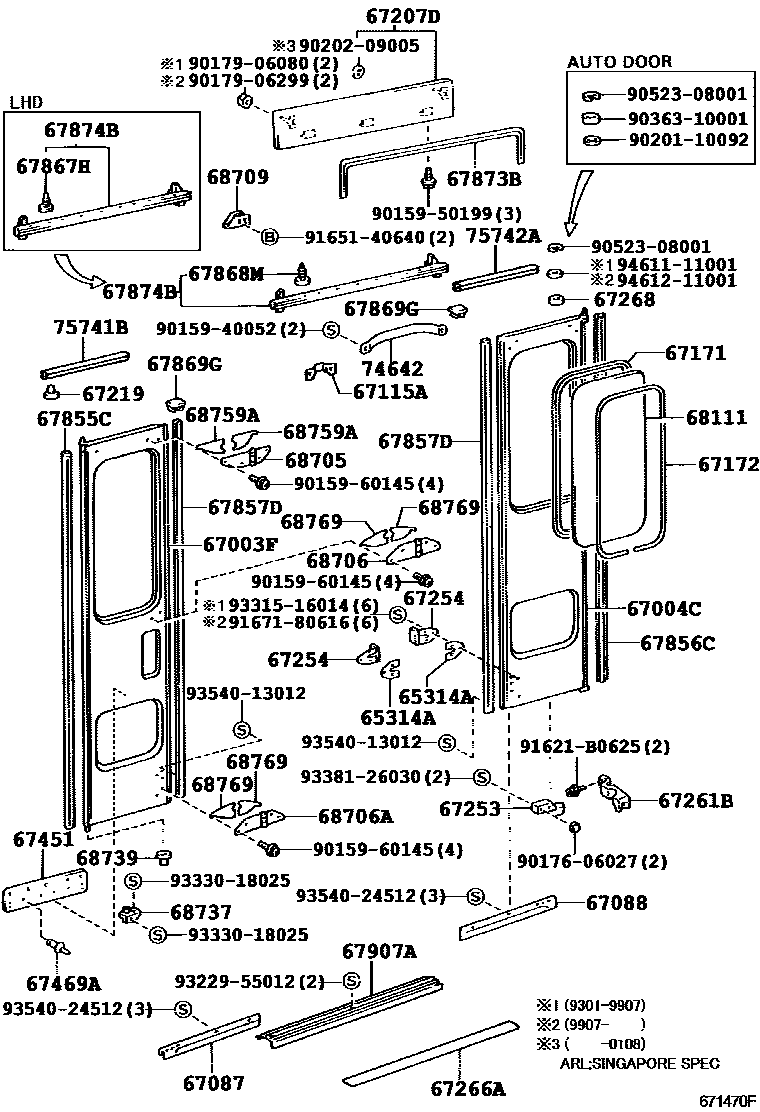

CENTER DOOR PANEL & GLASS

0001 1FOLDING DOOR 0002 1GLIDE DOOR 0003 1FOLDING DOOR 0004 1GLIDE DOOR 0005 1FOLDING DOOR 0006 1GLIDE DOOR

65314APLATE, STOPPER

main65314-36010iXZB50..WOC..CBU200805-201309

67003FPANEL SUB-ASSY, CENTER DOOR, FRONT

main67003-36020iBB42,HZB50..RHD199301-200901

W(*FD)

sub67003-36021

sub67897-36030

sub90541-09125

main67003-36050iBB42..SCO199301-199402

W(*FD AUTO) & W/O(DESTINATION EXPRESS BOX)

sub67003-36051

main67003-36051iBB42..SCO199402-199410

W(*FD AUTO) & W/O(DESTINATION EXPRESS BOX)

sub67003-36052

main67003-36052iXZB50..STD..GEN199410-200901

W(*FD AUTO) & W/O(DESTINATION EXPRESS BOX)

sub67003-36053

sub67897-36030

sub90541-09125

main67003-36060iRZB40,50..GEN199301-200901

W(*FD)

sub67003-36061

sub67897-36030

sub90541-09125

main67003-36070iBB42,HZB50..RHD..STD..GEN199301-199405

W(*FD AUTO(W/BUZZER))

sub67003-36071

main67003-36071iBB50..EX;HZB50..SCO199405-200901

W(*FD AUTO(W/BUZZER))

sub67003-36072

sub67897-36030

sub90541-09125

main67003-36080iBB42,HZB50,RZB40,50..LHD..STD..CBU199301-199405

W(*FD AUTO)

sub67003-36081

main67003-36081iRZB40..HRF..GCC199405-200908

W(*FD AUTO)

sub67003-36082

sub67897-36030

sub90541-09125

main67003-36090iBZB40,50,XZB40..STD199402-200901

W(*FD AUTO)

sub67003-36091

sub67897-36030

sub90541-09125

main67003-36190iBB42,HZB50..RHD200901-201011

W(*FD)

sub67003-36191

sub67897-36030

sub90541-09125

main67003-36191iBB42,HZB50..RHD201011-201209

W(*FD)

main67003-36200iBB42,50,HZB50,TRB40,50..LHD..GEN200901-201011

W(*FD)

sub67003-36201

sub67897-36030

sub90541-09125

main67003-36201iBB42..LHD..SRF..GEN;BB50,HZB50,TRB40,50..LHD..GEN201011-201209

W(*FD)

main67003-36210iBB42,HZB50..RHD;XZB50..RHD..(EX,STD)..WC..CBU200901-201012

W(*FD AUTO)

sub67003-36211

sub67897-36030

sub90541-09125

main67003-36211iBB42,HZB50,XZB50..RHD..(EX,STD)..CBU201012-201209

W(*FD AUTO)

main67003-36220iBB42,HZB50,TRB40,50..GCC200901-201011

W(*FD AUTO)

sub67003-36221

sub67897-36030

sub90541-09125

main67003-36221iBB42..LHD..HRF201011-201209

W(*FD AUTO)

main67003-36270iBZB40,50,XZB40200901-201011

W(*FD AUTO)

sub67003-36271

sub67897-36030

sub90541-09125

main67003-36271iBZB40,50,XZB40201011-201209

W(*FD AUTO)

main67003-36280iBZB40,50,XZB40200901-201011

W(*FD AUTO) & W/O(DESTINATION EXPRESS BOX)

sub67003-36281

sub67897-36030

sub90541-09125

main67003-36281iBZB40,50,XZB40201011-201209

W(*FD AUTO) & W/O(DESTINATION EXPRESS BOX)

main67003-36310iBB42,HZB50..RHD201209-201501

W(*FD)

main67003-36320iBB42,50,HZB50,TRB40,50..LHD..GEN201209-201501

W(*FD)

main67003-36330iBB42,HZB50,XZB50..RHD..(EX,STD)..5F201209-201501

W(*FD AUTO)

main67003-36340iBB42,50,HZB50,TRB40,50,XZB50..LHD..CBU201209-201501

W(*FD AUTO)

main67003-36390iBZB40,50,XZB40..HRF201209-201501

W(*FD AUTO)

main67003-36400iBZB40,50,XZB40201209-201501

W(*FD AUTO) & W/O(DESTINATION EXPRESS BOX)

67004CPANEL SUB-ASSY, CENTER DOOR, REAR

main67004-36030iHZB50..RHD..SRF;BB43,HZB50..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201011

SINGAPORE PACKAGE

sub67004-36031

sub67897-36030

main67004-36030iBB42,HZB50..RHD;XZB50..RHD..(EX,STD)..WC..CBU199907-201012

sub67004-36031

sub67897-36030

main67004-36031iBB42,BZB40,50,HZB50,XZB40..RHD201011-201209

main67004-36040iRZB50;RZB40..GEN;RZB40..SRF..GCC199301-201011

sub67004-36041

sub67897-36030

main67004-36041iBB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU201011-201209

main67004-36090iBB42,HZB50,XZB50..RHD..(EX,STD)..CBU201209-201501

main67004-36100iBZB40,50,XZB40..HRF201209-201501

main67004-36110iBB42,HZB50,TRB40,50,XZB40,50..LHD201209-201501

67087PLATE SUB-ASSY, CENTER DOOR DUST SEAL, FRONT

main67087-36010iBB4#,HZB50..RHD..STD..DSL199301-199508

SINGAPORE SPEC

sub67087-36011

main67087-36011iHZB50..STD..ARL199508-201209

main67087-36011iHZB50..SCO199508-201209

SINGAPORE SPEC

main67087-36020iBB42,HZB50,RZB40,50..LHD..STD..CBU199301-199508

sub67087-36021

main67087-36021iBB58199508-201209

main67897-36040iBB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F201209-201501

67088PLATE SUB-ASSY, CENTER DOOR DUST SEAL, REAR

main67088-36010iHZB50..SCO199301-199508

SINGAPORE SPEC

sub67088-36011

main67088-36011iHZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..CBU;BB42,HZB50..RHD..HRF..WOC..GEN199508-200112

sub67088-36030

main67088-36011iHZB50..SCO199508-199705

SINGAPORE SPEC

sub67088-36030

main67088-36020iBB42,HZB50,RZB40,50..LHD..STD..CBU199301-199508

sub67088-36021

main67088-36021iBB42..WC..GCC;RZB40..26S..WC;RZB40..22S..CHI;RZB40..WOC..GEN;BB42..LHD..26S..GEN;BB50,58,HZB50,RZB50..LHD..(23S,30S)199508-200112

main67088-36030iHZB50..STD..ARL200112-201209

main67088-36040iRZB50;RZB40..GEN;RZB40..SRF..GCC200112-201209

main67898-36050iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU201209-201501

67115AREINFORCEMENT, CENTER DOOR, FRONT UPPER

main67155-36010iBB42,HZB50..RHD..HRF..STD..(GEN,SCO)199405-201501

67171WEATHERSTRIP, CENTER DOOR GLASS, OUTER

main68163-90B00iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,HZB50,RZB40..(17S,22S)..GEN199301-200108

SINGAPORE SPEC

main68163-90B00iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

67172WEATHERSTRIP, CENTER DOOR GLASS, INNER

main68173-90B00iBB4#,58,HZB50,RZB40,50..STD..CBU199301-200108

SINGAPORE SPEC

main68173-90B00iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

67207DCOVER SUB-ASSY, CENTER DOOR, OUTER

main67207-36010iHZB50..SCO199301-199705

SINGAPORE SPEC

main67207-36010iBB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU199301-201501

67219BUSH, CENTER DOOR UPPER BEARING CASE

main67219-90501iBB4#,58,HZB50,RZB40,50..STD..CBU199301-200108

SINGAPORE SPEC

main67219-90501iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

67253PIECE, CENTER DOOR GUIDE

main67253-36010iHZB50..STD..ARL199907-201204

sub67253-36030

main67253-36010iBB4#,HZB50..RHD..STD..CBU199301-200108

SINGAPORE SPEC

sub67253-36030

main67253-36020iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-201204

sub67253-36040

main67253-36030iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..CBU201205-201501

main67253-36040iBB42,50,HZB50,TRB40,50,XZB50..LHD..CBU201205-201501

67254STOPPER, CENTER DOOR, INSIDE NO.1

main67254-90B00iXZB50..STD..GEN199907-201501

main67254-90B00iBB50..EX;HZB50..SCO199301-200108

SINGAPORE PACKAGE

67261BCASE, CENTER DOOR GUIDE

main67261-36010iBB42,BZB40,50,HZB50,XZB40..RHD..STD;XZB50..RHD..(20S,21S)..(EX,STD)..WC199907-201501

main67261-36010iBB50..EX;HZB50..SCO199301-200108

SINGAPORE SPEC

main67261-36020iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-201501

67266ASTOPPER, CENTER DOOR RAIL

main67266-36010iBB50..(20S,21S)..(EX,STD)..TDEFI199907-201501

main67266-36010iBB40,HZB50..STD..ARL199301-200108

SINGAPORE PACKAGE

67268ROLLAR, REAR DOOR, UPPER

main67268-90B00iBB4#,HZB50,RZB40,50..STD..(ARL,GCC,GEN)199301-201501

67451BRACKET, CENTER DOOR GUIDE, UPPER

main67451-36030iBB42..SCO199402-199410

67469APROTECTOR, CENTER DOOR GUIDE

main67469-36010iBB42..SCO199402-199410

67855CWEATHERSTRIP, CENTER DOOR FRONT

main67855-36020iBB42,50,58,HZB50,RZB40,50..LHD..(22S,23S,26S,30S)199301-201111

L=1635

main67855-36030iBB50..EX;HZB50..SCO199301-201501

*H,L=1635

main67855-36030iBB4#,HZB50..RHD..STD..CBU199301-199907

SINGAPORE PACKAGE,*H,L=1635

main67855-36050iBB42,HZB50,TRB40,50,XZB40,50..LHD201111-201501

L=1635

67856CLIP, CENTER DOOR WEATHERSTRIP

main67771-12050iXZB5#..DX,EX;BB50..WC..TD200408-200911

TYPE C:REFER ILLUST.

main67771-28020iBB50..DX;BB50..19S,20S;BB59,BZB50..EX200408-200911

TYPE B:REFER ILLUST.

main67771-30090iBB50..DX;BB50..19S,20S;BB59,BZB50..EX200408-201011

TYPE A:REFER ILLUST.

main90467-09206iTRB50..HRF..GCC200912-201501

TYPE B:REFER ILLUST.

main90467-10161iXZB5#..DX,EX200912-201501

TYPE C:REFER ILLUST.

main90467-10161iXZB5#..DX,EX;TRB50..HRF..GCC201501

TYPE A:REFER ILLUST.

67856CWEATHERSTRIP, CENTER DOOR, REAR

main67856-36020iBB42,HZB50,TRB40,50,XZB40,50..LHD199301-201501

L=1665

main67856-36030iBB4#,HZB50..RHD..STD..DSL199301-199606

*H,L=1665

sub67856-36040

main67856-36040iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..5F199606-201501

*H,L=1665

main67856-36040iBB4#,HZB50..RHD..STD199606-199907

SINGAPORE PACKAGE,*H,L=1665

67857DWEATHERSTRIP, CENTER DOOR, CENTER

main67857-36030iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-199907

SINGAPORE PACKAGE,*H,L=1685

main67857-36030iBB4#,HZB50..RHD..STD..CBU199301-201501

*H,L=1685

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-12150iBB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)200304-200408

W(FOLDING SIDE DOOR)

main67867-12150iHZB50..DX;BB50,RZB40,50..CHI199505-201612

main67868-22020iHZB50,RZB40..DX,EX199301-199505

sub67867-12150

main67868-30040iBB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN199907-200304

W(FOLDING SIDE DOOR)

main67868-30040iBB42,HZB50,RZB40,50..LHD..STD..CBU199301-199705

67868MCLIP, DOOR WEATHERSTRIP

main67867-12150iBB50..CBU;HZB50,RZB40..DX,EX199301-201612

W(GLIDING SIDE DOOR)

main67867-12150iBB50..RHD..(EX,STD)..CBU;BB42,BZB40,50,HZB50..RHD..STD200304-201612

W(FOLDING SIDE DOOR)

main67867-12150iBB59;BB50..(19S,20S,30S)..WC..GEN200108-200408

main67868-30040iBB42..RHD..SRF;BB50..RHD..(EX,STD)..CBU..TDEFI;BB42,BZB40,50,HZB50..RHD..HRF..STD..WC..GEN..5F199907-200304

W(FOLDING SIDE DOOR)

main67868-30040iBB4#,HZB50..RHD..STD..CBU199301-200108

SINGAPORE PACKAGE

67869GCLIP, DOOR WEATHERSTRIP

main67771-28020iXZB5#..DX,EX;BB50..WC..TD200408-200911

TYPE B:REFER ILLUST.

main67771-30090iBB50..DX;BB50..19S,20S;BB59,BZB50..EX200408-201010

TYPE A:REFER ILLUST.

main67869-90B00iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,HZB50,RZB40..(17S,22S)..GEN199301-200108

SINGAPORE PACKAGE

main67869-90B00iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

main67869-90B00iRZB40..HRF..GCC200408-201501

W(FOLDING SIDE DOOR)

main90467-09206iTRB50..HRF..GCC200912-201501

TYPE B:REFER ILLUST.

main90467-10161iXZB5#..DX,EX;TRB50..HRF..GCC201501

TYPE A:REFER ILLUST.

main90467-10161iBB50..WC201011-201501

TYPE C:REFER ILLUST.

67873BWEATHERSTRIP, REAR DOOR GLASS, FRONT RH

main67873-36010iHZB50..SCO199301-199705

SINGAPORE SPEC

main67873-36010iBB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU199301-201501

67874BWEATHERSTRIP, CENTER DOOR, UPPER NO.2

main67874-36010iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-201501

main67874-36020iBB50..EX..GEN..CBU199301-200108

SINGAPORE PACKAGE

main67874-36020iHZB50..STD..ARL199907-201501

67907APLATE SUB-ASSY, CENTER DOOR SCUFF

main67907-36010iHZB50,RZB40..DX,EX199301-199311

sub67917-36010

main67907-36030iBB50..EX199705-199907

main67907-36030iBB50..EX200408-201501

W(FOLDING SIDE DOOR)

main67917-36010iXZB5#..DX,EX200408-201501

W(GLIDING SIDE DOOR)

main67917-36010iBB50..DX;BB50..(20S,30S)..WC..GEN;BB59,BZB50,HZB50,RZB40..EX199311-200408

main67917-36030iBB50..GEN..6F200408-200608

W(GLIDING SIDE DOOR)

main67917-36030iBB50..GEN..6F..TDEFI199705-200408

68111GLASS, CENTER DOOR

main68113-36040iBB4#,HZB50,RZB40,50..STD..CBU199505-199705

*TEM,T=3.5,SINGAPORE SPEC

main68113-36040iHZB50..SCO199505-199705

*TEM,T=3.5

main68113-36070iBB42,HZB50,TRB40,50..GCC;XZB50..(20S,21S)..(EX,STD)..WC199705-201501

*TT,T=3.5,GREEN

main68113-36070iBB4#,58,HZB50,RZB40,50..STD199705-200108

*TT,T=3.5,GREEN,SINGAPORE SPEC

main68113-36070iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU201209-201501

*TT,T=3.5,GREEN,W(*FD AUTO),FRONT

main68113-36070iBB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F201501

FRONT

main68113-36110iBB42,50,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..CBU201209-201501

*TT,T=3.5,GREEN,W(*FD AUTO),REAR

main68113-36110iBB42,BZB40,50,HZB50,TRB40,50,XZB40,50..(EX,STD)..5F201501

REAR

main68113-90B01iBB4#,HZB50,RZB40,50..STD..CBU199301-199505

*TT,T=3.5,SINGAPORE SPEC

main68113-90B01iBB4#,HZB50,RZB40,50..STD..CBU199301-199505

*TT,T=3.5

68705HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1

main68705-90B00iBB4#,HZB50..RHD..STD..(ARL,GEN)199301-199308

sub68705-90B01

main68705-90B01iBB42..SCO199301-200408

W(*FD AUTO(W/BUZZER))

main68705-90B01iHZB50..RHD..SRF;BB42,HZB50..RHD..HRF..WOC..GEN199301-200108

SINGAPORE SPEC

main68705-90B01iBB4#,HZB50..RHD..STD..CBU199308-201612

main68706-90B00iBB42,HZB50..LHD..STD..DSL199301-199309

sub68706-90B01

main68706-90B01iBB50,RZB40,50..STD..CHI199309-201612

main68706-90B01iBB42,HZB50..LHD..STD..DSL199301-200408

W(*FD AUTO(W/BUZZER))

68706HINGE SUB-ASSY, CENTER DOOR, OUTER NO.1

main68705-90B00iBB42,HZB50..LHD..STD..DSL199301-199309

sub68705-90B01

main68705-90B01iBB50,RZB40,50..STD..CHI199309-201612

main68705-90B01iRZB40..WOC..GEN;BB42..LHD..HRF..WOC;RZB40..26S..WC..(GCC,GEN);BB50,58,RZB50..(23S,30S)..(GCC,GEN)199301-200408

W(*FD AUTO(W/BUZZER))

main68706-90B00iBB4#,HZB50..RHD..STD..(ARL,GEN)199301-199308

sub68706-90B01

main68706-90B01iBB50..EX..GEN..CBU199301-200408

W(*FD AUTO(W/BUZZER))

main68706-90B01iBB50..EX;HZB50..SCO199301-200108

SINGAPORE SPEC

main68706-90B01iBB4#,HZB50..RHD..STD..CBU199308-201612

68706AHINGE SUB-ASSY, CENTER DOOR, OUTER NO.1

main68705-90B01iBB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..26S..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(23S,30S)..(GCC,GEN)199301-201612

main68706-90B01iHZB50..RHD..SRF;BB43,HZB50..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-200108

SINGAPORE SPEC

main68706-90B01iHZB50..STD..ARL199907-201612

68709CASE SUB-ASSY, CENTER DOOR UPPER BEARING

main68709-90B00iBB50..EX..GEN..CBU199301-200108

SINGAPORE SPEC

main68709-90B00iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

68737CASE, CENTER DOOR LOWER BEARING

main68737-36010iBB4#,HZB50..RHD..STD..CBU199301-200108

SINGAPORE SPEC

main68737-36010iHZB50..STD..ARL199907-201501

main68737-36020iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-201501

68739BALL, CENTER DOOR LOWER BEARING

main68739-90B01iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,HZB50,RZB40..(17S,22S)..GEN199301-200108

SINGAPORE SPEC

main68739-90B01iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201501

68759ASPACER, CENTER DOOR HINGE

main68759-90B00iHZB50..SCO199301-199308

SINGAPORE SPEC

sub68769-90B00

main68759-90B00iBB42,HZB50..LHD..STD..DSL199308-199309

sub68769-90B00

main68769-90B00iBB4#,HZB50..RHD..STD..DSL199308-201612

main68769-90B00iBB50..EX;HZB50..SCO199308-200108

SINGAPORE SPEC

68769SPACER, CENTER DOOR HINGE, NO.2

main68769-90B00iBB50..EX;HZB50..SCO199301-200108

SINGAPORE SPEC

main68769-90B00iBB50,HZB50,RZB40,50..STD..(ARL,CHI)199907-201612

74642GRIP, GLIDE DOOR ASSIST

main74642-90B00iHZB50..SCO199301-199705

SINGAPORE SPEC

main74642-90B00iBB50..EX;BB4#,58,HZB50,RZB40,50..STD..CBU199301-201501

75741BMOULDING, CENTER DOOR, FRONT

main75741-90B00iBB4#,HZB50..RHD..HRF..STD..DSL199301-199505

SINGAPORE SPEC

main75741-90B01iBB42,HZB50,RZB40,50..LHD..HRF..STD..CBU199301-199505

75742AMOULDING, CENTER DOOR, REAR

main75742-90B00iBB4#,HZB50..RHD..HRF..STD..DSL199301-199505

SINGAPORE SPEC

main75742-90B01iBB42,HZB50,RZB40,50..LHD..HRF..STD..CBU199301-199505

9015940052

main90159-40052

9015950199

main90159-50199

9015960145

main90159-60145

9017606027

main90176-06027

9017906080

main90179-06080

9017906299

main90179-06299

9020110092

main90201-10092

9020209005

main90202-09005

9036310001

main90363-10001

9052308001

main90523-08001

91621B0625

main91621-B0625

9165140640

main91651-40640

9167180616

main91671-80616

9322955012

main93229-55012

9331516014

main93315-16014

9333018025

main93330-18025

9338126030

main93381-26030

9354013012

main93540-13012

9354024512

main93540-24512

9461111001

main94611-11001

9461211001

main94612-11001

60 parts on this diagram · 6 diagrams in section
