EPC Data

ROOF HEADLINING & SILENCER PAD

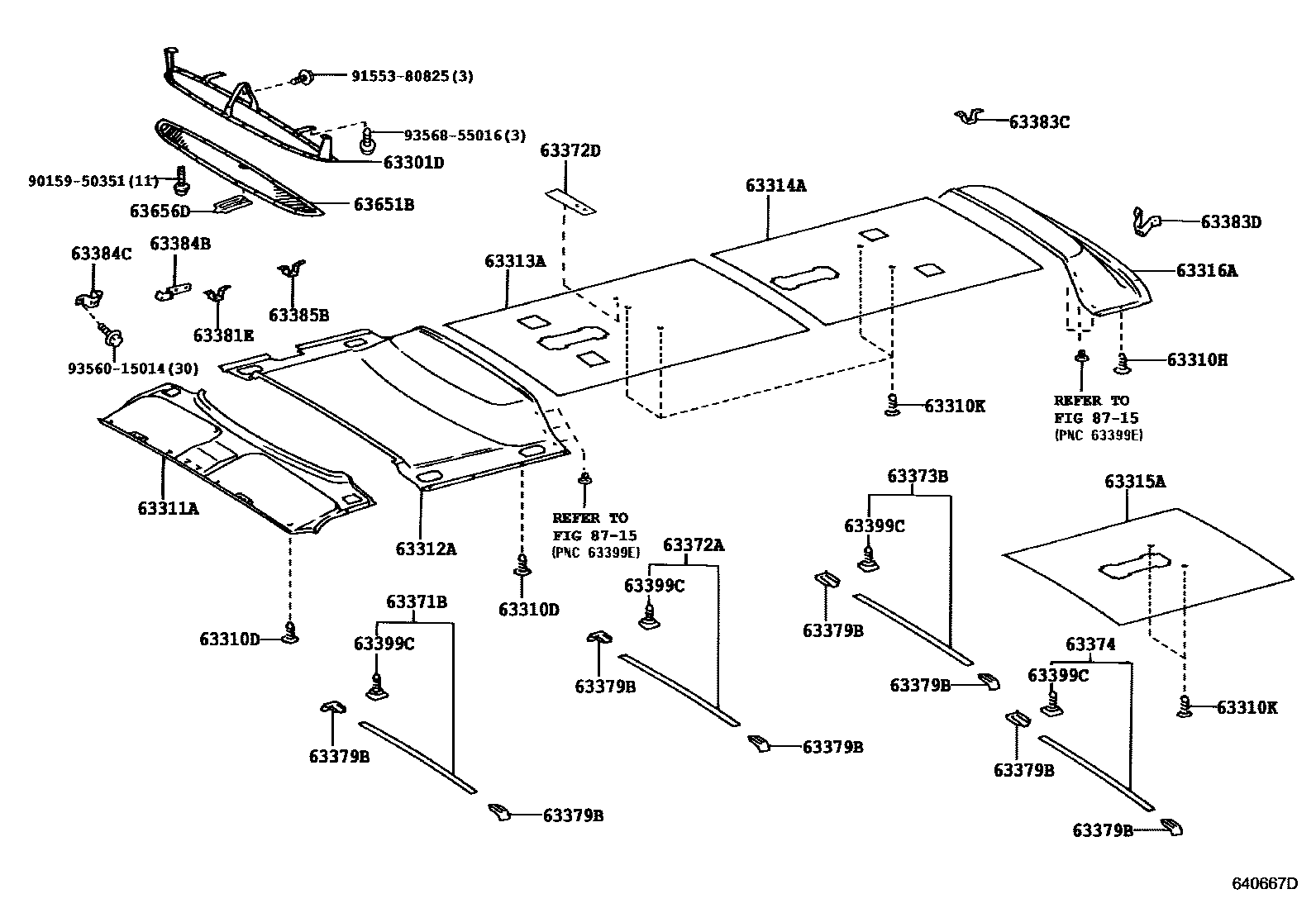

Parts diagram
63301DPLATE SUB-ASSY, ROOF HEADLINING SET
main63301-36010i199907-200211
main63301-36020i199907-200408
63310HEADLINING ASSY, ROOF
main63310-36010-A0i199301-199505
IVORY,TRIM4#
main63310-36010-A1i199907-200108
IVORY,TRIM4#
main63310-36010-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63310-36020-A0i199301-199505
IVORY,TRIM4#
main63310-36020-A1i199505-199907
IVORY,TRIM4#
main63310-36020-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63310-36030-A0i199301-199505
IVORY,TRIM4#
main63310-36030-A1i199505-199907
IVORY,TRIM4#
main63310-36030-B0i200108-200211
MD.CHARCOAL,TRIM1#
main63310-36040-A0i199301-199505
IVORY,TRIM4#
main63310-36040-A1i199505-199907
IVORY,TRIM4#
main63310-36040-B0i200108-200408
MD.CHARCOAL,TRIM1#
63310DCLIP, ROOF HEADLINING
main90467-08104-A1×12i199907-200108
IVORY,TRIM4#
main90467-08104-A3×13i199303-199505
IVORY,TRIM4#
main90467-08104-B1×12i200408-201501
MD.CHARCOAL,TRIM1#
63310HCLIP(FOR ROOF HEADLINING)
main90467-08104-A1×6i199907-200108
IVORY,TRIM4#; W(DELUXE ROOM CURTAIN) OR W(CURTAINRAIL ONLY),IVORY,TRIM4#; W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4#
main90467-08104-A3×8i199401-199505
IVORY,TRIM4#; W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4#
main90467-08104-B1×8i200108-200211
MD.CHARCOAL,TRIM1#; W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1#
63310KCLIP
main90467-08104-A1×8i200104-200108
IVORY,TRIM4#
main90467-08104-A3×6i199301-199309
IVORY,TRIM4#
main90467-08104-B1×6i200408-201108
MD.CHARCOAL,TRIM1#
63311AHEADLINING, ROOF NO.1
main63311-36010-A1i199401-199505
IVORY,TRIM4#
main63311-36020-A2i199301-199505
IVORY,TRIM4#
main63311-36060-B0i201108-201501
MD.CHARCOAL,TRIM1#
main63311-36090-A0i199301-199505
IVORY,TRIM4#
main63311-36090-A1i199505-199907
IVORY,TRIM4#
main63311-36090-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63311-36140-A0i199401-199505
IVORY,TRIM4#
main63311-36160-A0i199907-200108
W/O(EXPRESS BOX),IVORY,TRIM4#
main63311-36160-B0i200108-200305
W/O(DESTINATION EXPRESS BOX),MD.CHARCOAL,TRIM1#
main63311-36170-A0i199505-199705
W(DX ROOM CARTAIN) OR W(CARTAINRAIL ONLY),IVORY,TRIM4#
main63311-36170-B0i200408-201501
W(DELUXE ROOM CURTAIN),MD.CHARCOAL,TRIM1#
main63311-36180-A0i199907-200108
IVORY,TRIM4#
main63311-36180-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63311-36190-A0i199505-199907
W/O(DESTINETION EXPRESS BOX),IVORY,TRIM4#
main63311-36190-B0i200408-200803
MD.CHARCOAL,TRIM1#
63312AHEADLINING, ROOF, NO.2
main63312-36010-A1i199401-199505
IVORY,TRIM4#
main63312-36020-A0i199907-200108
IVORY,TRIM4#; W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36020-B0i200108-200408
W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1#
main63312-36030-A2i199301-199505
IVORY,TRIM4#
main63312-36040-A1i199401-199505
IVORY,TRIM4#; W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36050-A0i199505-199907
IVORY,TRIM4#
main63312-36050-B0i200408-200803
MD.CHARCOAL,TRIM1#
main63312-36060-A0i199301-199505
IVORY,TRIM4#
main63312-36060-A1i199505-199907
IVORY,TRIM4#
main63312-36060-B0i200408-201501
MD.CHARCOAL,TRIM1#
main63312-36070-B0i201108-201501
W(3-POINT DRIVERS & 2-POINT PASSENGERS SEAT BELT),MD.CHARCOAL,TRIM1#
main63312-36140-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63312-36170-A0i199301-199505
W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36170-A1i199907-200108
W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36170-B0i200408-201501
W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1#
main63312-36180-A0i199301-199505
W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36200-A0i199907-200108
W(3 POINT PASSENGER SEAT BELT),IVORY,TRIM4#; W(3-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36200-B0i200108-200408
W(3 POINT PASSENGER SEAT BELT),MD.CHARCOAL,TRIM1#; W(3-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1#
main63312-36210-A0i199907-200108
IVORY,TRIM4#; W(DX ROOM CARTAIN & 2-POINT ASSISTANTS SEAT BELT),IVORY,TRIM4#
main63312-36210-B0i200108-200408
MD.CHARCOAL,TRIM1#; W(DX ROOM CARTAIN & 2-POINT ASSISTANTS SEAT BELT),MD.CHARCOAL,TRIM1#
main63312-36220-A0i199907-200108
IVORY,TRIM4#
main63312-36220-B0i200408-201501
MD.CHARCOAL,TRIM1#
main63312-36400-B0i201501-201612
MD.CHARCOAL,TRIM1#
63313AHEADLINING, ROOF, NO.3
main63313-36020-A0i199301-199505
IVORY,TRIM4#; W/O(SPEAKER),IVORY,TRIM4#
main63313-36020-A1i199505-199907
IVORY,TRIM4#; W(1 SPEAKER),IVORY,TRIM4#
main63313-36020-B0i200408-200608
MD.CHARCOAL,TRIM1#
main63313-36030-A0i199301-199505
W(1 SPEAKER),IVORY,TRIM4#
main63313-36030-A1i199907-200108
W(1 SPEAKER),IVORY,TRIM4#
main63313-36030-B0i200108-200408
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36050-A0i199301-199505
IVORY,TRIM4#
main63313-36050-A1i199505-199907
IVORY,TRIM4#
main63313-36050-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63313-36060-A0i199301-199505
W(1 SPEAKER),IVORY,TRIM4#
main63313-36060-A1i199907-200108
W(1 SPEAKER),IVORY,TRIM4#
main63313-36060-B0i200108-200408
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36070-A0i199301-199505
IVORY,TRIM4#; W(TELEVISION & 2 SPEAKER),IVORY,TRIM4#
main63313-36070-A1i199907-200108
W(2 SPEAKER),IVORY,TRIM4#; W(TELEVISION & 2 SPEAKER),IVORY,TRIM4#
main63313-36070-B0i200108-200408
W(2 SPEAKER),MD.CHARCOAL,TRIM1#; W(TELEVISION & 2 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36160-A0i199301-199505
W(2 SPEAKER),IVORY,TRIM4#
main63313-36160-A1i199505-199705
W(2 SPEAKER),IVORY,TRIM4#
main63313-36160-B0i200108-200408
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36350-A1i199705-199907
IVORY,TRIM4#
main63313-36370-A0i199907-200008
IVORY,TRIM4#
main63313-36410-A0i200008-200108
IVORY,TRIM4#
main63313-36410-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63313-36420-A0i200104-200108
NO.1:REFER TO ILLUSTRATION,IVORY,TRIM4#
main63313-36420-B0i200408-200608
MD.CHARCOAL,TRIM1#,NO.1:REFER ILLUST.
main63313-36470-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63313-36530-B0i200708-201108
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36540-B0i200708-201501
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36550-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63313-36560-B0i200708-201108
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36570-B0i200708-201209
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63313-36580-B0i200708-201501
MD.CHARCOAL,TRIM1#
main63313-36590-B0i200708-201501
MD.CHARCOAL,TRIM1#,NO.1:REFER ILLUST.
main63317-36050-A0i200104-200108
NO.2:REFER TO ILLUSTRATION,IVORY,TRIM4#
main63317-36050-B0i200408-200708
MD.CHARCOAL,TRIM1#,NO.2:REFER ILLUST.
main63317-36060-B0i200708-201501
MD.CHARCOAL,TRIM1#,NO.2:REFER ILLUST.
63314AHEADLINING, ROOF, NO.4
main63314-36010-A1i199907-200108
IVORY,TRIM4#
main63314-36020-A0i199301-199505
W(1 SPEAKER),IVORY,TRIM4#
main63314-36020-A1i199505-199907
W(1 SPEAKER),IVORY,TRIM4#
main63314-36020-B0i200108-200408
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36040-A0i199301-199505
IVORY,TRIM4#
main63314-36040-A1i199505-199907
IVORY,TRIM4#
main63314-36040-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63314-36070-A0i199301-199505
W(1 SPEAKER),IVORY,TRIM4#
main63314-36070-A1i199505-199907
W(1 SPEAKER),IVORY,TRIM4#
main63314-36070-B0i200108-200408
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36080-A0i199301-199505
IVORY,TRIM4#
main63314-36080-A1i199505-199907
IVORY,TRIM4#
main63314-36080-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63314-36100-A0i199301-199505
W(1 SPEAKER),IVORY,TRIM4#
main63314-36100-A1i199705-199907
W(1 SPEAKER),IVORY,TRIM4#
main63314-36100-B0i200408-200708
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36120-A0i199301-199505
IVORY,TRIM4#
main63314-36120-A1i199907-200108
IVORY,TRIM4#
main63314-36120-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63314-36140-A0i199301-199505
IVORY,TRIM4#; W(2 SPEAKER),IVORY,TRIM4#
main63314-36140-A1i199505-199705
IVORY,TRIM4#; W(BAGGAGE RACK & 2-SPEAKER),IVORY,TRIM4#
main63314-36140-B0i200108-200408
MD.CHARCOAL,TRIM1#; W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36250-A0i199301-199505
W(1 SPEAKER),IVORY,TRIM4#
main63314-36250-A1i199505-199907
W(1 SPEAKER),IVORY,TRIM4#
main63314-36250-B0i200108-200408
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36270-A0i199301-199505
W(2 SPEAKER),IVORY,TRIM4#
main63314-36270-A1i199907-200108
W(2 SPEAKER),IVORY,TRIM4#
main63314-36270-B0i200108-200408
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36370-A0i199907-200008
IVORY,TRIM4#
main63314-36440-A0i199301-199505
IVORY,TRIM4#; W/O(SPEAKER),IVORY,TRIM4#
main63314-36440-A1i199505-199907
IVORY,TRIM4#; W/O(SPEAKER),IVORY,TRIM4#
main63314-36440-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63314-36490-A0i199301-199505
W(2 SPEAKER),IVORY,TRIM4#
main63314-36490-A1i199907-200108
W(2 SPEAKER),IVORY,TRIM4#
main63314-36490-B0i200408-200708
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36520-A0i199301-199505
W(2 SPEAKER),IVORY,TRIM4#
main63314-36520-A1i199907-200108
W(2 SPEAKER),IVORY,TRIM4#
main63314-36520-B0i200108-200408
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36600-A0i200008-200108
IVORY,TRIM4#
main63314-36600-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63314-36630-B0i200408-200708
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36650-B0i200408-200708
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36710-B0i200708-201501
MD.CHARCOAL,TRIM1#
main63314-36720-B0i200708-201108
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36730-B0i200708-201501
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36740-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63314-36750-B0i200708-201209
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36760-B0i200708-201501
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36780-B0i200708-201501
MD.CHARCOAL,TRIM1#
main63314-36790-B0i200708-201209
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36800-B0i201501-201612
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36810-B0i200708-201501
MD.CHARCOAL,TRIM1#
main63314-36820-B0i200708-201209
W(1 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36830-B0i200708-201108
W(2 SPEAKER),MD.CHARCOAL,TRIM1#
main63314-36840-B0i200708-201501
MD.CHARCOAL,TRIM1#
main63314-36850-B0i200708-201501
MD.CHARCOAL,TRIM1#
63315AHEADLINING, ROOF, NO.5
main63315-36010-A1i199907-200108
IVORY,TRIM4#
main63315-36020-A0i199301-199505
IVORY,TRIM4#; W(RADIO),IVORY,TRIM4#
main63315-36020-A1i199907-200108
IVORY,TRIM4#
main63315-36020-B0i200408-200608
MD.CHARCOAL,TRIM1#
main63315-36050-A0i199301-199505
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63315-36050-A1i199705-199907
W(RADIO),IVORY,TRIM4#
main63315-36050-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63315-36170-A0i199907-200008
IVORY,TRIM4#
main63315-36200-A0i200008-200108
IVORY,TRIM4#
main63315-36200-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63315-36210-A0i200104-200108
IVORY,TRIM4#
main63315-36210-B0i200108-200408
MD. CHARCOAL,TRIM1#
main63315-36240-B0i200708-201501
MD.CHARCOAL,TRIM1#
main63315-36250-B0i200708-200803
MD.CHARCOAL,TRIM1#
main63315-36260-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63315-36270-B0i200708-201501
MD.CHARCOAL,TRIM1#
63316AHEADLINING, ROOF, NO.6
main63316-36020-A0i199301-199401
IVORY,TRIM4#; W(*SSBD),IVORY,TRIM4#
main63316-36020-A1i199907-200108
IVORY,TRIM4#; W(*SSBD),IVORY,TRIM4#
main63316-36020-B0i201501-201612
W(SINGLE SWING BACK DOOR),MD.CHARCOAL,TRIM1#
main63316-36050-A0i199301-199505
IVORY,TRIM4#
main63316-36050-A1i199907-200108
IVORY,TRIM4#
main63316-36050-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63316-36070-A0i199301-199505
W(*DSBD),IVORY,TRIM4#
main63316-36070-A1i199505-199907
W(*DSBD),IVORY,TRIM4#
main63316-36070-B0i200108-200408
W(*DSBD),MD.CHARCOAL,TRIM1#
main63316-36080-A0i199301-199505
IVORY,TRIM4#
main63316-36080-A1i199505-199907
IVORY,TRIM4#
main63316-36080-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63316-36090-A0i199301-199401
TAIWAN SPEC OR W(*DSBD),IVORY,TRIM4#; W(*DSBD),IVORY,TRIM4#
main63316-36090-A1i199907-200108
W(*DSBD),IVORY,TRIM4#; W(DOUBLE SWING BACK DOOR),IVORY,TRIM4#; W(DX ROOM CARTAIN & *DSBD),IVORY,TRIM4#
main63316-36090-B0i200108-200408
W(DOUBLE SWING BACK DOOR),MD.CHARCOAL,TRIM1#; W(DX ROOM CARTAIN & *DSBD),MD.CHARCOAL,TRIM1#
main63316-36100-A0i199301-199401
W(DX ROOM CARTAIN),IVORY,TRIM4#
main63316-36100-A1i199907-200108
W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4#
main63316-36100-B0i200408-201108
W(DX ROOM CARTAIN),MD.CHARCOAL,TRIM1#
main63316-36140-A0i199401-199505
W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4#
main63316-36140-A1i199907-200108
W(DELUXE ROOM CURTAIN) OR W(CURTAINRAIL ONLY),IVORY,TRIM4#; W(DX ROOM CARTAIN) OR W(CARTAINRAIL 0NLY),IVORY,TRIM4#
main63316-36140-B0i200108-200110
W(DELUXE ROOM CURTAIN) OR W(CURTAINRAIL ONLY),MD.CHARCOAL,TRIM1#
main63316-36200-A0i199301-199505
IVORY,TRIM4#
main63316-36200-A1i199907-200108
IVORY,TRIM4#
main63316-36200-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63316-36260-A0i199907-200108
IVORY,TRIM4#
main63316-36260-B0i200108-200408
MD.CHARCOAL,TRIM1#
63371BMOULDING, ROOF BOARD SET, NO.1
main63371-36020-A0i199301-199505
W(RADIO),IVORY,TRIM4#
main63371-36020-A1i199705-199907
IVORY,TRIM4#; W(BAGGAGE RACK & RADIO),IVORY,TRIM4#
main63371-36020-B0i200408-200803
MD.CHARCOAL,TRIM1#
main63371-36040-A0i199301-199505
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-A1i199907-200108
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63371-36090-A0i199907-200108
IVORY,TRIM4#
main63371-36090-B0i200408-201501
MD.CHARCOAL,TRIM1#
63372AMOULDING, ROOF BOARD SET, NO.2
main63371-36020-A0i199309-199505
IVORY,TRIM4#; W(BAGGAGE RACK & 2-SPEAKER),IVORY,TRIM4#
main63371-36020-A1i199505-199705
IVORY,TRIM4#; W(BAGGAGE RACK & 2-SPEAKER),IVORY,TRIM4#
main63371-36020-B0i200108-200211
MD.CHARCOAL,TRIM1#
main63371-36040-A0i199301-199505
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-A1i199907-200108
IVORY,TRIM4#; W(BAGGAGE RACK & 2-SPEAKER),IVORY,TRIM4#
main63371-36040-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63371-36050-A0i199301-199505
W(2 SPEAKER),IVORY,TRIM4#
main63371-36050-A1i199505-199705
W(2 SPEAKER),IVORY,TRIM4#
main63371-36050-B0i200108-200408
W(2 SPEAKER),MD.CHARCOAL,TRIM1#; W(BAGGAGE RACK),MD.CHARCOAL,TRIM1#
main63371-36070-A1i199907-200108
IVORY,TRIM4#
main63371-36080-A0i199705-199907
W(BAGGAGE RACK),IVORY,TRIM4#
main63371-36090-A0i199907-200108
IVORY,TRIM4#
main63371-36090-B0i200408-201501
MD.CHARCOAL,TRIM1#
main63371-36130-A0i200008-200108
W(BAGGAGE RACK),IVORY,TRIM4#
main63371-36130-B0i200408-200608
W(BAGGAGE RACK),MD.CHARCOAL,TRIM1#
63372DMOULDING, ROOF BOARD SET, NO.2
main63372-36020-A0i199301-199306
IVORY,TRIM4#
main63372-36021-A0i199306-199505
IVORY,TRIM4#
main63372-36021-A1×2i199505-199705
IVORY,TRIM4#
main63372-36021-B0i200108-200211
MD.CHARCOAL,TRIM1#
63373BMOULDING, ROOF BOARD SET, NO.3
main63371-36020-A0i199309-199505
IVORY,TRIM4#
main63371-36020-A1i199907-200108
IVORY,TRIM4#; W(BAGGAGE RACK & 2-SPEAKER),IVORY,TRIM4#
main63371-36020-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63371-36040-A0i199301-199505
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-A1i199907-200108
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-B0i200408-200708
MD.CHARCOAL,TRIM1#
main63371-36050-A0i199301-199505
W(2 SPEAKER),IVORY,TRIM4#
main63371-36050-A1i199705-199907
W(2 SPEAKER),IVORY,TRIM4#
main63371-36050-B0i200408-201501
W(BAGGAGE RACK),MD.CHARCOAL,TRIM1#
main63371-36070-A1i199907-200108
IVORY,TRIM4#
main63371-36080-A0i199907-200108
W(BAGGAGE RACK),IVORY,TRIM4#
main63371-36090-A0i199907-200108
IVORY,TRIM4#
main63371-36090-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63371-36130-A0i200008-200108
W(BAGGAGE RACK),IVORY,TRIM4#
main63371-36130-B0i200108-200408
W(BAGGAGE RACK),MD.CHARCOAL,TRIM1#
63374MOULDING, ROOF BOARD SET
main63371-36020-A0i199301-199309
IVORY,TRIM4#
main63371-36020-A1i199705-199907
IVORY,TRIM4#; W(BAGGAGE RACK & RADIO),IVORY,TRIM4#
main63371-36020-B0i200108-200408
MD.CHARCOAL,TRIM1#
main63371-36040-A0i199301-199505
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-A1i199907-200108
IVORY,TRIM4#; W(RADIO & CASSETTE),IVORY,TRIM4#
main63371-36040-B0i201501-201612
MD.CHARCOAL,TRIM1#
main63371-36090-A0i199907-200108
IVORY,TRIM4#
main63371-36090-B0i200408-200608
MD.CHARCOAL,TRIM1#
63379BCOVER, ROOF HEADLINING MOULDING END
main63373-36020-A0×2i199301-199309
IVORY,TRIM4#,FRONT-RH,REAR-LH
main63373-36020-A1×2i199705-199907
IVORY,TRIM4#,FRONT-RH,REAR-LH; W(BAGGAGE RACK & RADIO),IVORY,TRIM4#,FRONT-RH,REAR-LH; W(BAGGAGE RACK),IVORY,TRIM4#,FRONT-RH,REAR-LH
main63373-36020-B0×2i201501-201612
MD.CHARCOAL,TRIM1#,FRONT RH,REAR LH
main63373-36040-A0×2i199301-199505
IVORY,TRIM4#,FRONT-RH,REAR-LH; W(RADIO & CASSETTE),IVORY,TRIM4#,FRONT-RH,REAR-LH
main63373-36040-A1×2i199907-200108
IVORY,TRIM4#,FRONT-RH,REAR-LH; W(RADIO & CASSETTE),IVORY,TRIM4#,FRONT-RH,REAR-LH
main63373-36040-B0×2i201501-201612
MD.CHARCOAL,TRIM1#,FRONT RH,REAR LH
main63374-36010-A0×2i199309-199505
IVORY,TRIM4#,FRONT-LH,REAR-RH
main63374-36010-A1×2i199505-199907
IVORY,TRIM4#,FRONT-LH,REAR-RH; W(RADIO),IVORY,TRIM4#,FRONT-LH,REAR-RH
main63374-36010-B0×2i200408-201108
MD.CHARCOAL,TRIM1#,FRONT LH,REAR RH
main63374-36030-A0×2i199301-199505
IVORY,TRIM4#,FRONT-LH,REAR-RH; W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH
main63374-36030-A1×2i199907-200108
IVORY,TRIM4#,FRONT-LH,REAR,RH; IVORY,TRIM4#,FRONT-LH,REAR-RH; W(ROOF HEADLINING FOR SPEAKER),IVORY,TRIM4#,FRONT-LH,REAR,RH
main63374-36030-B0×2i201501-201612
MD.CHARCOAL,TRIM1#,FRONT LH,REAR RH
main63379-36010-A0×2i199301-199505
IVORY,TRIM4#,CENTER
main63379-36010-A1×4i199907-200108
IVORY,TRIM4#; IVORY,TRIM4#,CENTER
main63379-36010-B0×2i201501-201612
MD.CHARCOAL,TRIM1#,CENTER
63381ERETAINER, ROOF HEADLINING TRIM, FRONT
main63381-36010×3i200408-200708
DRIVER SIDE
main63381-36020×2i200408-201501
DRIVER SIDE
main63385-36010×3i199907-200211
PASSENGER SIDE
63383CRETAINER, ROOF HEADLINING TRIM, REAR
main63384-36010i199907-200108
DRIVER SIDE
main63384-36020i199907-200108
DRIVER SIDE
main63385-36010i199907-200108
PASSENGER SIDE
63383DRETAINER, ROOF HEADLINING, REAR
main63309-36010i199907-200108
W(DOUBLE SWING BACK DOOR)
main63309-36020i199907-200108
W(SINGLE SWING BACK DOOR)
main63383-36010i200408-200708
main63383-36020×4i199907-200408
TAIWAN SPEC OR W(*DSBD); W(DOUBLE SWING BACK DOOR); W(SINGLE SWING BACK DOOR)
63384BBRACKET, ROOF HEADLINING TRIM RETAINER
main63384-36030i201501
main63384-36040i199907-200408
63384CRETAINER, ROOF HEADLINING TRIM SIDE, NO.1
main63385-36010×2i200408-201501
63385BRETAINER, ROOF HEADLINING TRIM SIDE, NO.1
main63385-36010×2i201501
63399CCLIP, ROOF HEADLINING
main63399-36020×16i200610-200708
W(BAGGAGE RACK),YELLOW; YELLOW
main63399-37010×6i200610-200708
WHITE
63651BNET, AIR INTAKE
main63651-36010-A0i199301-199505
IVORY,TRIM4#
main63651-36010-A1i199505-199801
IVORY,TRIM4#
main63651-36011-A1i199801-199907
IVORY,TRIM4#
main63651-36011-B0i200108-200211
MD.CHARCOAL,TRIM1#
63656DCOVER, AIR INTAKE, CENTER
main63656-36010-A0i199801-199907
IVORY,TRIM4#
main63656-36010-B0i200108-200211
MD.CHARCOAL,TRIM1#
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
9015950351
main90159-50351
9155380825
main91553-80825
9356015014
main93560-15014
9356855016
main93568-55016

31 parts on this diagram · 7 diagrams in section

ROOF HEADLINING & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
