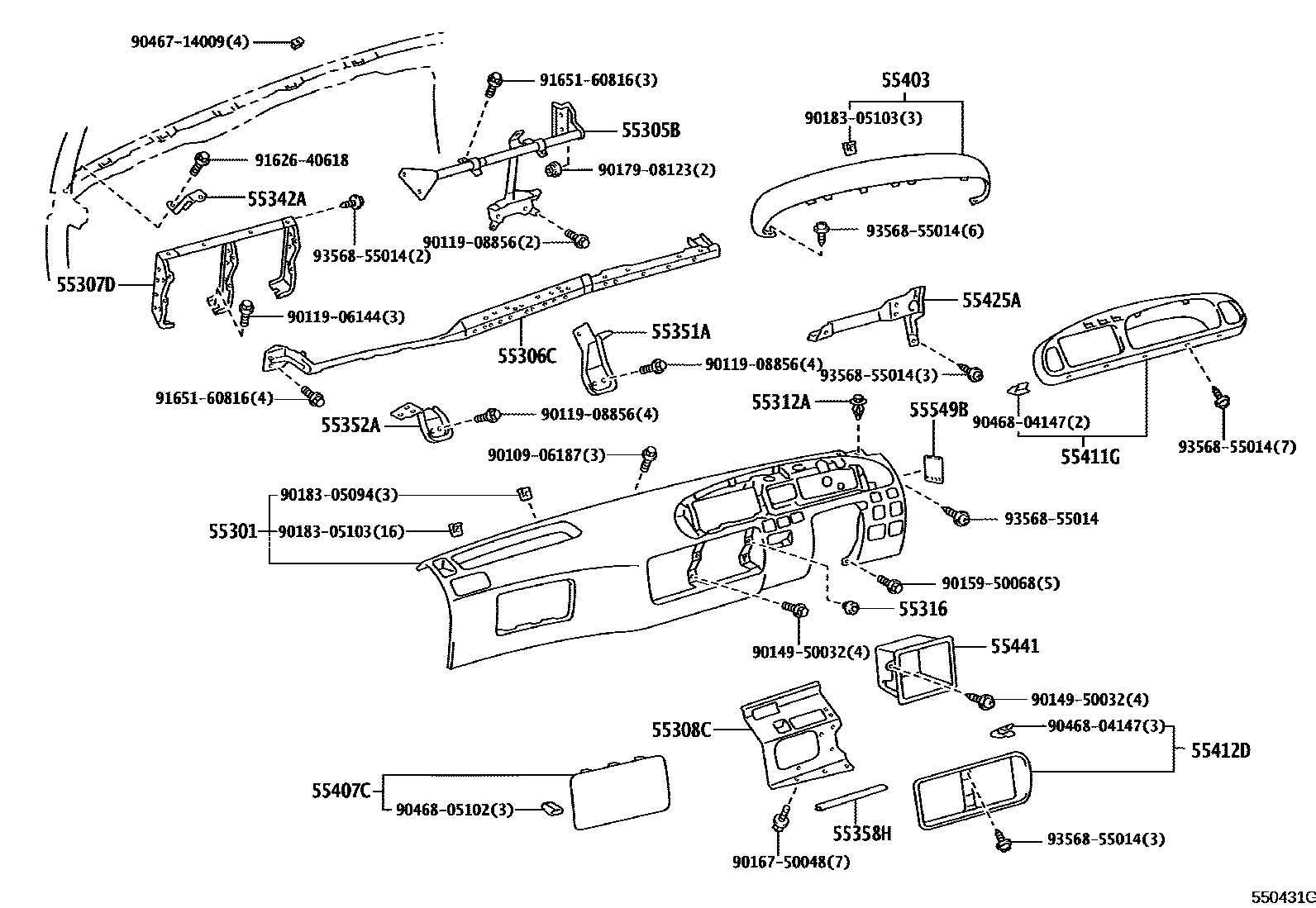

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-36010-B0iBB42,50,59,BZB40,50,HZB50..RHD..GEN200108-200408

DK.CHARCOAL,TRIM1#

main55301-36010-E0iBB4#,50,HZB50..RHD199301-199907

GREIGE,TRIM4#

main55301-36012-B0iBB42,50,59,BZB40,50,HZB50,XZB5#..RHD..GEN200512-200705

DK.CHARCOAL,TRIM1#

main55301-36013-B0iBB42,BZB40,50,HZB50,XZB5#..RHD..GEN200705-200708

DK.CHARCOAL,TRIM1#

main55301-36020-B0iBB50,RZB40,50..CHI200108-200211

DK.CHARCOAL,TRIM1#

main55301-36020-E0iBB42,5#,HZB50,RZB40,50..LHD199301-199907

GREIGE,TRIM4#

main55301-36021-B0iRZB40,50200705-200708

DK.CHARCOAL,TRIM1#

main55301-36022-B0iBB42,50,HZB50,TRB40,50,XZB50..LHD200805-200812

DK.CHARCOAL,TRIM1#

main55301-36023-B0iBB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU200901-201209

DK.CHARCOAL,TRIM1#

main55301-36060-B0iHZB50..ARL200108-200211

DK.CHARCOAL,TRIM1#

main55301-36060-E0iHZB50..22S199907-200108

GREIGE,TRIM4#

main55301-36061-B0iBB50,XZB50..RHD..(ARL,EUR)200512-200705

DK.CHARCOAL,TRIM1#

main55301-36062-B0iXZB50..RHD..IV200705-200812

DK.CHARCOAL,TRIM1#

main55301-36063-B0iXZB50..RHD..IV200901-201311

DK.CHARCOAL,TRIM1#

main55301-36090-B0iBB42,BZB40,50,HZB50,XZB40,5#..RHD..GEN..5F200708-200812

DK.CHARCOAL,TRIM1#

main55301-36091-B0iBZB40,50,XZB40,5#..GEN..5F200901-201108

DK.CHARCOAL,TRIM1#

main55301-36100-B0iXZB50..ARL;XZB50..GEN..4FC200708-200812

DK.CHARCOAL,TRIM1#

main55301-36101-B0iXZB50..WOC..CBU200901-200903

DK.CHARCOAL,TRIM1#

main55301-36120-B0iBB42,50,HZB50,TRB40,50,XZB50..LHD..CBU201209-201501

DK.CHARCOAL,TRIM1#

55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1

main55305-36010iBB4#,50,HZB50..RHD199301-199907

main55305-36011iHZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

main55305-36012iXZB50..RHD..IV200708-201311

main55305-36020iBB42,5#,HZB50,RZB40,50..LHD199301-199907

main55305-36021iBB50,58..LHD..TDEFI200408-200608

main55305-36022iBB42..LHD..HRF200705-201108

main55305-36030iHZB50..ARL199907-200211

main55305-36031iXZB50..WOC..CBU200705-200908

55306CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.2

main55306-36020iHZB50..ARL199907-200211

main55306-36022iBZB50..EX;BB50,59..RHD200604-200608

main55306-36023iBB42,BZB40,50,HZB50,XZB5#..RHD..(ARL,GEN)200704-200708

main55306-36024iXZB50..WOC..CBU200708-200908

main55306-36025iBB42,BZB40,50,HZB50,XZB40,5#..RHD201012-201206

main55306-36026iXZB50..RHD..IV201207-201311

main55306-36030iBB42,50,HZB50,RZB40,50..LHD199301-199705

main55306-36040iBB50,RZB40,50..CHI199907-200211

main55306-36042iBB50,58..LHD..TDEFI200604-200608

main55306-36043iBB42,50,HZB50,TRB40,50,XZB50..LHD200708-201009

main55306-36044iBB42..LHD..HRF201010-201108

main55306-36045iXZB50..LHD..IV201203-201311

55307DREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.3

main55307-36010iBB4#,5#,HZB50,RZB40,50199301-199907

main55307-36020iXZB50..WOC..CBU200708-200908

main55307-36040iBB42,50,HZB50,TRB40,50,XZB50..LHD..CBU201209-201501

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-36010iBB4#,50,HZB50..RHD199301-199705

main55308-36011iHZB50..ARL199907-200211

main55308-36012iXZB50..WOC..CBU200708-200908

main55308-36013iBB42,BZB40,50,HZB50,XZB40,5#..RHD201012-201208

main55308-36014iXZB50..RHD..IV201209-201311

main55308-36020iBB50,58..LHD..TDEFI200408-200608

main55308-36021iBB42..LHD..HRF200708-201108

main55308-36022iXZB50..LHD..IV201209-201311

55312ACLIP, INSTRUMENT PANEL

main90467-07071-E3iBB50..EX;BB50..WOC..5F;BB50..STD..CBU;BB4#,58,HZB50,RZB40,50199907-200108

GREIGE,TRIM4#

main90467-07071-P3iBB50..TDEFI200105-200108

DK.CHARCOAL,TRIM1#

55316SPACER, INSTRUMENT PANEL, NO.2

main55316-36010×2iBB4#,5#,HZB50,RZB40,50199705-199907

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-36010iBB4#,50,HZB50..RHD199301-199808

main55342-36020iBB42,5#,HZB50,RZB40,50..LHD199301-199806

main55342-36030iHZB50..ARL199907-200211

main55342-36040iBB50,58..LHD..TDEFI200408-200608

main55342-36050iXZB50..WOC..CBU200708-200903

main55342-36060iBB42..LHD..HRF200705-201108

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-36010iHZB50..ARL199907-200211

main55351-36020iBB50,58..LHD..TDEFI200408-200608

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-36010iHZB50..ARL199907-200211

main55352-36020iBB50,58..LHD..TDEFI200408-200608

55358HPROTECTOR, INSTRUMENT PANEL

main55358-36010iBB4#,5#,HZB50,RZB40,50199301-199907

55403HOOD SUB-ASSY, METER

main55421-36010-B0iHZB50..ARL200108-200211

DK.CHARCOAL,TRIM1#

main55421-36010-E0iBB4#,50,HZB50..RHD199301-199907

GREIGE,TRIM4#

main55421-36020-B0iBB50,RZB40,50..CHI200108-200211

DK.CHARCOAL,TRIM1#

main55421-36020-E0iBB42,5#,HZB50,RZB40,50..LHD199301-199907

GREIGE,TRIM4#

main55421-36030-B0iBB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN)200708-201501

DK.CHARCOAL,TRIM1#

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-36010-B0iHZB50..ARL200108-200211

DK.CHARCOAL,TRIM1#

main55407-36010-E0iBB4#,50,HZB50..RHD199301-199907

GREIGE,TRIM4#

main55407-36020-B0iBB50,RZB40,50..CHI200108-200211

DK.CHARCOAL,TRIM1#

main55407-36020-E0iBB42,5#,HZB50,RZB40,50..LHD199301-199907

GREIGE,TRIM4#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-36010iHZB50..ARL199907-200211

main55411-36020iBB50,58..LHD..TDEFI200408-200608

W(FRONT HEATER)

main55411-36030iBB42..RHD..SRF;BB42,HZB50..RHD..HRF..STD..WC..GEN..5F199907-200408

main55411-36040iBB42..LHD..HRF200408-201108

main55411-36050iXZB50..WOC..CBU200708-200908

W(FRONT HEATER)

main55411-36060iBB42,HZB50..RHD200708-201404

main55411-36070iBB42,BZB40,50,HZB50,XZB40,5#..RHD201404-201501

W(FRONT HEATER)

main55411-36080iBB42,HZB50..RHD201404-201501

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-36010-E0iBB4#,RZB40,50;HZB50..ARL,EUR,GCC,GEN199301-199505

GREIGE,TRIM4#

main55412-36011-B0iBB50..TDEFI200105-200108

DK.CHARCOAL,TRIM1#

main55412-36011-E0iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

GREIGE,TRIM4#

main55412-36012-B0iBB42..LHD..SRF;BB50,HZB50,TRB40,50..LHD200708-201209

DK.CHARCOAL,TRIM1#

main55412-36020-E0iBB4#,HZB50,RZB40,50..CBU199301-199505

W(MICROPHONE),GREIGE,TRIM4#

main55412-36021-B0iBB50,BZB50..21S200211-200408

DK.CHARCOAL,TRIM1#

main55412-36021-E0iBB50..EX;BB50..STD..CBU;BB42,58,HZB50,RZB40,50199907-200108

W(MICROPHONE),GREIGE,TRIM4#

main55412-36022-B0iBB42..LHD..SRF;BB50,HZB50,TRB40,50,XZB50..LHD..CBU200708-201209

W(MICROPHONE),DK.CHARCOAL,TRIM1#

main55412-36030-B0iBB42,50,HZB50,TRB40,50..LHD201209-201405

DK.CHARCOAL,TRIM1#

main55412-36031-B0iBB42,50,HZB50,TRB40,50..LHD201406-201501

DK.CHARCOAL,TRIM1#

main55412-36040-B0iBB42,50,HZB50,TRB40,50,XZB50..LHD..CBU201209-201405

W(MICROPHONE),DK.CHARCOAL,TRIM1#

main55412-36041-B0iBB42,50,HZB50,TRB40,50,XZB50..LHD201406-201501

W(MICROPHONE),DK.CHARCOAL,TRIM1#

55425ABRACKET, METER HOOD SET

main55425-36010iHZB50..ARL199907-200211

main55425-36020iBB50,58..LHD..TDEFI200408-200608

main55425-36030iXZB50..WOC..CBU200708-200908

main55425-36031iBB42,BZB40,50,HZB50,XZB40,5#..RHD..(ARL,GEN)201102-201501

55441BOX, INSTRUMENT PANEL

main55441-36010iBB50..IV..6F199907-200105

main55441-36020iBB42,50,HZB50,TRB40,50..LHD201209-201501

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-36010-B0iHZB50..22S;BB50..RHD..6F199907-200408

DK.CHARCOAL,TRIM1#

9010906187

main90109-06187

9011906144

main90119-06144

9011908856

main90119-08856

9014950032

main90149-50032

9015950068

main90159-50068

9016750048

main90167-50048

9017908123

main90179-08123

9018305094

main90183-05094

9018305103

main90183-05103

9046714009

main90467-14009

9046804147

main90468-04147

9046805102

main90468-05102

9162640618

main91626-40618

9165160816

main91651-60816

9356855014

main93568-55014

33 parts on this diagram · 8 diagrams in section
