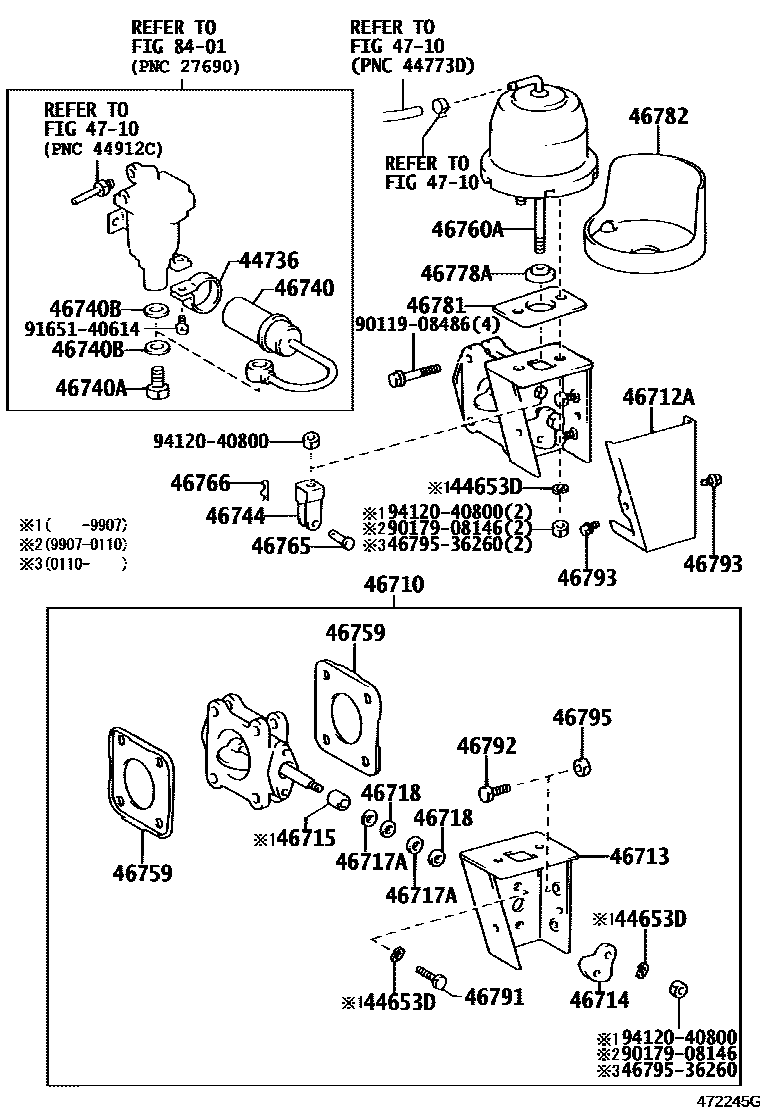

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0002 1

44653DWASHER, EXHAUST VALVE COVER

main44653-55010×2iBB40,42; BB43,5#,HZB50199301-199907

44736BRACKET, AIR CLEANER

main44736-36050iBB50,HZB50..ARL,CHI199907-200211

46710VALVE ASSY, EXHAUST BRAKE

main46710-36080iBB42..22S;BB42..WOC..GCC;BB42..RHD..HRF..WOC199907-200108

main46710-36170iBB43,5#,HZB50199301-199907

main46710-36250iBB42201501

main46710-36260iBB58,59;HZB50..LHD..EX;HZB50..LHD..WOC;BB50..EX..TDEFI;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN)199907-200408

main46710-36270iXZB40,5#200608-201501

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iBB4#,5#,HZB50199301-199907

main46712-36270iBB42,5#,HZB50200110-200408

46713BRACKET, EXHAUST VALVE

main46713-36060iBB4#,5#,HZB50199301-199907

main46713-36270iBB50,HZB50..ARL,CHI200110-200211

46714LEVER, EXHAUST VALVE

main46714-36010iBB50,HZB50..ARL,CHI199907-200211

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBB4#,5#,HZB50199301-199907

L=16.0

main46715-36060iBB4#,5#,HZB50199301-199907

L=20.5

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

main46717-36270×2iXZB40,59;XZB50..(20S,21S)..WC200608-201501

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

main46718-36270×2iXZB40,59;XZB50..(20S,21S)..WC200608-201501

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36090iBB4#,5#,HZB50199301-199907

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBB4#,5#,HZB50199301-199907

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBB42..RHD;BB42..LHD..SRF;XZB50..(20S,21S)..WC;BB50,HZB50,XZB40,59..DCR,DSL,TD200408-201501

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBB5#..TDEFI;BB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..WOC..ARL;BB50..LHD..CBU..5F;BB42..HRF..26S..WC;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;HZB50..HRF..(DX,STD)..WC..5F199907-200110

main46774-36270iBB42..LHD..HRF200408-201108

46759GASKET, EXHAUST RETARDER

main46759-36030×2iBB42201501

main46759-36040×2iBB5#..TDEFI200408-200608

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36250iBB4#,5#,HZB50199301-199907

main46760-36260iBB50,HZB50..ARL,CHI200110-200211

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBB4#,5#,HZB50199301-199907

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBB4#,5#,HZB50199301-199907

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iBB5#..TDEFI200408-200608

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

main46781-36060iBB4#,5#,HZB50199301-199907

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iBB42,HZB50,XZB40,5#201501

46791BOLT, EXHAUST VALVE COVER

main46791-25041×4iBB42; HZB50,XZB40,5#201501

main46791-36010×4iBB40,42199301-199907

main91611-B0816×2iBB5#..TDEFI;HZB50..LHD..EX;HZB50..LHD..WOC;HZB50..WOC..ARL;BB50..LHD..CBU..5F;HZB50..LHD..SRF..WC;HZB50..HRF..(DX,STD)..WC..5F199907-200110

main91612-60816×2iBB43,5#,HZB50199301-199907

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iBB42,HZB50,XZB40,5#201501

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBB4#,5#,HZB50199301-199907

4710EXHAUST BRAKE TUBE & CLAMP

→ Go to FIG 47-10

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4679536260NUT, EXHAUST VALVE BRACKET

main46795-36260

9011908486

main90119-08486

9017908146

main90179-08146

9165140614

main91651-40614

9412040800

main94120-40800

31 parts on this diagram · 2 diagrams in section
