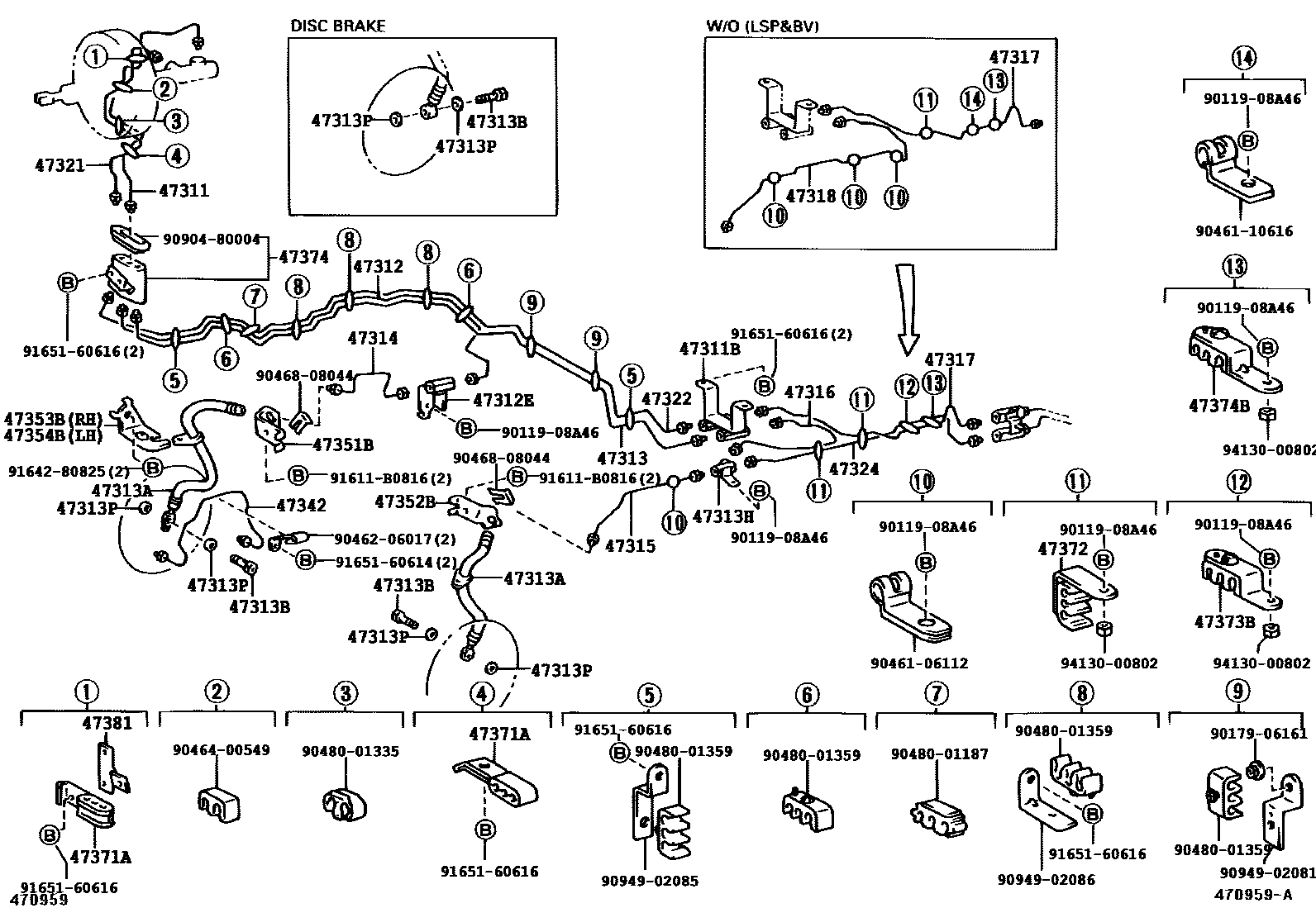

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1W(ABS) 0006 1 0008 1 0010 1 0011 1 0012 1W(ABS) 0014 1W(ABS) 0015 1W(ABS) 0017 1W(ABS) 0018 1 0019 1 0020 1 0021 1 0022 1W(ABS) 0023 1W(LSPV) 0025 1W(LSPV) 0027 1W(DISC BRAKE) 0029 1 0030 1W(LSPV) 0031 1W(DISC BRAKE) 0032 1W(ABS) 0034 1W(ABS) 0035 1 0036 1 0037 1 0038 1 0041 1 0043 1W(ABS) 0044 1W(ABS) 0045 1W(ABS) 0047 1W(ABS) 0051 1 0052 1 0054 1 0055 1W(ABS) 0056 1 0057 1W(ABS) 0063 1W(ABS) 0064 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36480iBB4#,50,HZB50..RHD199301-199907

main47311-36500iBB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD199301-199907

main47311-36520iBB50..LHD..EUR199605-199907

main47311-36530iBB50..WC..CBU199705-199907

main47311-36541iHZB50..RHD..EX;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199907-201501

main47311-36551iBB50..RHD..6F199907-201501

main47311-36561iBB50,RZB40,50..CHI199907-200608

main47311-36562iBB42..LHD..HRF200608-201501

main47311-36581iBB50..LHD..TDEFI199907-200608

main47311-36582iHZB50..LHD..HRF..WC..GEN200908-201108

JORDAN SPEC

main47311-36582iXZB50..LHD..IV200608-201108

main47311-36583iXZB50..TAIW201108-201501

JORDAN SPEC

main47311-36583iXZB50..LHD..IV201108-201311

main47311-36583iTRB50..GCC;HZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC201209-201501

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-12045iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

main90412-12047iBB50..STD..CBU;BB50,HZB50..EUR199301-199907

main90904-12083iXZB50..WOC..CBU199907-201501

47312TUBE, FRONT BRAKE, NO.2

main47312-36270iBB4#,HZB50,RZB40,50..CBU199301-199705

main47312-36271iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50199705-199907

main47312-36301iBB50..STD..WC..IV..5F199907-200708

main47312-36350iXZB5#..GEN,TAIW200608-200708

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10210iBB50..STD..WC..IV..5F199301-200708

main90413-10271iBB50..WC..CBU199705-199907

main90413-10282iBB50,HZB50..EUR199301-199907

main90904-12061iXZB50..TAIW200708-201501

main90904-13517iXZB50..TAIW200908-201501

JORDAN SPEC

main90904-13517iBZB40,50,XZB40,5#..GEN200608-201501

main90904-13517iTRB50..GCC;HZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC199907-201501

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-36250iBB4#,HZB50,RZB40,50..CBU199301-199705

main47313-36251iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50199705-199907

main47313-36260iBB50,HZB50..TD199301-199705

main47313-36261iBB50..EUR;BB50..WC..CBU199705-199907

main47313-36311iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;BB59,BZB40,50,RZB50..GCC199907-200708

main47313-36321iBB50..CBU..6F199907-200608

main47313-36360iXZB50..ARL,EUR,TAIW200608-200708

main47313-36370iXZB5#..GEN200609-200708

main47313-36380iBB42..RHD;BB42..LHD..SRF;BB50,BZB40,50,HZB50,TRB40,50200708-201501

main47313-36390iXZB50..WOC..CBU200708-201108

main47313-36400iXZB50..STD..GEN200708-201501

main47313-36440iXZB50..IV201108-201501

sub47313-36450

main47313-36441iXZB40,50..21S,26S,30S201501

sub47313-36451

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02707iBB4#,5#,HZB50,RZB40,50199301-199907

W(FR DISC BRAKE:RR AUTO ADJUSTER)

main90947-02708iBB50..WOC..GEN;BB42,43,58,RZB40;BB50,HZB50..20S,30S199301-199907

main90947-02708iHZB50..4FC199705-199907

W(RR AUTO ADJUSTER)

main90947-02B91iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;BB58,59,RZB50..GCC,GEN;BB50..(21S,30S)..(ARL,GEN);HZB50,RZB40..LHD..WOC..GE199907-201501

W(FRONT DISC BRAKE)

main90947-02B91iBZB40,50,XZB40201108-201501

main90947-02B92iBB50..STD..WC..IV..5F199907-200501

main90947-02E22iRZB40..HRF..GCC200501-201501

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iXZB50..STD..GEN199301-201501

main90401-10015iHZB50..4FC199705-200108

W(RR AUTO ADJUSTER)

main90401-10023iBB58,59;BB50..6F;BB50,BZB50..EX199907-201501

W(FRONT DISC BRAKE)

main90401-10023iBZB40,50,XZB40201108-201501

main90401-10023iBB4#,5#,HZB50,RZB40,50199301-199907

W(FR DISC BRAKE:RR AUTO ADJUSTER)

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10270iBB50..ARL199301-200304

main90413-10317iXZB50..TAIW200708-201501

main90413-12008iBB50,HZB50..EUR199301-199907

main90904-12061iHZB50..LHD;TRB50..GCC;XZB50..DX,STD200302-201501

W(ABS)

main90904-12061iBB50..WC..CBU199705-201501

main90904-12061iXZB50..TAIW200908-201501

JORDAN SPEC

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

47314TUBE, FRONT BRAKE, NO.4

main47314-36300iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

main47314-36310iBB50,HZB50..EUR199301-199907

main47314-36371iBB59;BB50,58,BZB50..(20S,21S,23S)..GEN200408-200708

W(FRONT DISC BRAKE)

main47314-36371iBB50..STD..WC..IV..5F199907-200412

main47314-36410iXZB59;XZB50..(20S,21S)..(GEN,TAIW)200608-200708

W(FRONT DISC BRAKE)

main47314-36430iBB50..5F..TDEFI;BB58,BZB50..21S,23S200501-200708

main47314-36440iXZB50..GEN,TAIW200608-200708

47315TUBE, FRONT BRAKE, NO.5

main47315-36210iHZB50..4FC199705-199907

W(AUTO ADJUSTER)

main47315-36210iBB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S199301-199907

main47315-36220iHZB50..TD;HZB50..19S,22S;BB40,50..ARL,EUR199301-199907

main47315-36261iBB50,HZB50,RZB40,50..ARL,CHI199907-200304

main47315-36271iHZB50..4FC199907-200108

W/O(LSPV)

main47315-36271iBB50..STD..WC..IV..5F199907-200105

main47315-36310iBB50..GEN..5F;BB42,58,59,BZB40,50,HZB50,RZB40,50..GCC,GEN200108-200412

main47315-36310iRZB40..HRF..GCC200408-200708

W(FRONT DISC BRAKE)

main47315-36320iBB50..5F..TDEFI;BB58,BZB50..21S,23S200501-200708

main47315-36330iBB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,HZB50,TRB40,50200708-201501

W(FRONT DISC BRAKE)

main47315-36340iXZB50..STD..GEN200708-201501

47316TUBE, FRONT BRAKE, NO.6

main47316-36260iBB40,HZB50..19S,22S199301-199907

main47316-36270iBB50,HZB50..EUR199301-199907

main47316-36301iHZB50..4FC199907-200304

47317TUBE, FRONT BRAKE, NO.7

main47317-36120iBB40,HZB50..19S,22S199301-199907

main47317-36130iBB50,HZB50..EUR199301-199907

main47317-36161iBB50..ARL199907-200304

main47317-36171iBZB40,50,XZB40,5#..RHD..GEN200408-201501

main47317-36171iBB50..RHD..IV199907-200408

W(ABS)

47318TUBE, FRONT BRAKE, NO.8

main47318-36200iHZB50..19S,22S;BB50,HZB50..EUR199301-199907

main47318-36210iBB40199301-199907

main47318-36270iBB50..WC..CBU199705-199907

main47318-36281iBB50,HZB50,RZB50..ARL,CHI199907-200304

main47318-36291iRZB40..CHI200012-200211

main47318-36321iBB50..LHD..IV..TDEFI199907-201311

main47318-36331iBB50..RHD..6F199907-200105

main47318-36380iBB50..RHD..IV..TDEFI200105-200608

W(ABS)

main47318-36380iBZB50,XZB50..GEN200608-201501

main47318-36390iBZB40,XZB40201108-201501

main47318-36410iXZB50..TAIW200908-201501

JORDAN SPEC

main47318-36410iBB50..CBU..6F200302-201501

W(ABS)

main47318-36410iXZB50..WOC..CBU200608-201501

main47318-36420iXZB59201108-201501

47321TUBE, REAR BRAKE, NO.1

main47321-36300iBB4#,50,HZB50..RHD199301-199907

main47321-36320iBB50..GEN..IV;BB42,58,HZB50,RZB40,50..LHD199301-199907

main47321-36340iBB50..LHD..EUR199605-199907

main47321-36350iBB50..WC..CBU199705-199907

main47321-36361iBB42,HZB50..RHD199907-201501

main47321-36371iXZB50..WC..ARL;XZB50..GEN..4FC199907-201501

main47321-36381iBB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;RZB40..(17S,26S)..WC..(GCC,GEN);BB50,58,HZB50,RZB50..LHD..(20S,23S,30S)..(GCC,GEN)199907-200608

main47321-36382iRZB40,50200608-201501

main47321-36411iBB50..LHD..IV..6F199907-200608

main47321-36412iXZB50..LHD..IV200608-201108

main47321-36412iXZB50..TAIW200908-201108

JORDAN SPEC

main47321-36413iTRB50..GCC;HZB50,XZB50..LHD201209-201501

W(ABS)

main47321-36413iXZB50..LHD..IV201108-201311

main47321-36413iXZB50..TAIW201108-201501

JORDAN SPEC

47322TUBE, REAR BRAKE, NO.2

main47322-36330iBB4#,HZB50,RZB40,50..CBU199301-199705

main47322-36331iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50199705-199907

main47322-36340iBB50,HZB50..TD199301-199705

main47322-36341iBB50..EUR;BB50..WC..CBU199705-199907

main47322-36401iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB4#,RZB40..(17S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200708

main47322-36411iBB50..IV..6F199907-200608

main47322-36460iXZB50..ARL,EUR,TAIW200608-200708

main47322-36470iXZB5#..GEN200609-200708

main47322-36480iBB42,BZB40,50,HZB50,TRB40,50200708-201501

main47322-36490iXZB50..WOC..IV;XZB50..WC..(ARL,EUR,TAIW)200708-201108

main47322-36500iXZB40,5#..RHD..GEN200708-201501

main47322-36540iXZB50..21S201108-201501

sub47322-36550

main47322-36541iXZB40,50..21S,26S,30S201501

sub47322-36551

47324TUBE, REAR BRAKE, NO.4

main47324-36290iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

main47324-36310iBB50,HZB50..EUR199301-199907

main47324-36361iBB50..STD..WC..IV..5F199907-200708

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36090iBB42..WC..GCC;BB42..SRF..GEN;BB50..EX..TDEFI;BB42..LHD..HRF..WOC;HZB50..LHD..SRF..WC;BB50..STD..GEN..CBU..5F;HZB50,RZB40..LHD..WOC..GEN;HZB50,RZB40..LHD..(17S,20S,2199301-200408

main47342-36091iBB42..RHD;BB42..LHD..SRF;BB50,HZB50,TRB40..26S,30S200408-201501

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-36210iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199301-201501

main47351-36240iRZB40..GEN;RZB40..SRF..GCC200501-201501

NO.1

main47351-36250iBB42,HZB50,TRB40,XZB40,50..26S,30S200501-201501

NO.2

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-36200iXZB50..WOC..CBU199301-201501

main47352-36230iXZB50..TAIW200501-201501

NO.1

main47352-36240iXZB50..STD..GEN200501-201501

NO.2

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-36190iBB4#,5#,HZB50,RZB40,50199301-199907

main47353-36230iBB50..IV..6F199907-201501

main47353-36230iTRB50..GCC;HZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC201209-201501

W(ABS)

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-36210iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#199301-201501

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-36090iBB4#,5#,HZB50,RZB40,50199301-201501

47371ACLAMP, BRAKE TUBE, NO.1

main47371-36040iBB42,5#,HZB50,RZB40,50..LHD199301-199907

main47371-36110iXZB50..TAIW200908-201501

JORDAN SPEC

main47371-36110iBB50..6F;XZB50..ARL,EUR;XZB50..GEN..4FC199907-201501

main47371-36110iHZB50..LHD;TRB50..GCC;BZB40,50,XZB40,5#..HRF201209-201612

W(ABS)

main47373-35040iBB50,RZB40,50..CHI200210-201612

main47373-36040iBB50..STD..WC..IV..5F199907-200210

sub47373-35040

47372CLAMP, BRAKE TUBE, NO.2

main47371-36060iBB50..GEN..IV;BB42,43,58,RZB40,50;BB50,HZB50..20S,30S199301-199907

main47371-36060iHZB50..4FC199705-199907

W(RR AUTO ADJUSTER)

main47371-36090iBB50..WC..CBU199705-199907

main47371-36100iBB42..LHD..HRF199907-201501

main47373-35040iXZB50..WOC..CBU200210-201501

main47373-36040iBB50..RHD..6F199907-200210

sub47373-35040

47373BCLAMP, BRAKE TUBE, NO.3

main47372-36050iHZB50..19S,22S;BB40,50..ARL,EUR199301-199907

main90949-01536iBB50..LHD..IV..6F199907-200408

W/O(LSPV)

main90949-01536iBB50,HZB50,RZB40,50..ARL,CHI199907-201501

main90949-01536iBB50..ARL;BB50..LHD..TDEFI200302-201501

W(ABS)

main90949-01536iXZB50..STD..GEN200708-201501

NO.2

main90949-01536iXZB50..TAIW200908-201501

JORDAN SPEC

main90949-01D59iXZB50..STD..GEN200708-201501

NO.1

47374CONNECTOR, TUBE

main47307-36010iBB50..EX;BB50..GEN..IV;BB4#,58,HZB50,RZB40,50..CBU199301-199907

main47307-36020iHZB50..TD199301-199405

sub47307-36030

main47307-36030iBB50..STD..CBU;BB50,HZB50..EUR199405-199907

main47307-36080iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,199907-200708

main47307-36090iBB50..CBU..6F199907-200608

W(ABS)

main47307-36090iXZB50..ARL,EUR200608-200708

main47307-36100iBB42..LHD..HRF200708-201501

47374BCLAMP, BRAKE TUBE, NO.4

main47371-28020iXZB50..STD..GEN200708-201501

main47371-35130iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..199907-200708

main47371-36050iHZB50..19S,22S;BB50,HZB50..EUR199301-199907

NO.1

main47372-36060iBB43;BB50..WOC..GEN..IV199711-199907

main47372-36060iBB50..EX;BB50..EUR;BB50..WC..GEN..IV;BB40,42,58,HZB50,RZB40,50199301-199907

NO.2

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-36120iBB4#,5#,HZB50,RZB40,50199301-201108

main47381-36120iBB50..STD..WC..IV..5F199907-201501

NO.1

main47381-36160iBB42..WOC;BB42..RHD..HRF;BB42..LHD..SRF..WC;BB50,BZB40,50,HZB50199907-201501

NO.2

9011908A46

main90119-08A46

9017906161

main90179-06161

9046106112

main90461-06112

9046110616

main90461-10616

9046206017

main90462-06017

9046400549

main90464-00549

9046808044

main90468-08044

9048001187

main90480-01187

9048001335

main90480-01335

9048001359

main90480-01359

9090480004

main90904-80004

9094902081

main90949-02081

9094902085

main90949-02085

9094902086

main90949-02086

91611B0816

main91611-B0816

9164280825

main91642-80825

9165160614

main91651-60614

9165160616

main91651-60616

9413000802

main94130-00802

48 parts on this diagram · 43 diagrams in section
