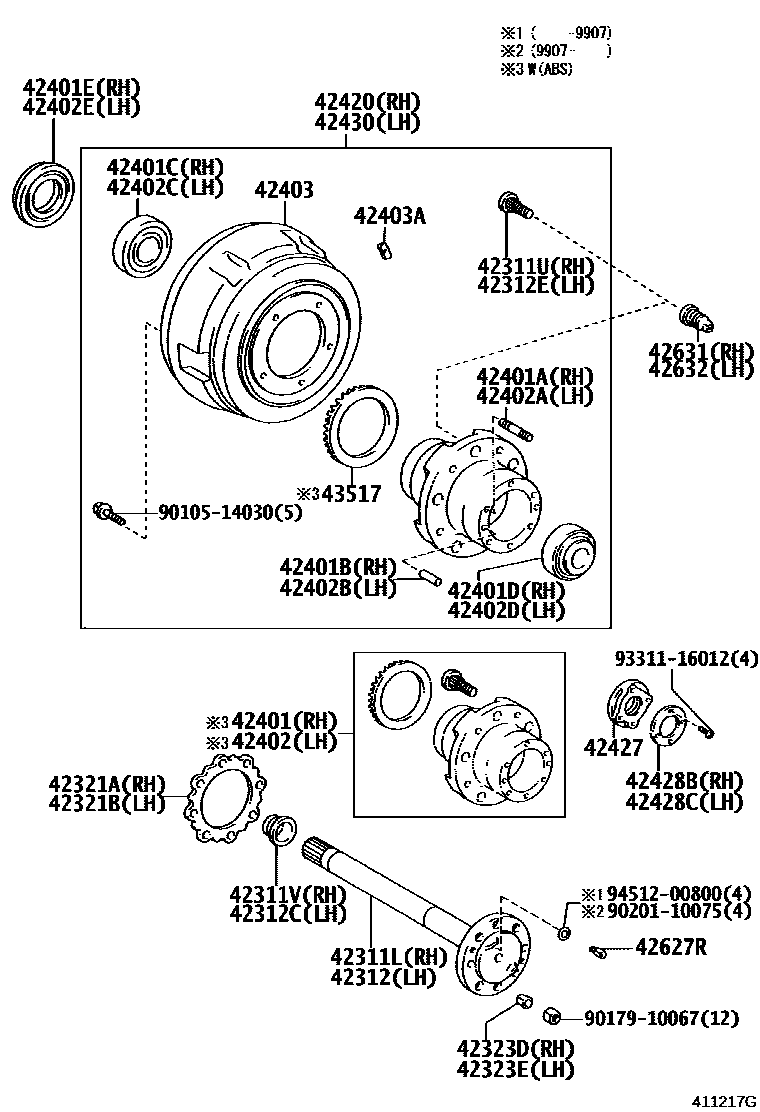

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42311-36190iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main42311-36200iBB50,HZB50..IV199301-199907

main42311-36210iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

main42311-36220iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02071×5iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)199907-200408

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-38033iBB4#,5#,HZB50,RZB40,50199301-199907

42312SHAFT, REAR AXLE, LH

main42311-36190iBB4#,5#,HZB50,RZB40,50..CBU199301-199907

main42311-36200iBB50,HZB50..IV199301-199907

main42311-36210iXZB50..WOC..CBU200408-200908

main42311-36220iXZB50..IV200408-201311

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-38033iBB4#,5#,HZB50,RZB40,50199301-199907

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02072×5iBB4#,5#,HZB50,RZB40,50199301-199907

42321AGASKET, REAR AXLE SHAFT, RH

main42321-36050iBB4#,5#,HZB50,RZB40,50199301-199907

main42321-36060iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

main42321-37020iBB50..WC..TD;BB4#,58,HZB50,RZB40,50200105-200108

42321BGASKET, REAR AXLE SHAFT, LH

main42321-36050iBB4#,5#,HZB50,RZB40,50199301-199907

main42321-36060iBB50,HZB50,RZB40,50..ARL,CHI200108-200211

main42321-37020iBB50..WC..TD;BB4#,58,HZB50,RZB40,50200105-200108

42323DWASHER, CONE (FOR REAR AXLE SHAFT RH)

main42323-36010×6iBB4#,5#,HZB50,RZB40,50199301-199907

42323EWASHER, CONE (FOR REAR AXLE SHAFT LH)

main42323-36010×6iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

42401HUB, REAR AXLE, RH

main42407-36030iBB50..6F199907-200105

main42407-36031iBB50..6F..TD200105-200108

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90116-10191×6iBB4#,5#,HZB50,RZB40,50199301-199907

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055×2iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90366-60012iBB42,BZB40,50,HZB50,TRB40,50,XZB40,5#201501

main90368-57010iBB4#,5#,HZB50,RZB40,50199301-199907

42401DBEARING (FOR REAR AXLE HUB OUTER RH)

main90366-55054iBZB50..EX;BB5#..TDEFI200408-200608

main90368-52043iBB4#,5#,HZB50,RZB40,50199301-199907

42401ESEAL, OIL (FOR REAR AXLE HUB RH)

main90311-75003iBB4#,5#,HZB50,RZB40,50199301-199907

main90311-78001iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

42402HUB, REAR AXLE, LH

main42408-36030iBB50..6F199907-200105

main42408-36031iTRB50..GCC;HZB50..WOC;HZB50..SRF..WC;HZB50..HRF..GCC201209-201501

W(ABS)

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90116-10191×6iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055×2iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90366-60012iBZB50..EX;BB5#..TDEFI200408-200608

main90368-57010iBB4#,5#,HZB50,RZB40,50199301-199907

42402DBEARING (FOR REAR AXLE HUB OUTER LH)

main90366-55054iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

main90368-52043iBB4#,5#,HZB50,RZB40,50199301-199907

42402ESEAL, OIL (FOR REAR AXLE HUB LH)

main90311-75003iBB4#,5#,HZB50,RZB40,50199301-199907

main90311-78001iBB42..LHD..SRF;BB42,XZB59..RHD;XZB50..(20S,21S)..WC;BB50,BZB40,50,HZB50,TRB40,50,XZB40..STD..(DCR,DSL,EFI,LPG,TD)200408-201501

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36150×2iBB42..17S,26S;BB42..LHD..22S;RZB40..EX..GCC;BB40,43,5#,RZB50;HZB50,RZB40..20S,22S,26S,30S199301-199907

main42431-37080×2iBB50..WOC..6F;BB50..STD..WC..IV199907-200105

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01122iBB4#,5#,HZB50,RZB40,50199301-199907

60G

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-39015iBB50..IV;BB50..EX;BB4#,58,HZB50,RZB40,50199301-199907

main42420-39025iBB50..WC..CBU199705-199907

main42420-39035iBB50..TDEFI;BB50..CBU..6F199907-200107

main42420-39045iBB50..EX;BB50..WOC..5F;BB50..STD..CBU..5F;BB4#,58,HZB50,RZB40,50199907-200107

main42420-39135iXZB50..IV200408-201311

W(ABS)

main42420-39145iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

42427NUT, REAR AXLE BEARING LOCK

main42427-36030×2iBB4#,5#,HZB50,RZB40,50199301-199907

main42427-37020×2iBB50..WOC..5F;BB50..EX..GEN;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,22S)..GEN199907-200108

42428BPLATE, REAR AXLE LOCK NUT, RH

main42428-36020iBB4#,5#,HZB50,RZB40,50199301-199907

42428CPLATE, REAR AXLE LOCK NUT, LH

main42428-36020iBB50,HZB50,RZB40,50..ARL,CHI199907-200211

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-39015iBB50..IV;BB50..EX;BB4#,58,HZB50,RZB40,50199301-199907

main42430-39025iBB50..WC..CBU199705-199907

main42430-39035iBB50..IV..6F199907-200105

main42430-39045iBB50..STD..WC..IV..5F199907-200105

main42430-39135iBB50..CBU..6F200408-200608

W(ABS)

main42430-39145iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

42627RBOLT, REAR WHEEL CAP SET

main42627-36011×4iBB50..EUR;BB50..STD..CBU;BB4#,HZB50,RZB40,50199301-199907

main42627-36020×4iBB50..RHD..6F199907-200105

42631BOLT, DOUBLE WHEEL STOP, RH

main42631-55031×5iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

42632BOLT, DOUBLE WHEEL STOP, LH

main42632-55031×5iBB4#,5#,HZB50,RZB40,50199301-199907

43517ROTOR, SKID CONTROL, REAR

main43517-37010×2iBB50..IV..6F199907-200105

9010514030

main90105-14030

9017910067

main90179-10067

9020110075

main90201-10075

9331116012

main93311-16012

9451200800

main94512-00800

38 parts on this diagram · 1 diagram in section
