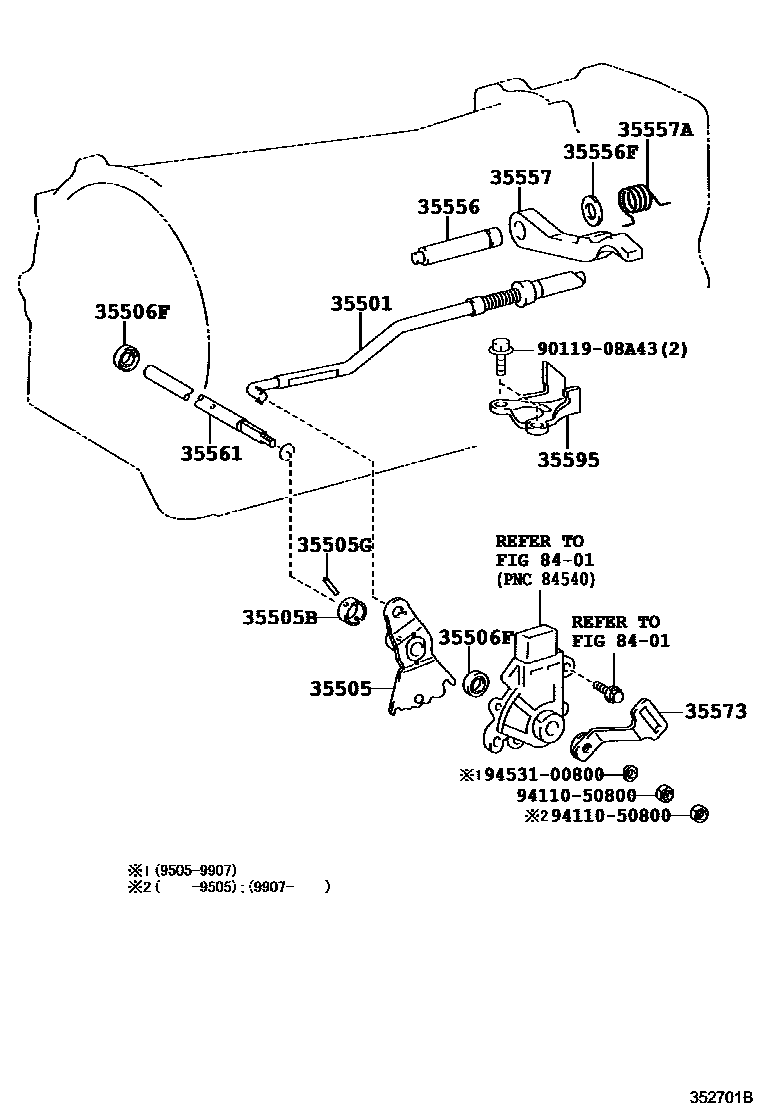

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A441E,A444E 0003 1A441E

35501ROD SUB-ASSY, PARKING LOCK

main35501-36010iHZB50..4FC199301-199907

main35501-36030iHZB50..4FC199907-200108

main35501-36040iXZB50..4FC200708-201501

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-36030iHZB50..4FC199301-199710

main35505-36040iHZB50..4FC199907-200108

main35505-60020iHZB50..4FC199710-199907

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20008iXZB50..4FC201501

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04012iHZB50..4FC199301-199907

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iHZB50..4FC199301-199907

35556SHAFT, PARKING LOCK PAWL

main35556-36010iXZB50..4FC200708-201501

35556FWASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)

main90201-16012iHZB50..4FC199301-199907

35557PAWL, PARKING LOCK

main35557-36010iHZB50..4FC199301-199907

main35557-36020iHZB50..4FC199907-200108

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-30003iHZB50..4FC199301-199505

main90508-30010iHZB50..4FC199505-199907

35561SHAFT, MANUAL VALVE LEVER

main35561-36010iHZB50..4FC199301-199907

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-36020iHZB50..4FC199301-199907

main35573-36040iXZB50..4FC200708-201501

35595BRACKET, PARKING LOCK PAWL

main35595-36010iHZB50..4FC199301-199907

main35595-36020iHZB50..4FC199907-200108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908A43

main90119-08A43

9411050800

main94110-50800

9453100800

main94531-00800

16 parts on this diagram · 2 diagrams in section
