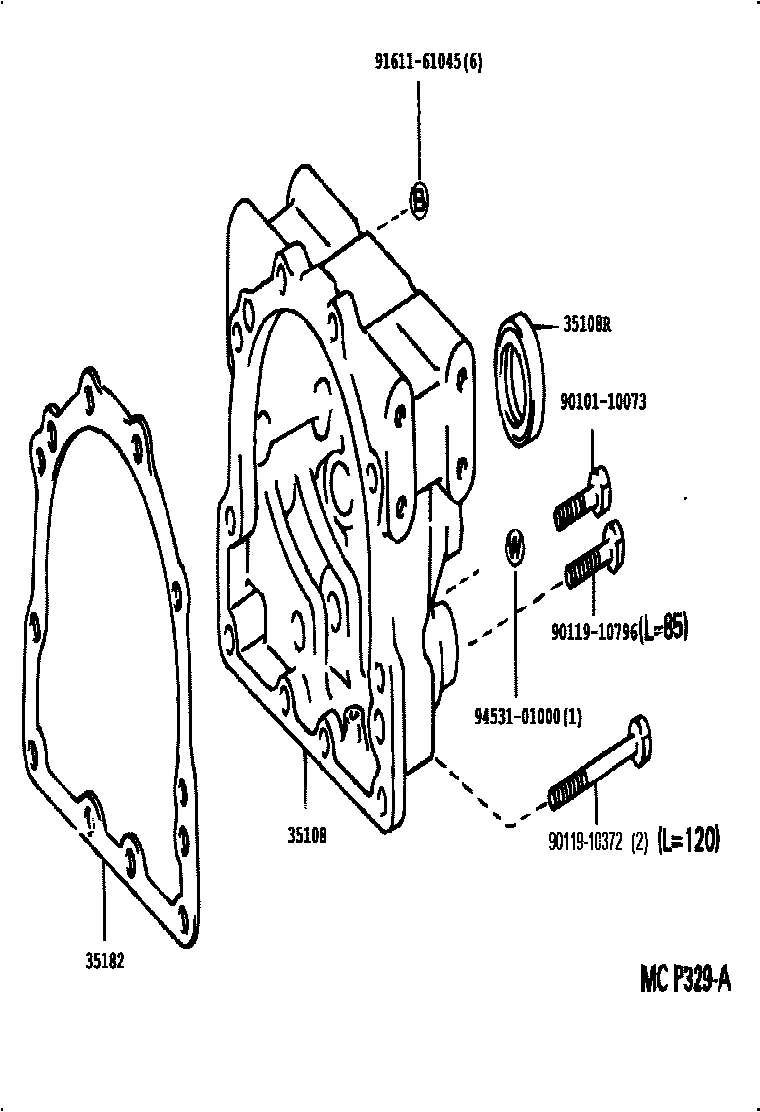

EXTENSION HOUSING (ATM)

0001 1A441E 0002 1A441E,A444E

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-36030iHZB50..4FC199301-199505

main35181-36030iHZB50..4FC199505-199606

main35181-36031iHZB50..4FC199606-199907

main35181-36040iHZB50..4FC199907-200108

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-45007iHZB50..4FC199301-199907

main90311-46005iHZB50..4FC199907-200108

35182GASKET, EXTENSION HOUSING (ATM)

main35182-60010iHZB50..4FC199301-199907

9010110073

main90101-10073

9011910372

main90119-10372

9011910796

main90119-10796

9161161045

main91611-61045

9453101000

main94531-01000

8 parts on this diagram · 2 diagrams in section
