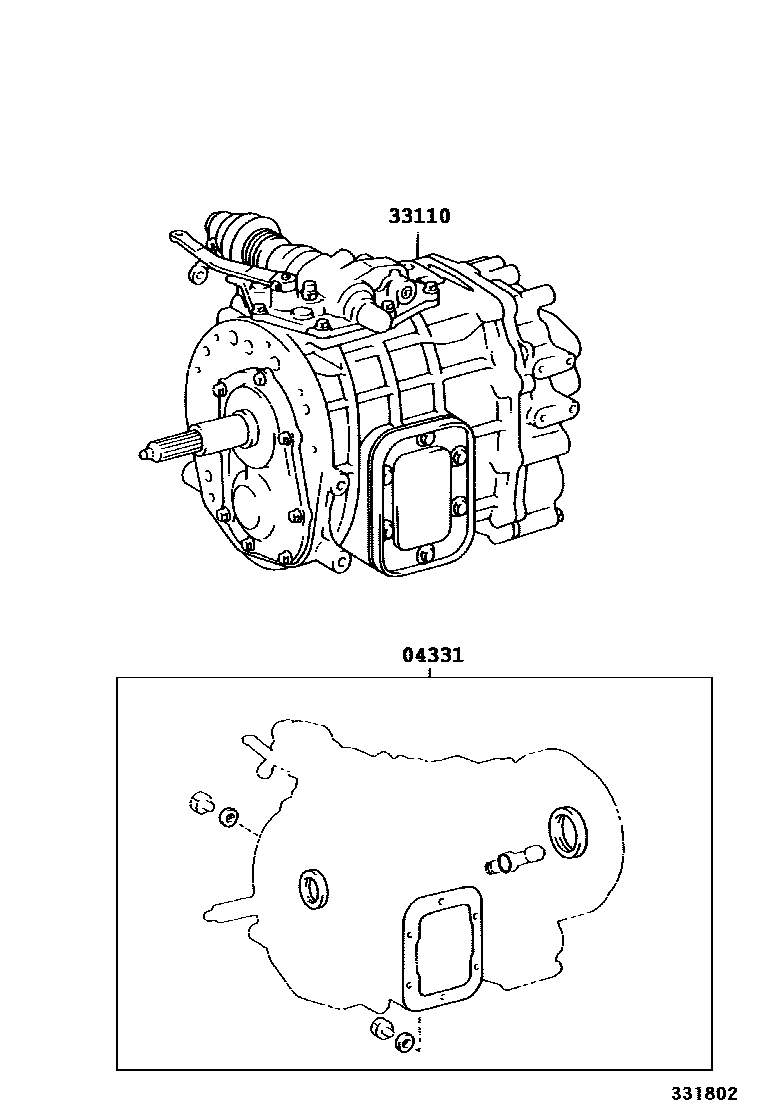

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36080i199907-200408

main04331-36090i199907-200211

main04331-36100i200211-200408

main04331-36150i201501

W(*FGR=41:8); W(EXHAUST BRAKE)

main04331-36170i200408-201501

main04331-36180i200408-200608

main04331-36251i201501

W(EXHAUST BRAKE)

main04331-36261i200408-200608

main04331-36370i200608-200803

main04331-36410i201501

main04331-36420i200408-201108

main04331-37080i200908-201501

W(*FGR=41:7 & ABS)

33110TRANSMISSION ASSY, MANUAL

main33110-36A00i200408-200608

H260; H260,W(215/70R17.5)

main33110-36A10i200408-200608

H260

main33110-36A20i200608-200803

M551

main33110-36A21i201108-201309

M551

main33110-36A22i201309-201311

M551

main33110-36A50i201501

M551,W(ABS)

main33110-3J260i199301-199505

M155

main33110-3J270i199301-199505

M155,W(EXHAUST BRAKE)

main33110-3J350i199309-199505

M150

main33110-3J360i199907-200408

M152,*FGR=45:8,W(EXHAUST BRAKE); M152,W(EXHAUST BRAKE)

main33110-3J370i199505-199705

M152; M152,*FGR=41:7; M152,*FGR=41:7 & W(5.50FXR16 DISC WHEEL)

main33110-3J371i199705-199907

M152,*FGR=41:7; M152,W(*FGR=45:8)

main33110-3J380i199505-199705

M152,*FGR=45:8,W(EXHAUST BRAKE); M152,W(EXHAUST BRAKE)

main33110-3J381i199705-199907

M152,*FGR=45:8,W(EXHAUST BRAKE); M152,W(EXHAUST BRAKE)

main33110-3J390i199505-199907

M155,W(EXHAUST BRAKE)

main33110-3J400i199505-199907

M155

main33110-3J410i199907-200211

M155,W(EXHAUST BRAKE)

main33110-3J420i201501

M155

main33110-3J430i199505-199705

M155

main33110-3J431i201501

M155

main33110-3J440i199505-199705

M155,W(EXHAUST BRAKE)

main33110-3J441i201501

M155,W(*FGR=45:8 & EXHAUST BRAKE); M155,W(ABS & EXHAUST BRAKE); M155,W(EXHAUST BRAKE)

main33110-3J460i199505-199705

M155

main33110-3J461i200408-201501

M155

main33110-3J470i199505-199705

M155,W(EXHAUST BRAKE)

main33110-3J471i200408-201501

M155,W(EXHAUST BRAKE)

main33110-3J480i200408-201108

M155,*FGR=41:7

main33110-3J490i199505-199907

M155,*FGR=41:7,W(EXHAUST BRAKE)

main33110-3J510i199505-199705

M155,*FGR=41:7

main33110-3J511i201501

M155,W(*FGR=41:7 & ABS); M155,W(*FGR=41:7); M155,W(*FGR=45:8 & ABS); M155,W(ABS)

main33110-3J520i199505-199705

M155,*FGR=41:7 & W(EXHAUST BRAKE)

main33110-3J521i201501

M155,W(*FGR=41:7 & ABS & EXHAUST BRAKE); M155,W(*FGR=41:7 & EXHAUST BRAKE); M155,W(*FGR=45:8 & ABS & EXHAUST BRAKE); M155,W(ABS & EXHAUST BRAKE)

main33110-3J530i199505-199605

M155

main33110-3J540i199505-199605

M155

main33110-3J550i199605-199907

M155

main33110-3J560i199605-199907

M155

main33110-3J580i199907-200408

M155; M155,W(EXHAUST BRAKE)

main33110-3J590i199907-200408

M155

main33110-3J600i199802-199907

M155

main33110-3J620i199907-200408

H260

main33110-3J630i200008-200408

H260,W(215/70R17.5)

main33110-3J640i200408-201110

M156

main33110-3J641i201110-201501

M156

main33110-3J650i200408-201108

M152,*FGR=43:7

main33110-3J660i201501

M155

main33110-3J700i200408-201108

M152,*FGR=43:7,W(EXHAUST BRAKE)

main33110-3J710i199908-200408

M155,AXLE CODE=A05A

main33110-3J720i201501

M155,W(ABS & EXHAUST BRAKE)

main33110-3J730i200211-200408

M155

main33120-3E400i199505-199705

M150

main33120-3E401i199705-199907

M150

main33120-3E410i199301-199505

M152

main33120-3E420i199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E430i199301-199505

M152

main33120-3E440i199301-199505

M152,W(EXHAUST BRAKE)

main33120-3E450i199301-199505

M152,*FGR=45:8,W(5.50FXR16 DISC WHEEL); M152,W(5.50FXR16 DISC WHEEL)

main33120-3E460i199301-199505

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL); M152,W(EXHAUST BRAKE)

main33120-3E470i199301-199505

M152; M152,*FGR=45:8,W(5.50FXR16 DISC WHEEL); M152,W(5.50FXR16 DISC WHEEL)

main33120-3E480i199301-199505

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL); M152,W(EXHAUST BRAKE)

main33120-3E490i199907-200408

M152,*FGR=45:8 & W(5.50FXR16 DISC WHEEL); M152,W(5.50FXR16 DISC WHEEL)

main33120-3E500i199505-199907

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL); M152,W(EXHAUST BRAKE)

main33120-3E510i199301-199505

M152,*FGR=41:7,W(5.50FXR16 DISC WHEEL); M152,W(*FGR=41:7)

main33120-3E520i199301-199505

M152; M152,*FGR=45:8,W(EXHAUST BRAKE); M152,W(EXHAUST BRAKE)

main33120-3E530i199301-199505

M152; M152,*FGR=41:7,W(5.50FXR16 DISC WHEEL); M152,W(*FGR=41:7)

main33120-3E540i199301-199505

M152,*FGR=45:8,W(EXHAUST BRAKE); M152,W(EXHAUST BRAKE)

main33120-3E550i199505-199705

M152; M152,*FGR=45:8 & W(5.50FXR16 DISC WHEEL); M152,W(5.50FXR16 DISC WHEEL)

main33120-3E551i201501

M152,W(5.50FX16 DISC WHEEL); M152,W(EXHAUST BRAKE & 5.50FX16 DISC WHEEL); M152,W(EXHAUST BRAKE)

main33120-3E560i199505-199705

M152,W(EXHAUST BRAKE & 5.50FXR16 DISC WHEEL); M152,W(EXHAUST BRAKE)

main33120-3E561i199907-200108

M152,W(EXHAUST BRAKE & 5.50FX16 DISC WHEEL); M152,W(EXHAUST BRAKE)

main33120-3E570i199301-199505

M155; M155,W/O(EXHAUST BRAKE)

main33120-3E580i199301-199505

M155; M155,W(EXHAUST BRAKE)

main33120-3E590i199301-199505

M155

main33120-3E600i199301-199505

M155,W(EXHAUST BRAKE)

main33120-3E620i199301-199505

M155

main33120-3E630i199301-199505

M155,W(EXHAUST BRAKE)

main33120-3E640i199301-199505

M155,*FGR=41:7,W/O(EXHAUST BRAKE); M155,W(*FGR=41:7)

main33120-3E650i199301-199505

M155,*FGR=41:7,W(EXHAUST BRAKE); M155,W(*FGR=41:7)

main33120-3E670i199301-199505

M155,W(*FGR=41:7)

main33120-3E680i199301-199505

M155,*FGR=41:7,W(EXHAUST BRAKE)

main33120-3E690i199301-199505

M155

main33120-3E700i199301-199505

M155

main33120-3E710i201501

M152; M152,W(*FGR=45:8)

2 parts on this diagram · 3 diagrams in section
