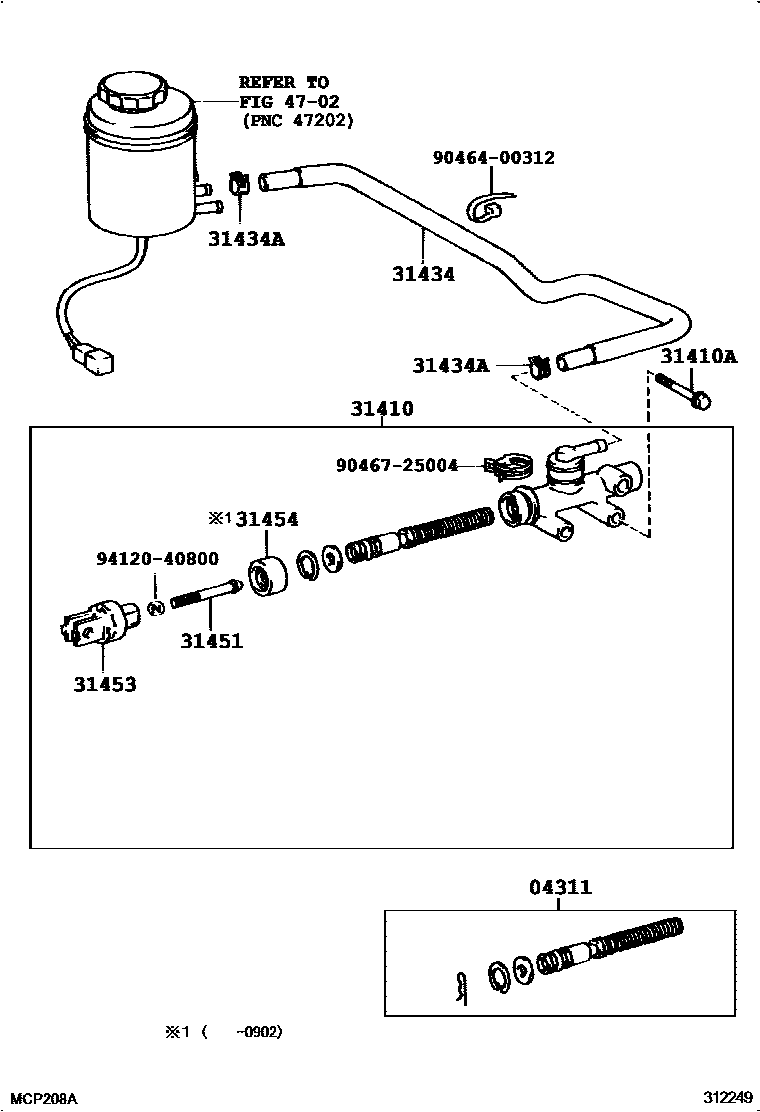

CLUTCH MASTER CYLINDER

0001 1 0002 1TAIWAN SPEC 0003 1 0004 1 0006 1W(CLUTCH BOOSTER)

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iBB40,42,HZB50,RZB40,50..5F199807-199907

main04311-26050iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

main04311-36082iBB42..LHD..HRF..26S199606-199703

TAIWAN SPEC

main04311-36150iBB5#,BZB40,50200408-200503

main04311-36151iBB5#,BZB40,50200503-200504

main04311-36180iBB40,42,HZB50,RZB40,50..5F199606-199807

main04311-36230iXZB50..STD..GEN200504-200803

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36090iBB5#,BZB40,50200408-200502

main31401-36091iBB5#,BZB40,50200503-200504

main31401-36092iXZB50..STD..GEN200504-200803

main31401-36100iBB50,HZB50..LHD..EUR199301-199907

sub31401-36101

main31420-36130iBB42,HZB50,TRB40,50201501

main31420-36190iRZB40,50199309-199505

main31420-36230iBB42..LHD..HRF..26S199701-199703

TAIWAN SPEC

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90119-08108×2iRZB40..HRF..GCC200408-200602

main90119-08472×2iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

31434TUBE, CLUTCH RESERVOIR

main31434-36260iBB40,42,HZB50..RHD..5F..DSL199301-199907

main31434-36270iBB42..WC..GCC;RZB40..WOC..GEN;BB42..LHD..26S..GEN;HZB50,RZB50..LHD..(GCC,GEN);RZB40..(17S,26S)..WC..(GCC,GEN)199907-200408

main31434-36280iBB43,50,HZB50..RHD..TD199301-199907

main31434-36290iBB50,HZB50..LHD..EUR199301-199907

main31434-36300iBB5#..STD..GEN199705-199907

main31434-36310iBB50,59,BZB40,50..RHD..(LPG,TDEFI)199907-200408

main31434-36320iBB50,58..LHD..TDEFI200408-200608

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-13070×2iBB4#,5#,HZB50,RZB40,50..5F199301-199907

main96132-51300×2iBB50,HZB50,RZB40,50..ARL,CHI200204-200211

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040iBB42..LHD..HRF200408-201108

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iBB42..LHD..HRF..26S199606-199703

TAIWAN SPEC

main31404-35011iBB40,42,HZB50,RZB40,50..5F199606-199907

main31404-35013iBB42,HZB50,RZB40,50200310-200408

main31404-36021iBB4#,HZB50,RZB40,50..CBU..5F199301-199606

main31404-36031iBZB50..EX;BB5#..TDEFI200408-200608

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBB42..WC..GCC;BB42..SRF..GEN;HZB50..LHD..EX;HZB50..LHD..WOC;RZB40..22S..CHI;BB42..HRF..26S..WC;HZB50..LHD..SRF..WC;BB42..LHD..HRF..WOC;RZB40,50..(17S,26S,30S)..WC;H199907-200211

4702

9046400312

main90464-00312

9046725004

main90467-25004

9412040800

main94120-40800

12 parts on this diagram · 5 diagrams in section
