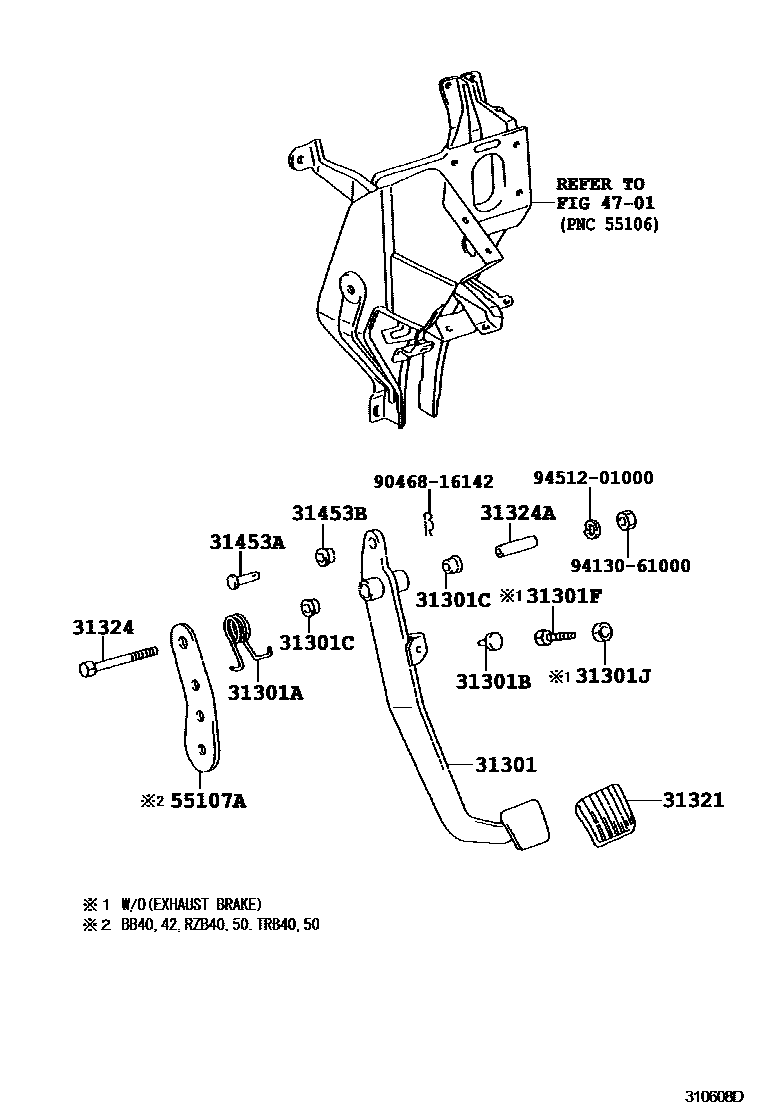

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0014 1 0015 1 0016 1 0017 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-36200iXZB50..IV199301-201501

main31301-36210iRZB40..HRF..GCC199301-201501

main31310-36050iHZB50199907-201501

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35013iBB42..WC..GCC;BB42..SRF..GEN;RZB40..WOC..GEN;BB42..LHD..HRF..WOC;BB50..(EUR,GEN)..6F..TDEFI;BB50..(17S,21S,30S)..(ARL,GEN);RZB40..(17S,26S)..WC..(GCC,GEN);BB58,59,B199301-201612

main90949-03010iHZB50..LHD..EX;HZB50..LHD..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC199907-201612

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iBB4#,5#,HZB50,RZB40,50..5F199301-201501

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iBB50,HZB50,RZB40,50..ARL,CHI199308-201501

main90386-13015iBB4#,HZB50..5F199301-199308

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10085iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199301-201501

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iHZB50..5F..DSL;BB40,42,RZB40,50..ARL,GCC,GEN199301-199907

main94130-61000iHZB50..RHD..EX;HZB50..RHD..SRF;BB42,RZB40..WOC..GCC;BB42,RZB40..22S..GEN;BB42,HZB50..RHD..HRF..WOC..GEN199907-201501

31321PAD, CLUTCH PEDAL

main31321-14020iBB4#,5#,HZB50,RZB40,50..5F199301-201501

31324SHAFT, CLUTCH PEDAL

main90101-10189iBB50..CHI199301-201501

main91121-61070iBB42..RHD;HZB50,TRB40,50;BB42..LHD..SRF199301-201501

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBB42,HZB50,TRB40,50199301-201501

main90387-10134iXZB59;XZB50..(20S,21S)..WC..5F;BB50,BZB40,50,XZB40..STD..(DCR,LPG,TD)199301-201501

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iBB4#,5#,HZB50,RZB40,50..5F199301-201501

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iBB50..WOC..6F;BB50..STD..WC..IV199301-201501

4701

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55105-36010iHZB50199907-201501

main55136-36010iTRB40,50;BB42..RHD;BB42..LHD..SRF199301-201501

9046816142

main90468-16142

9413061000

main94130-61000

9451201000

main94512-01000

16 parts on this diagram · 14 diagrams in section
