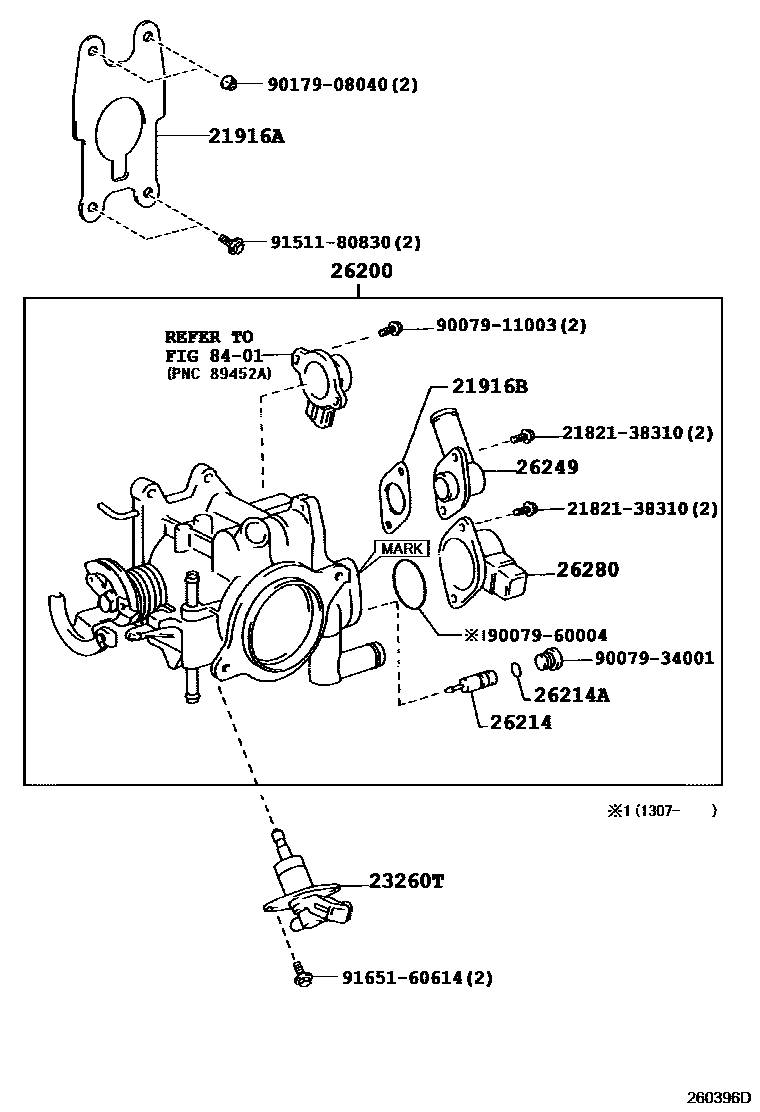

LPG CARBURETOR

21916AGASKET, CARBURETOR, NO.2

main21916-48010i1BZFPE..BZB40,50200108-200408

21916BGASKET, LPG FUEL HOSE UNION

main21916-73010i1BZFPE..BZB40,50200108-200408

23260TINJECTOR ASSY, LPG

main23260-48010i1BZFPE..BZB40,50200108-200408

26200CARBURETOR ASSY, LPG

main26200-48011i1BZFPE..BZB40,50200108-200408

main26200-48012i1BZFPE..BZB40,50201307-201501

MARK=48012

26214SCREW, POWER ADJUST

main26214-73130i1BZFPE..BZB40,50200108-200408

26214ARING, O(FOR POWER ADJUST)

main90079-60005i1BZFPE..BZB40,50200108-200408

26249UNION, FUEL HOSE(FOR LPG)

main26249-48010i1BZFPE..BZB40,50200108-200408

26280MOTOR ASSY, AIR FUEL RATIO CONTROL

main26280-48010i1BZFPE..BZB40,50200108-200408

main26280-48030i1BZFPE..BZB40,50201307-201501

PNC 26200=MARK 48012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9007911003

main90079-11003

9007934001

main90079-34001

9007960004

main90079-60004

9017908040

main90179-08040

9151180830

main91511-80830

9165160614

main91651-60614

16 parts on this diagram · 1 diagram in section
