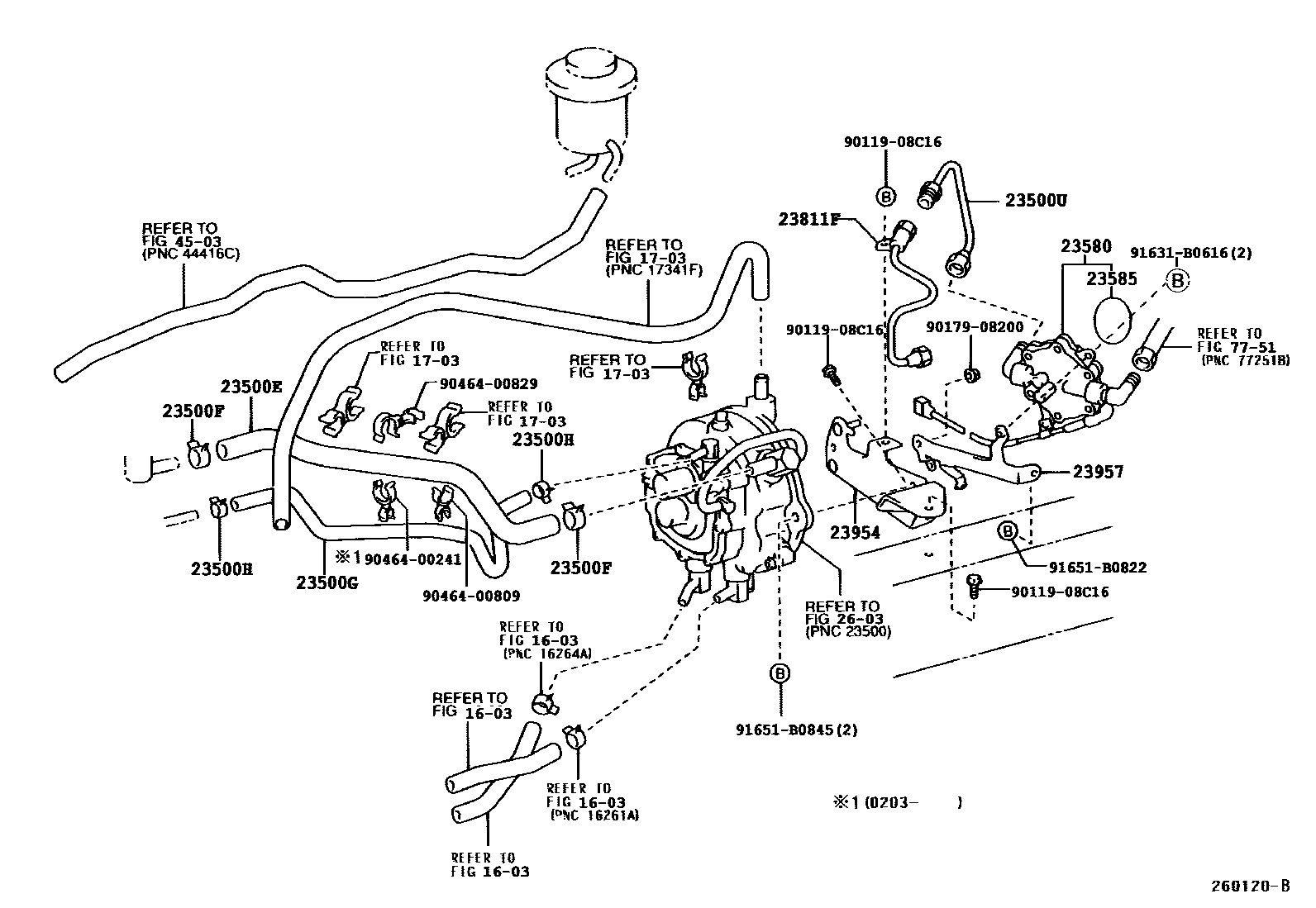

LPG(CARBURETOR) FUEL PIPE

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1703AIR CLEANER

→ Go to FIG 17-03

23500EHOSE, WATER(FOR LPG REGULATOR INLET)

main23271-48010i1BZFPE..BZB40,50200108-200408

23500FCLAMP OR CLIP(FOR LPG REGULATOR INLET WATER HOSE)

main96134-52600×2i1BZFPE..BZB40,50200108-200408

23500GHOSE, WATER(FOR LPG REGULATOR OUTLET)

main23273-48020i1BZFPE..BZB40,50200108-200408

23500HCLAMP OR CLIP(FOR LPG REGULATOR OUTLET WATER HOSE)

main96135-51300×2i1BZFPE..BZB40,50200108-200408

23500UPIPE, WATER BY-PASS, NO.2(FOR LPG)

main23812-48020i1BZFPE..BZB40200108-200202

main23812-48021i1BZFPE..BZB40,50200202-200408

23580PREHEATER ASSY, LPG

main23580-48010i1BZFPE..BZB40,50200108-200408

23585RING, O(FOR PREHEATER)

main23585-72010i1BZFPE..BZB40,50200108-200408

23811FPIPE, FUEL, NO.1

main23811-48020i1BZFPE..BZB40200108-200202

main23811-48021i1BZFPE..BZB40,50200202-200408

23954BRACKET, LPG REGULATOR

main23954-48010i1BZFPE..BZB40,50200108-200408

23957STAY, LPG REGULATOR

main23957-48010i1BZFPE..BZB40,50200108-200408

2603LPG OR CNG REGULATOR

→ Go to FIG 26-03

4503POWER STEERING TUBE

→ Go to FIG 45-03

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908C16

main90119-08C16

9017908200

main90179-08200

9046400241

main90464-00241

9046400809

main90464-00809

9046400829

main90464-00829

91631B0616

main91631-B0616

91651B0822

main91651-B0822

91651B0845

main91651-B0845

23 parts on this diagram · 1 diagram in section
