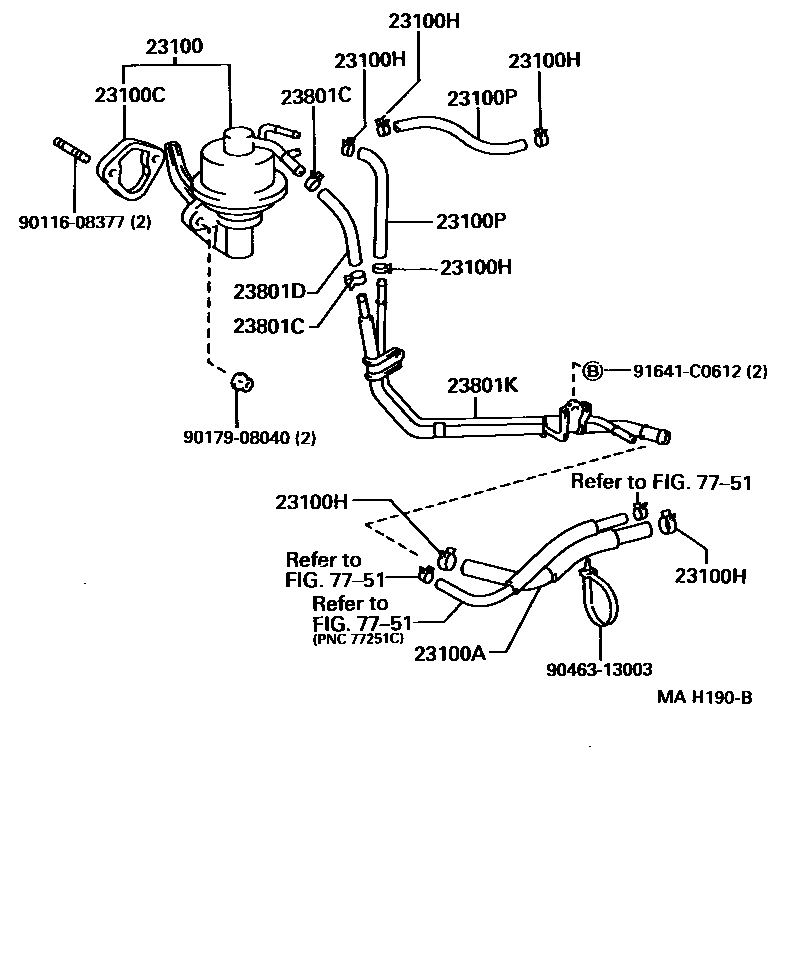

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-79095i3RZF..RZB40,50199309-199907

23100AHOSE, FUEL

main23271-75040i3RZF..RZB40,50199309-199907

23100CINSULATOR, FUEL PUMP

main90923-06017i3RZF..RZB40,50199309-199907

23100HCLIP(FOR FUEL HOSE)

main90467-18002×2i3RZF..RZB40,50199309-199907

PIPE SIDE,TUBE SIDE

main96132-41100×4i3RZF..RZB40,50199309-199907

PUMP SIDE,CARBURETOR SIDE

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95333-06020×2i3RZF..RZB40,50199309-199907

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96134-41500×2i3RZF..RZB40,50199309-199907

23801DHOSE, FUEL PIPE, NO.1

main23271-75070i3RZF..RZB40,50199708-199907

main95333-10016i3RZF..RZB40,50199309-199401

L=200(*H,L=160)

main95334-10016i3RZF..RZB40,50199401-199708

L=160

23801KPIPE SUB-ASSY, FUEL, NO.1

main23801-75030i3RZF..RZB40,50199309-199907

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011608377

main90116-08377

9017908040

main90179-08040

9046313003

main90463-13003

91641C0612

main91641-C0612

13 parts on this diagram · 1 diagram in section
