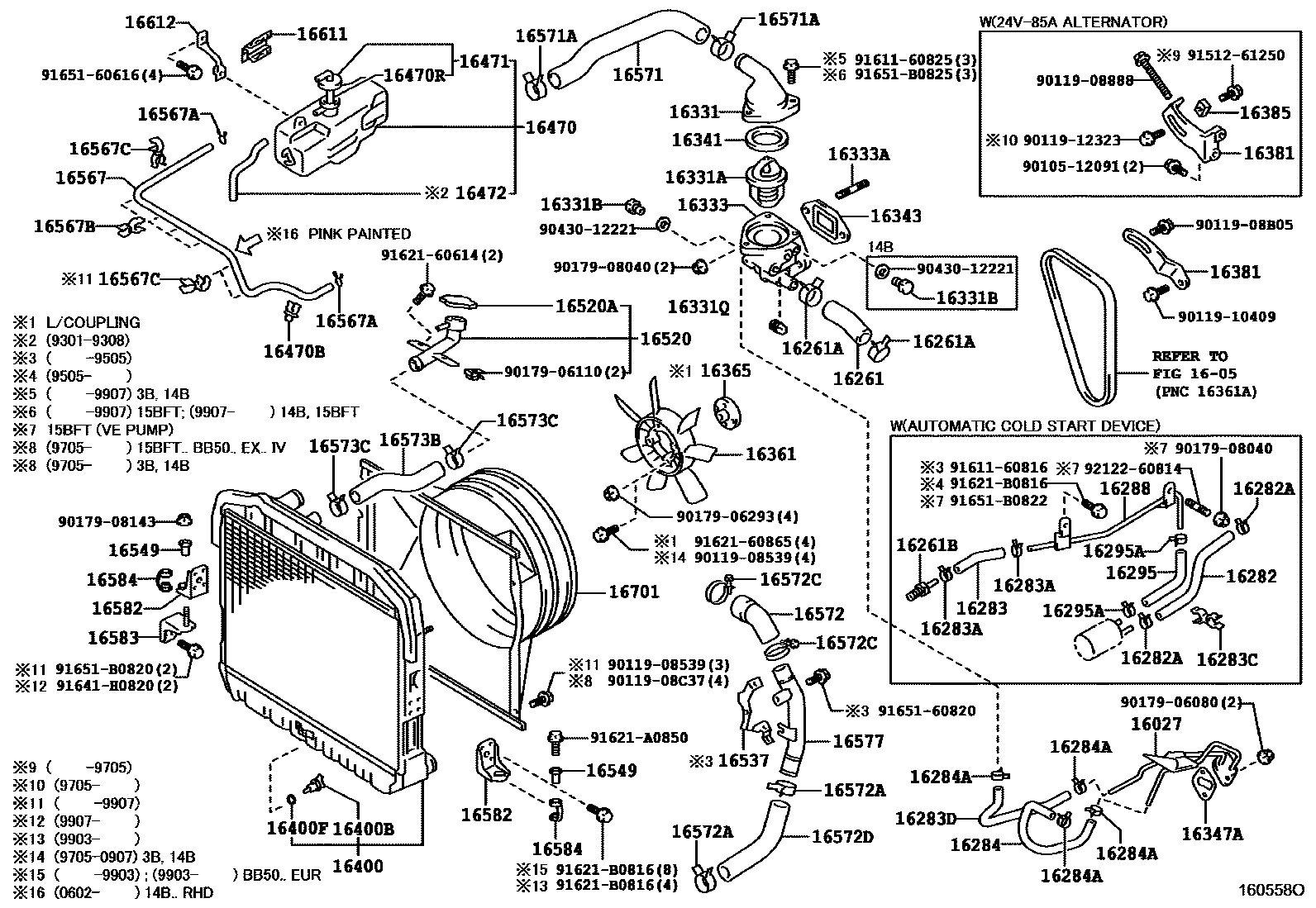

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
CIS SPEC
NO.2
NO.1
L=59
16261BUNION(FOR WATER BY-PASS HOSE)
CIS SPEC & BATTERY(95D31R X2)
CIS SPEC
16282HOSE, WATER BY-PASS, NO.5
CIS SPEC & BATTERY(95D31R X2)
CIS SPEC & BATTERY(95D31R X2)
sub16282-75012
sub16282-75071
16283HOSE, WATER BY-PASS, NO.6
CIS SPEC & BATTERY(95D31R X2)
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16283DHOSE, WATER BY-PASS, NO.6
16284HOSE, TURBO WATER, NO.1
16284ACLIP(FOR TURBO WATER HOSE NO.1)
16288PIPE, WATER BY-PASS, NO.4
CIS SPEC & BATTERY(95D31R X2)
16295HOSE, WATER BY-PASS, NO.7
CIS SPEC & BATTERY(95D31R X2)
16295ACLIP(FOR WATER BY-PASS HOSE NO.7)
CIS SPEC & BATTERY(95D31R X2)
16331OUTLET, WATER
sub16331-E0120
main16331-56020i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201501
16331ATHERMOSTAT
*WAX 76-90
*WAX 82-95
*WAX 82-95
*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
CHINA SPEC & YOJO SPEC
*EX-USSR SPEC & ALTERNATOR 24V 60A
CIS SPEC
16331QPLUG(FOR WATER OUTLET)
16333HOUSING, WATER OUTLET
sub16303-78101
sub16303-E0213
sub16303-E0620
sub16303-E0621
sub16333-58050
16333ABOLT, STUD(FOR WATER OUTLET HOUSING)
16341GASKET, WATER OUTLET
main16341-17010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501
main16341-56030i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201501
16347AGASKET(FOR TURBO WATER PIPE)
16361FAN
NO.1
NO.1
NO.1
NO.1
sub16361-41071
BATTERY(48D26RX2),NO.2
CIS SPEC OR BATTERY(48D26RX2),NO.2
NO.2
SINGAPORE SPEC,NO.2
16365SPACER, FAN
16381BAR, FAN BELT ADJUSTING
CIS SPEC OR BATTERY(48D26R X2 OR 95D31R X2)
ALTERNATOR(24V-60A)
BATTERY(48D26R X2)
BATTERY=(55D23R X2) OR (95D31R X2)
BATTERY(55D23R X2)
sub16381-58110
ALTERNATOR(24V-60A)
ALTERNATOR(24V-85A)
BATTERY(55D23R X2)
ALTERNATOR(24V-60A)
main16381-58130i14B..BB42..RHD..WC;14B..BB42..LHD..SRF..WC;15BFT,1BZFPE..BB50,BZB40,50..STD200408-201501
BATTERY=(55D23R X2) OR (95D31R X2)
sub16381-75050
16385SLIDER, FAN BELT ADJUSTING
main16385-17010i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199301-201501
ALTERNATOR(24V-85A)
ALTERNATOR(24V-85A)
16400RADIATOR ASSY
sub16400-17190
sub16400-17231
sub16400-17232
sub16400-17251
sub16400-17252
sub16400-17261
sub16400-58571
sub16400-58581
sub16400-58582
sub16400-75301
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
main90467-12026i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-200803
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=135)
16471CAP SUB-ASSY, RESERVE TANK
sub16405-17031
16472HOSE, BREATHER
16520FILLER ASSY, WATER
main16520-17020i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199907-200411
sub16520-17022
sub16520-17022
sub16520-78011
16537SUPPORT, RADIATOR PIPE, NO.1
16549COLLAR, RADIATOR SUPPORT, NO.2
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
NO.1
NO.2
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
ENGINE SIDE
ENGINE SIDE
main90467-41002i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199907-200306
ENGINE SIDE
sub90466-41008
sub90467-41002
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
main16572-17091i1HZ..HZB50..RHD..SRF;1HZ..HZB50..RHD..WOC..GEN;1HZ..HZB50..RHD..(20S,22S)..GEN199705-201501
main16572-56091i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..LHD..HRF..WOC;15BFT..BB50..STD..GEN..CBU..5F;14B,1BZFPE..BB42,BZB40,50..HRF..(17S,21S,26S)..WC199301-201501
NO.1
NO.2
NO.2
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1
NO.3
ENGINE SIDE
sub90467-41002
RADIATOR SIDE
NO.4
NO.2
ENGINE SIDE
16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
RADIATOR PIPE SIDE
WATER PUMP SIDE
PIPE SIDE
RADIATOR SIDE
WATER PUMP SIDE
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
main90467-31003i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC;15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199301-201501
16577PIPE, RADIATOR, NO.7
16582BRACKET, RADIATOR, NO.1
16583BRACKET, RADIATOR, NO.2
16584INSULATOR, RADIATOR MOUNTING
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
sub16711-17061
sub16711-17062
sub16711-17121
sub16711-17131
sub16711-58091
sub16711-58092
sub16711-58171
sub16711-75121
9010512091
main90105-12091
9011908539
main90119-08539
9011908888
main90119-08888
9011908B05
main90119-08B05
9011908C37
main90119-08C37
9011910409
main90119-10409
9011912323
main90119-12323
9017906080
main90179-06080
9017906110
main90179-06110
9017906293
main90179-06293
9017908040
main90179-08040
9017908143
main90179-08143
9043012221
main90430-12221
9151261250
main91512-61250
9161160816
main91611-60816
9161160825
main91611-60825
9162160614
main91621-60614
9162160865
main91621-60865
91621A0850
main91621-A0850
91621B0816
main91621-B0816
91641H0820
main91641-H0820
9165160616
main91651-60616
9165160820
main91651-60820
91651B0820
main91651-B0820
91651B0822
main91651-B0822
91651B0825
main91651-B0825
9212260814
main92122-60814
87 parts on this diagram · 23 diagrams in section
