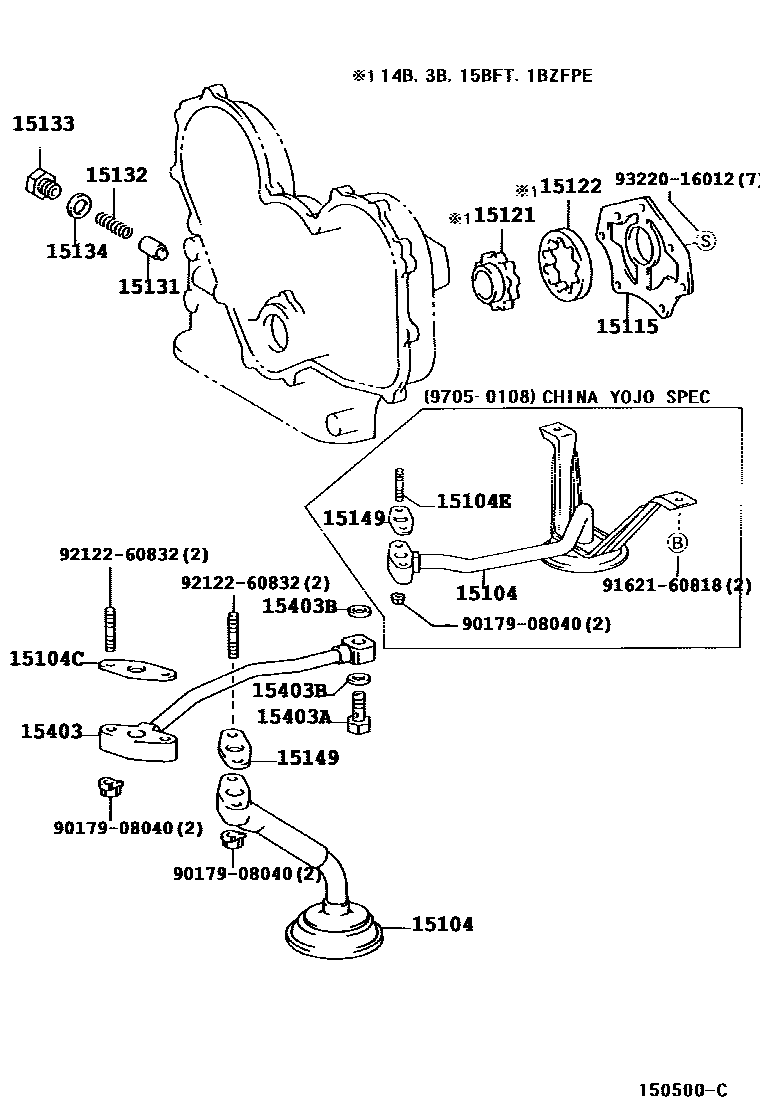

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15104STRAINER SUB-ASSY, OIL

main15104-17030i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

main15104-56061i14B..BB42..LHD..HRF..26S199705-199904

YOJO SPEC

sub15104-56062

main15104-56062i14B..BB42..LHD..HRF..26S..WC199904-200108

YOJO SPEC

main15104-58060i14B,15BFT,3B..BB4#,5#199301-199904

sub15104-58061

main15104-58061i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199904-201501

main15104-75030i3RZFE..RZB40,50199309-200708

main15104-75140i2TRFE..TRB40,50200708-201501

main15401-78050iN04C..XZB50..WOC..CBU200608-201501

subS1510-41940

mainS151041940iN04C..XZB40,5#201501

15104CGASKET(FOR OIL STRAINER)

main15149-56020i14B,15BFT,3B..BB4#,5#199301-199908

sub15149-58010

main15149-58010i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199908-201501

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-08037i2TRFE..TRB40,50200708-201108

main90126-08052i2TRFE..TRB40,50201108-201501

main92122-60832i14B..BB42..LHD..HRF..26S..WC199705-200108

YOJO SPEC

15115COVER, OIL PUMP

main15115-56040i14B..BB42..RHD;14B..BB42..LHD..SRF199301-201501

main15115-56090i15BFTE..BB5#;1BZFPE..BZB50..EX199605-201501

main15115-75020i3RZF..RZB40,50199309-200708

15121GEAR, OIL PUMP DRIVE

main15121-56040i14B..BB42..WC..GCC;14B..BB42..SRF..GEN;14B..BB42..HRF..26S..WC;14B..BB42..LHD..HRF..WOC199301-201501

main15121-56090i15BFT..BB43,5#199605-201501

15122GEAR, OIL PUMP DRIVEN

main15122-56040i14B,3B..BB40,42199301-201501

main15122-56090i15BFT,1BZFPE..BB50,BZB40,50..(17S,21S,30S)..GEN199605-201501

main15122-E0110iN04C..XZB40,5#201107-201501

15131VALVE, OIL PUMP RELIEF

main15131-17010i1HZ..HZB50199301-201501

main15131-24010i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199301-201501

main15131-46040i2TRFE..TRB40,50200708-201501

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

main15132-56080i14B,1BZFPE..BB42,BZB40,50199301-201501

main15132-75020i3RZFE..RZB40,50199309-200708

NO.1

main15132-75021i3RZFE..RZB40..WOC..GEN;3RZFE..RZB40,50..(17S,26S,30S)..WC..(GCC,GEN)199309-200708

NO.2

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1HZ..HZB50..ARL199301-201501

main15133-20010i15BFT..BB50..CHI199301-201501

15134GASKET, OIL PUMP RELIEF VALVE

main15134-17010i1HZ#..HZB50199301-199508

main15134-20010i14B,15BFT,3B..BB4#,5#199301-201501

main15134-67020i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199508-201501

15149GASKET, OIL STRAINER FLANGE

main15149-17010i1HZ..HZB50..LHD..EX;1HZ..HZB50..LHD..WOC;1HZ..HZB50..HRF..30S..WC;1HZ..HZB50..LHD..SRF..WC199301-201501

main15149-56020i14B,15BFT,3B..BB4#,5#199301-199908

sub15149-58010

main15149-58010i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV199908-201501

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i14B,15BFT,3B..BB4#,5#199301-201501

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i14B,15BFT,3B..BB4#,5#199301-201501

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018i14B,15BFT,3B..BB4#,5#199301-201501

9017908040

main90179-08040

9162160818

main91621-60818

9212260832

main92122-60832

9322016012

main93220-16012

18 parts on this diagram · 5 diagrams in section
