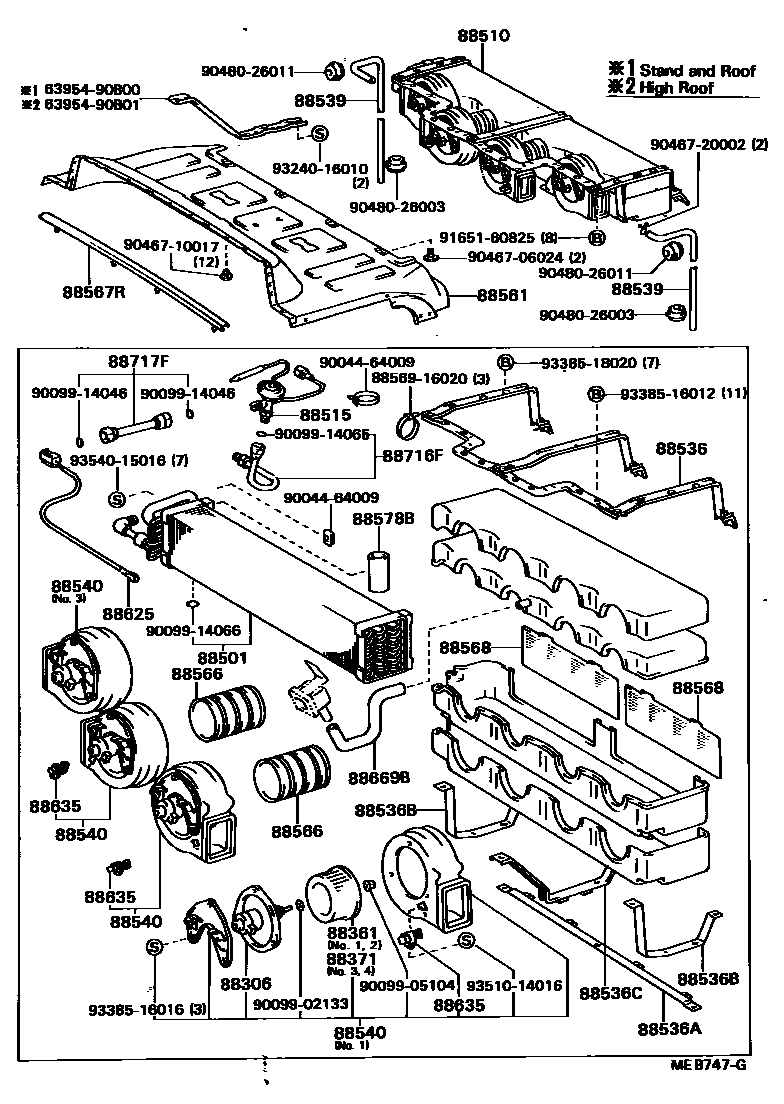

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1

main88550-90B00×4iFB30,RB20..DLX..WC..(GEN,ME)198205-199301

main88550-90B01×4iFB30,RB20..WC198205-199301

HEAVY TYPE

main88550-90B02×4iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88550-90B03×4iBB20,21,HB30,HZB30..(DLX,EXS)..WC198205-199301

HEAVY TYPE

main88550-90B13×4iRB20..17S198510-199301

HEAVY TYPE,AUTO COOLER

main88550-90B15×4iBB20,21,HB30,HZB30..EX,EXS198510-199301

HEAVY TYPE,AUTO COOLER

88361FAN, COOLER BLOWER, NO.1

main87105-14030×2iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main87105-90B00×2iBB20,21,HB30,HZB30,RB20..EX,EXS198510-199301

HEAVY TYPE,AUTO COOLER

88371FAN, COOLER BLOWER, NO.2

main87105-14020×2iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main87105-90B01×2iBB20,21,FB30,HB30,HZB30,RB20..(DLX,EXS)..WC198205-199301

HEAVY TYPE

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88510UNIT ASSY, COOLER

main88510-90B00iRB20..DLX..WC..GEN198205-198404

main88510-90B01iRB20..WC198205-198404

HEAVY TYPE

main88510-90B02iBB20..WC..GEN198205-198404

main88510-90B03iBB20..WC198205-198404

HEAVY TYPE

main88510-90B04iFB30,RB20..DLX..WC..(GEN,ME)198404-199301

main88510-90B05iFB30,RB20..WC198404-199301

HEAVY TYPE

main88510-90B06iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main88510-90B07iBB20,21,HB30,HZB30..(DLX,EXS)..WC198404-199301

HEAVY TYPE

main88510-90B14iBB20,21,HB30..EX,EXS198510-199301

HEAVY TYPE,AUTO COOLER

main88510-90B15iRB20..17S198510-199301

HEAVY TYPE,AUTO COOLER

88515VALVE, COOLER EXPANSION

main88421-90B00iBB2#,FB30,HB30,HZB30,RB20..WC198205-199301

88536BRACKET, COOLING UNIT, NO.1

main88536-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88536ABRACKET, COOLING UNIT, NO.2

main88536-90B01iBB20,RB20..WC198205-198404

main88536-90B04iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88536BBRACKET, COOLING UNIT, NO.3

main88536-90B02×2iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88536CBRACKET, COOLING UNIT, NO.4

main88536-90B03iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-90B00×2iHDB30..EUR199109-199301

88540BLOWER ASSY, COOLER

main88540-90B00iRB20..DLX..WC..(GEN,ME)198205-199301

NO.1

main88540-90B01iFB30,RB20..DLX..WC..(GEN,ME)198205-199301

NO.2

main88540-90B02iFB30,RB20..DLX..WC..(GEN,ME)198205-199301

NO.3

main88540-90B03iFB30,RB20..DLX..WC..(GEN,ME)198205-199301

NO.4

main88540-90B04iFB30,RB20..WC198205-199301

NO.1,HEAVY TYPE

main88540-90B05iFB30,RB20..WC198205-199301

NO.2,HEAVY TYPE

main88540-90B06iFB30,RB20..WC198205-199301

NO.3,HEAVY TYPE

main88540-90B07iFB30,RB20..WC198205-199301

NO.4,HEAVY TYPE

main88540-90B08iBB20..RHD..STD..HRF..GEN198405-198510

NO.1,HONG KONG SPEC

main88540-90B09iBB2#,HB30,HZB30..(DLX,STD)..WC..GEN198205-199301

NO.2

main88540-90B10iBB20..RHD..STD..HRF..GEN198405-198510

NO.3,HONG KONG SPEC

main88540-90B11iHDB30..EUR199109-199301

NO.4

main88540-90B12iBB20,21,HB30,HZB30..(DLX,EXS)..WC198205-199301

NO.1,HEAVY TYPE

main88540-90B13iBB20,21,HB30,HZB30..(DLX,EXS)..WC198205-199301

NO.2,HEAVY TYPE

main88540-90B14iBB20,21,HB30,HZB30..(DLX,EXS)..WC198205-199301

NO.3,HEAVY TYPE

main88540-90B15iBB20,21,HB30,HZB30..(DLX,EXS)..WC198205-199301

NO.4,HEAVY TYPE

main88540-90B23iBB20,21,HB30..EX,EXS198510-199301

NO.3,HEAVY TYPE,AUTO COOLER; NO.4,HEAVY TYPE,AUTO COOLER

main88540-90B24iBB20,21,HB30..EX,EXS198510-199301

NO.2,HEAVY TYPE,AUTO COOLER;NO.1,HEAVY TYPE,AUTO COOLER

main88540-90B25iRB20..17S198510-199301

NO.4,HEAVY TYPE,AUTO COOLER;NO.3,HEAVY TYPE,AUTO COOLER

main88540-90B26iRB20..17S198510-199301

NO.4,HEAVY TYPE,AUTO COOLER;NO.3,HEAVY TYPE,AUTO COOLER

88561COVER, COOLER UNIT

main63952-90B00iBB20,RB20..SRF..WC198205-198510

main63952-90B02iBB20..16S198301-198510

main63952-90B04iRB20..17S198205-198510

main63952-90B05iBB20,RB20..SRF..WC..GEN198302-198510

*DSBD

main63952-90B06iBB20,RB20..DLX..HRF..WC..GEN198302-198510

*DSBD

main63952-90B08iBB20,21,22..15S; BB20,RB20..RHD..HRF..26S..WC198510-199301

*SSBD

main63952-90B09iBB20,21,FB30,RB20..SRF..WC198510-199301

main63952-90B10iBB20,21,FB30,HB30,RB20..DLX..HRF..WC; BB20,21,HB30..EX,EXS198510-199301

main63952-90B11iBB20,21,RB20..RHD..SRF..26S..WC198510-199301

*SSBD

main63952-90B12iRB20..17S198510-199301

main63952-90B13iBB20,21,FB30,RB20..SRF..WC198510-199301

*DSBD

main63952-90B14iBB20,21,FB30,HB30,RB20..HRF..WC..(GEN,ME); RB20..17S198510-199301

*DSBD

88566DUCT, COOLER AIR, NO.1

main88566-90B01×2iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88567RMOULDING, EVAPORATOR COVER

main63905-90B00iBB20..RHD..STD..HRF..GEN198408-198510

HONG KONG SPEC

main63905-90B01iBB20,21,FB30,HB30,HZB30,RB20..SRF..WC198205-199301

main63905-90B02iBB2#,HB30,HZB30,RB20..RHD..HRF..WC..GEN198205-199301

W/ROOM RACK

main63905-90B03iBB20,21,FB30,HB30,RB20..LHD..HRF..WC198205-199301

W/ROOM RACK

88568FILTER, COOLER UNIT COVER

main88568-90B01×2iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88578BPACKING, COOLING UNIT, NO.1

main88578-90B02iHDB30..EUR199109-199301

88625THERMISTOR, COOLER, NO.1

main88625-12040iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88635RESISTOR, COOLER UNIT BLOWER

main88635-90B00×2iFB30,RB20..WC198205-199301

NO.2,NO.4

main88635-90B02×2iBB2#,HB30,HZB30..WC198205-199301

NO.2,NO.4

main88635-90B04×2iRB20..17S198510-199301

NO.1,NO.3,AUTO COOLER;NO.2,NO.4,AUTO COOLER

main88635-90B05×2iBB20,21,HB30..EX,EXS198510-199301

NO.1,NO.3,AUTO COOLER;NO.2,NO.4,AUTO COOLER

88669BHOSE, COOLER AIR

main88669-90B00iBB20,21,HB30,RB20..EX,EXS198510-199301

AUTO COOLER

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

88717FPIPE, COOLER REFRIGERANT SUCTION, F

main88717-90B00iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

6395490B00

main63954-90B00

6395490B01

main63954-90B01

8856916020CLAMP (FOR COOLER RELAY)

main88569-16020

9004464009

main90044-64009

9009902133

main90099-02133

9009905104

main90099-05104

9009914046

main90099-14046

9009914065

main90099-14065

9009914066

main90099-14066

9046706024

main90467-06024

9046710017

main90467-10017

9046720002

main90467-20002

9048026003

main90480-26003

9048026011

main90480-26011

9165160825

main91651-60825

9324016010

main93240-16010

9338516012

main93385-16012

9338516016

main93385-16016

9338518020

main93385-18020

9351014016

main93510-14016

9354015016

main93540-15016

43 parts on this diagram · 3 diagrams in section
