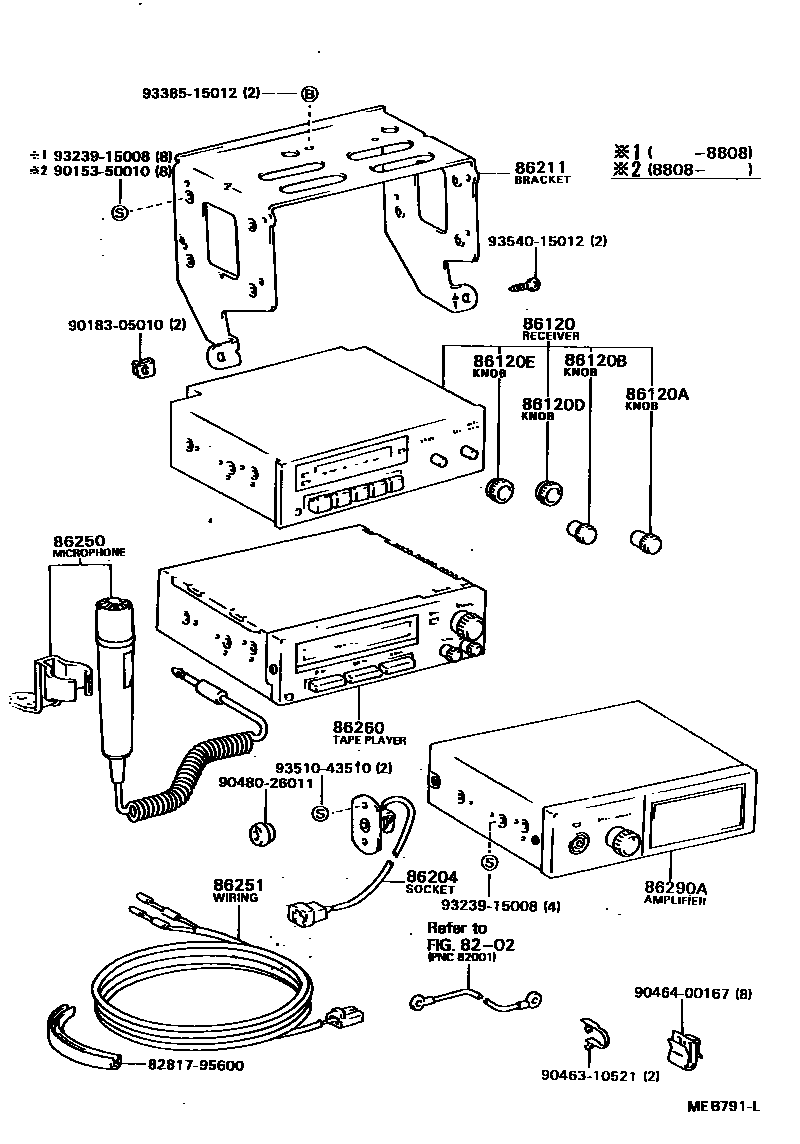

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86120RECEIVER ASSY, RADIO

main86120-14390iBB20,RB20..GEN;BB20..WOC..ARL198205-198408

AM/SW

main86120-14392iBB20,21,HB30..(22S,26S,30S)..WOC..GEN; FB30,RB20..GEN,ME198408-198808

AM/SW

main86120-14420iBB20..WOC; RB20..DLX,STD198205-198408

12V,AM

main86120-14421iBB20,21,HB30..(20S,22S,23S,25S,26S,30S)..WOC; FB30,RB20..DLX,STD198408-198808

12V,AM

main86120-14440iBB20..DLX..WOC; RB20..DLX,EXS198205-198206

12V,AM/FM

main86120-14460iBB20..DLX..WOC; RB20..DLX,EXS198206-198302

12V,AM/FM

main86120-14461iBB20..DLX..WOC;BB20..STD..SRF..26S;BB20..LHD..STD..HRF;BB20..STD..(20S,22S)198409-198510

12V,AM/FM

main86120-16350iBB21,HB30..WOC198808-199001

FUJITSU TEN,12V,AM

main86120-16430iFB30,RB20198808-199301

FUJITSU TEN,12V,AM/FM

main86120-16460iBB21,HB30,HZB30..WOC..(GEN,ME); FB30,RB20..GEN,ME198808-199301

MATSUSHITA,ID=5108,AM/SW

main86120-60041iBB20..GEN,IRQ;BB20..20S..WC198408-198510

24V,AM

main86120-90B01iBB20..GEN198408-198510

24V,AM/SW

main86120-90B03iBB20..ARL,GEN198302-198408

24V,AM/FM

main86120-90B05iBB2#,HB30..GEN198510-198808

24V,AM/SW

main86120-90B06iHB30..DLX,EX;HB30..STD..GEN;BB20,21..20S..WC;BB20,21..15S,16S,22S,25S,26S198510-198808

24V,AM/FM

main86120-90B11iBB2#,HB30..GEN198808-199301

24V,AM/SW

main86120-90B12iBB2#,HZB30..5F199001-199301

MATSUSHITA,24V,AM/FM

main86120-95403iBB2#,HB30..DLX,STD198510-198808

24V,AM

main86120-95410iBB2#,HB30..GEN,ME; BB21,HB30..(DLX,STD)..WC198808-199001

MATSUSHITA,24V AM; MATSUSHITA,24V,AM

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14130iBB21;HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB20..15S,16S,22S,26S198510-199301

24V,AM/FM

main86128-14580iBB20,21,22,HB30..GEN198510-199301

24V,AM/SW

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-14070iBB21;HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB20..15S,16S,22S,26S198510-199301

24V,AM/FM

main86128-14580iBB20,21,22,HB30..GEN198510-199301

24V,AM/SW

86120DKNOB, RADIO RECEIVER TONE

main86128-14030iBB21;HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB20..15S,16S,22S,26S198510-199301

24V,AM/FM

main86128-14600iBB20,21,22,HB30..GEN198510-199301

24V,AM/SW

86120EKNOB, RADIO RECEIVER BALANCE

main86128-14030iBB21;HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB20..15S,16S,22S,26S198510-199301

24V,AM/FM

main86128-14700iBB20,21,22,HB30..GEN198510-199301

24V,AM/SW

86204SOCKET SUB-ASSY, AMPLIFIER MICROPHONE

main86204-90B00iBB20,RB20..GEN,IRQ; BB20..WC..ARL; RB20..WOC..ARL198205-198305

86211BRACKET, RADIO, NO.1

main86211-90B00iBB2#,30,HB3#,RB20..RHD198205-198808

main86211-90B01iBB20,RB20..LHD198205-198408

main86211-90B04iBB2#,HB3#,HDB30,HZB30,RB20..RHD198808-199301

main86211-90B05iBB21,32,FB30,HB30,HDB30,HZB30,RB20..LHD198808-199301

86250MICROPHONE ASSY, AMPLIFIER

main86250-90B00iBB20,RB20..GEN,IRQ; BB20..WC..ARL; RB20..WOC..ARL198205-198305

main86250-90B03iBB2#,FB30,HB30,HZB30,RB20..ARL,GEN,ME198509-199301

main86250-90B05iHZB30..26S199012-199301

HONG KONG SPEC

86251WIRING, AMPLIFIER MICROPHONE

main86251-90B00iBB20,RB20..GEN,IRQ; BB20..WC..ARL; RB20..WOC..ARL198205-198305

main86251-90B02iHZB30..26S199012-199301

HONG KONG SPEC,FR

main86251-90B03iHZB30..26S199012-199301

HONG KONG SPEC,RR

86260TAPE PLAYER ASSY

main86260-14210iBB20..WOC..GEN; RB20..GEN;RB20..WC..ARL198205-198408

12V,NON REVERSE

main86260-90B00iRB20;BB20..WOC..GEN198305-198408

12V,AUTO REVERSE

main86260-90B02iBB20..ARL,GEN198305-198408

24V,AUTO REVERSE

main86260-90B03iBB20..WC198205-198305

24V,NON REVERSE

main86260-90B05iBB20,21..20S..WC;BB2#,HB30..(DLX,EXS,STD)..(15S,16S,22S,23S,25S,26S,30S)198510-198808

24V,NON REVERSE

main86260-90B06iBB20,21..20S..WC;BB2#,HB30..15S,16S,22S,23S,25S,26S,30S198510-198808

24V,AUTO REVERSE

main86260-90B08iBB2#,HZB30..WC..GEN; BB21,HZB30..ARL; BB21..WC..ME199001-199111

24V,NON REVERSE

main86260-90B09iBB21,HB30..WOC198808-199001

12V,AUTO REVERSE

main86260-90B10iBB2#,HZB30..WC..(GEN,ME); BB21,HZB30..ARL199001-199301

24V,AUTO REVERSE

main86260-90B11iBB21,HZB30..WOC..GEN; BB21..WOC..ME199001-199111

12V,NON REVERSE

86290AAMPLIFIER ASSY, MICROPHONE

main86290-90B00iBB20..(22S,26S)..WOC; RB20..GEN,ME198510-198603

12V

main86290-90B01iBB2#,HB30..DLX,STD198610-198808

24V

main86290-90B02iBB21,HZB30..WOC..(GEN,ME)199001-199301

12V

main86290-90B03iBB2#,HB30,HZB30..(DLX,STD)..5F198808-199301

24V

8281795600PROTECTOR, WIRING HARNESS, NO.1

main82817-95600

9015350010

main90153-50010

9018305010

main90183-05010

9046310521

main90463-10521

9046400167

main90464-00167

9048026011

main90480-26011

9323915008

main93239-15008

9338515012

main93385-15012

9351043510

main93510-43510

9354015012

main93540-15012

22 parts on this diagram · 2 diagrams in section
