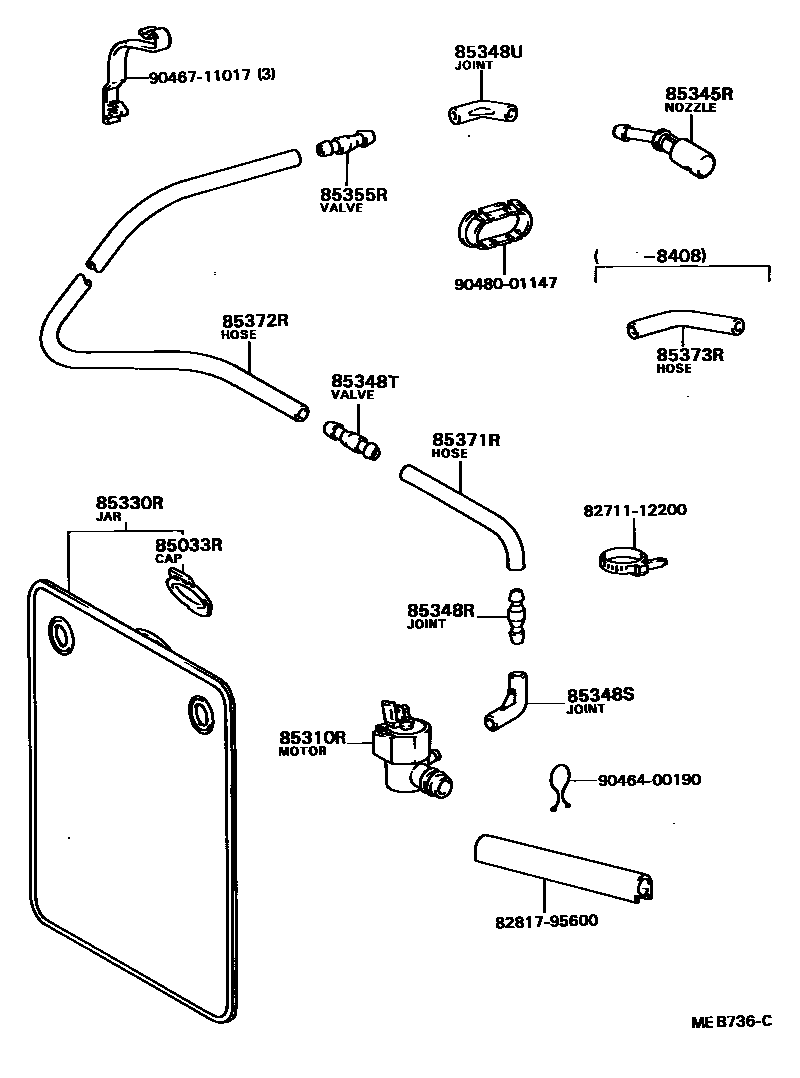

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-22010iBB20,RB20..DLX,EXS198205-199301

85310RMOTOR ASSY, REAR WASHER

main85310-22080iBB20..DLX..WOC198205-199301

12V

main85310-90B00iBB21;HB30..DLX,EX;HB30..STD..GEN;BB20..16S,20S,22S,26S198205-199301

24V

85330RJAR ASSY, REAR WASHER

main85330-22050iBB20,RB20..DLX,EXS198205-199301

85345RNOZZLE, REAR WASHER

main85035-31010iBB20,RB20198205-198408

main85035-90B01iBB20,21,FB30,HB30,HZB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198408-199301

sub85391-36020

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iBB21,FB30,HB30,HZB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198703-199301

main85355-87201iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198703

sub85349-89122

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iBB21,FB30,HB30,HZB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198705-199301

main85355-20070iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198705

sub85355-14481

85348TJOINT, REAR WASHER HOSE, NO.2

main85031-30010iBB20,RB20..DLX,EXS198205-199301

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-14481iBB20,21,FB30,HB30,HZB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198408-199301

85355RVALVE, REAR WASHER HOSE

main85031-90A00iBB20,RB20..DLX,EXS198205-199301

sub85375-12520

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iBB20,RB20..DLX,EXS198205-199301

L=1000(*H,L=100)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06292iBB20,RB20..DLX,EXS198205-198408

L=3550(*H,L=2300)

main90446-06292iBB20,RB20198408-198409

L=3300(*H,L=2400)

main90446-06292iBB20,21,FB30,HB30,HZB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198409-199301

L=3300(*H,L=2200)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBB20,RB20..DLX,EXS198205-198408

L=1000(*H,L=100)

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8281795600PROTECTOR, WIRING HARNESS, NO.1

main82817-95600

9046400190

main90464-00190

9046711017

main90467-11017

9048001147

main90480-01147

17 parts on this diagram · 1 diagram in section
