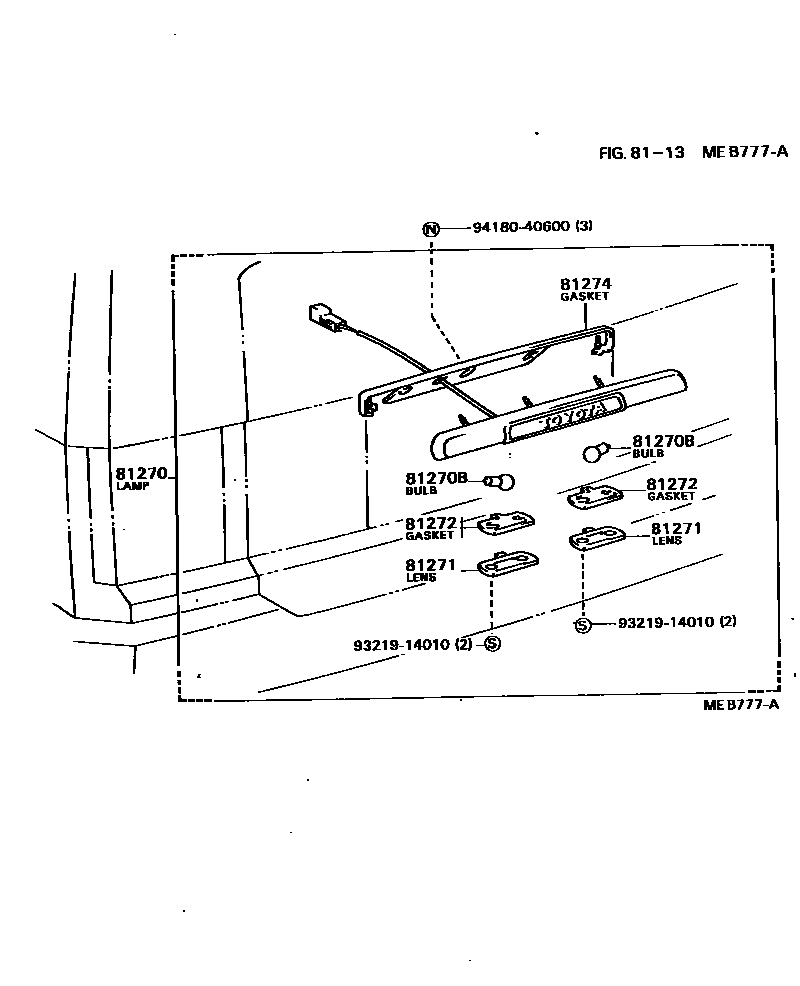

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-29425iBB20,21,HB30,HZB30..WOC..(GEN,ME); FB30,RB20..GEN,ME198302-199301

12V,*DSBD

main81270-39365iBB21,HZB30..WOC; FB30,RB20..GEN,ME199008-199301

12V

main81270-39375iBB21,HZB30199001-199008

24V

main81270-39385iBB20,21,23,HB30,HZB30..5F..(GEN,ME)198302-199301

24V,*DSBD

main81270-39495iRB20..ARL199008-199205

12V

main81270-90B05iBB21,HZB30199008-199301

24V

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-16016×2iBB21,23;HB30..DLX,EX;BB20..20S..WC;HB30..STD..GEN;BB20..15S,16S,22S,26S198205-199001

24V 5W,24V 5W

main99132-11050×2iRB20..ARL199008-199301

12V 5W,12V

main99132-11075×2iBB21,HZB30..WOC; FB30,RB20..GEN,ME199008-199301

12V 7.5W,12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-13070×2iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

main81271-95700×2iBB2#,FB30,HB30,HZB30,RB20..(4F,5F)..(GEN,ME)198302-199301

*DSBD

81272GASKET, LICENSE PLATE LAMP LENS

main81272-13070×2iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

main81272-95700×2iBB2#,FB30,HB30,HZB30,RB20..(4F,5F)..(GEN,ME)198302-199301

*DSBD

81274GASKET, LICENSE PLATE LAMP BODY

main81274-95700iBB2#,FB30,HB30,HZB30,RB20..(4F,5F)..(GEN,ME)198302-199301

*DSBD

main81274-95A00iBB2#,32,FB30,HB30,HZB30,RB20..15S,16S,17S,20S,22S,23S,25S,26S,29S,30S198205-199301

9321914010

main93219-14010

9418040600

main94180-40600

7 parts on this diagram · 1 diagram in section
