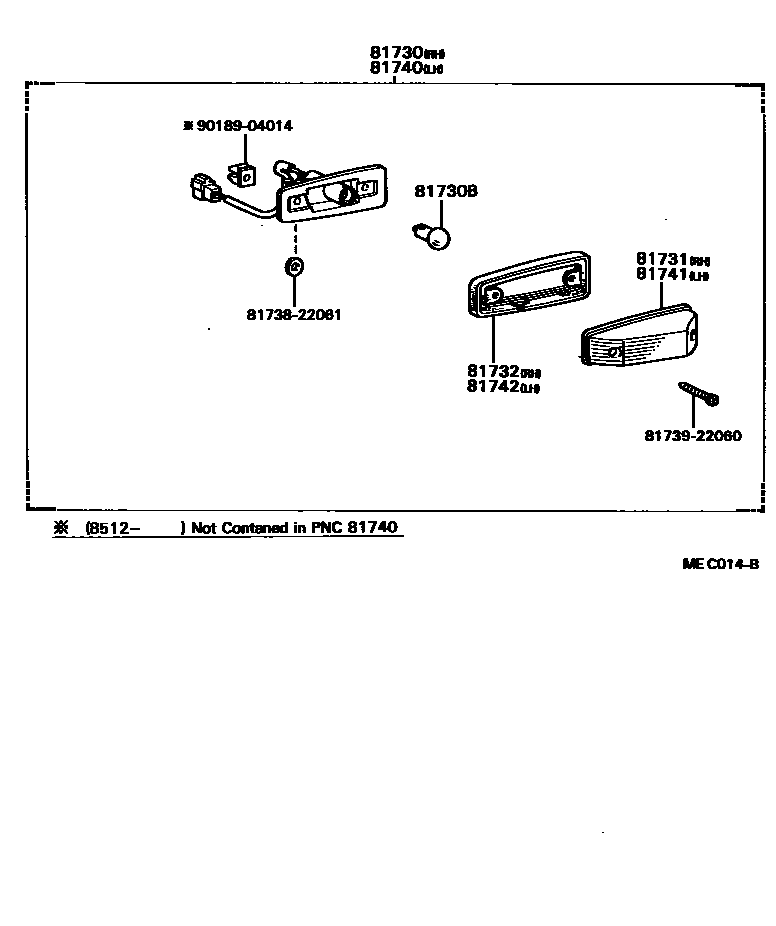

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-20120iFB30; HB30,HZB30..WOC..GEN198610-199301

12V

main81730-90A00iHB30,HZB30..GEN,ME198708-199008

24V

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11050×2iRB20..ARL199008-199205

12V 5W

main90981-16016×2iBB20,21..LHD..(GEN,ME)198308-199301

24V 5W,24V 5W

main99132-11050×2iBB20,21,32,HB30,HZB30..LHD..(22S,25S,26S,30S)..WOC; FB30,RB20..LHD198308-199301

12V 5W,12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-20120iFB30,HB30,HZB30..GEN,ME198610-199301

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-14100iFB30,HB30,HZB30..GEN,ME198610-199301

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-69015iHB30..GEN198610-198708

24V

main81740-20120iBB20,21..LHD..WOC; BB20,21..RHD..WOC..GEN; RB20..LHD; RB20..RHD..GEN198512-199008

12V

main81740-29195iBB20..RHD..(22S,26S)..WOC; RB20..RHD..GEN198208-198512

12V

main81740-69015iBB20,21..RHD..(22S,26S)198208-198708

24V

main81740-90A00iBB21..LHD; BB21..RHD..(22S,26S)198708-199008

24V

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-20120iBB21,HZB30,RB20..ARL199008-199301

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81742-14100iBB21..RHD..GEN;BB20,RB20..RHD..(22S,26S)198208-199301

8173822061

main81738-22061

8173922060

main81739-22060

9018904014

main90189-04014

10 parts on this diagram · 1 diagram in section
