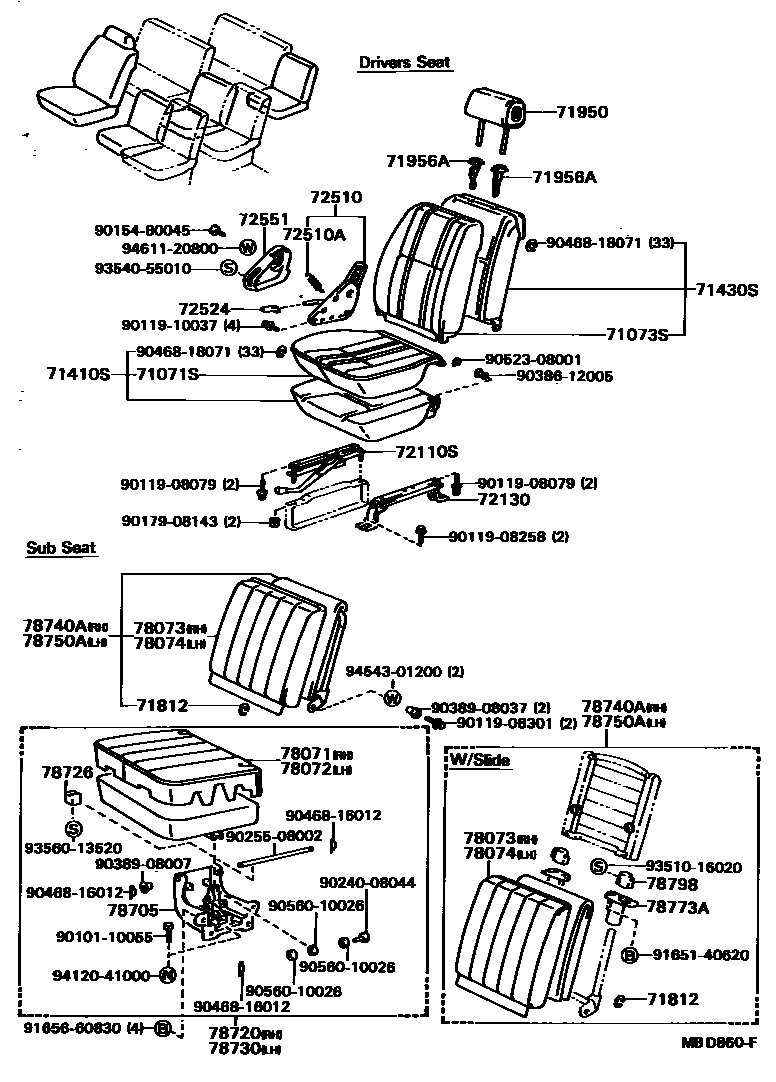

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1 0018 1 0020 1 0021 1 0022 1 0023 1 0024 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-90B02iBB20,RB20..RHD..STD..GEN198205-198510

VL

main71071-90B03iBB20,RB20..WOC..ARL198205-198510

VL

main71071-90B04iBB20,21,HB30,RB20..RHD..(DLX,EX)..GEN198205-198808

FB

main71071-90B06iBB20,RB20..RHD..DLX..GEN198205-198306

PF

main71071-90B09iBB20,RB20..20S..WC198205-198808

FB

main71071-90B10iBB20,RB20..20S..WC198205-198306

PF

main71071-90B11iBB20..16S198303-198510

FB

main71071-90B13iBB20,RB20..RHD..DLX..GEN198306-198510

PF

main71071-90B14iBB20,RB20..20S..WC198306-198510

PF

main71071-90B15iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main71071-90B16iBB20,21,HB30,RB20..RHD..STD..(22S,26S,30S)198510-198808

VL

main71071-90B16-06iBB21,HB30,HDB30,RB20..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main71071-90B16-06iHZB30..RHD..STD..GEN199001-199301

SABLE

main71071-90B17iBB20,RB20..WOC..ARL198510-198610

VL

main71071-90B19iBB20,21,HB30,RB20..RHD..DLX..GEN198510-198808

PF

main71071-90B21iBB20,RB20..20S..WC198510-198610

PF

main71071-90B22iBB20,21..16S198510-198808

FB

main71071-90B23iBB2#..15S198510-198808

VL

main71071-90B23-06iBB23198808-199301

VL,BROWN,SABLE

main71071-90B25-06iBB21,HB30..RHD..STD..GEN198808-199301

FB,SABLE,BROWN

main71071-90B27-06iHZB30..WC..ARL198808-199301

MOQUETTE,SABLE,SABLE

main71071-90B29-06iBB21,HB30,HZB30,RB20..RHD..DLX..GEN198808-199301

PF,SABLE,SABLE

main71071-90B30-06iBB21..16S198808-199301

MOQUETTE,SABLE,SABLE

main71071-90B32-06iHB30,HZB30..WC..ARL198808-199108

MOQUETTE,SABLE,SABLE

main71071-90B35-06iBB21,HB30,HZB30,RB20..20S,23S198810-199301

FB,SABLE,SABLE

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-90B02iBB20,RB20..RHD..STD..GEN198205-198304

VL

main71073-90B03iBB20,RB20..RHD..STD..GEN198205-198510

VL

main71073-90B04iBB20,RB20..RHD..DLX..GEN198205-198305

FB

main71073-90B06iBB20,RB20..RHD..DLX..GEN198205-198211

PF

main71073-90B07iBB20..16S198303-198510

FB

main71073-90B09iBB21,HB30,RB20..20S,23S198205-198708

FB

main71073-90B10iBB20,RB20..20S..WC198205-198306

PF

main71073-90B11iBB20,RB20..RHD..DLX..GEN198211-198306

PF

main71073-90B15iBB20,RB20..RHD..DLX..GEN198305-198408

FB

main71073-90B17iBB20,RB20..RHD..DLX..GEN198306-198410

PF

main71073-90B18iBB20,RB20..20S..WC198306-198510

PF

main71073-90B19iBB20,RB20..RHD..DLX..GEN198410-198510

PF

main71073-90B21iBB20..RHD..STD..HRF..GEN198405-198410

HONG KONG SPEC

main71073-90B23-06iHDB30,HZB30..RHD..STD..GEN198808-199301

VL,SABLE

main71073-90B24iBB20,RB20..RHD..STD198510-198708

VL

main71073-90B27iBB20,21..16S198510-198708

FB

main71073-90B28iBB20,RB20..20S..WC198510-198610

PF

main71073-90B29iBB20,21,HB30,RB20..RHD..DLX..GEN198510-198708

PF

main71073-90B33-02iBB21..16S198708-198808

FB,RED

main71073-90B34-02iBB21,HB30,RB20..RHD..DLX..GEN198708-198808

FB,RED,RED

main71073-90B35-02iBB21,HB30,RB20..RHD..STD..GEN198708-198808

VL,RED,RED

main71073-90B35-06iHDB30,HZB30..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main71073-90B36-02iBB21,HB30,RB20..RHD..DLX..GEN198708-198808

PF,WINE,WINE

main71073-90B38-06iBB21,HB30,RB20..20S,23S198808-199301

FB,SABLE

main71073-90B39-06iBB21,HZB30..RHD..DLX..WC199108-199301

FB,SABLE,SABLE

main71073-90B47-06iBB21,HB30,HZB30,RB20..RHD..DLX..GEN198808-199108

PF,SABLE,SABLE

main71073-90B52-06iBB21..16S198808-199301

MOQUETTE,SABLE,SABLE

main71073-90B53-06iHB30,HZB30..WC..ARL198808-199301

MOQUETTE,SABLE,SABLE

main71073-90B54-06iBB21,HB30,HZB30,RB20..20S,23S198810-199301

FB,SABLE,SABLE

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-90B02iBB20,RB20..RHD..STD..GEN198205-198510

VL

main71410-90B03iBB20,RB20..WOC..ARL198205-198510

VL

main71410-90B03iBB20..RHD..STD..HRF..GEN198504-198510

HONG KONG SPEC

main71410-90B04iBB20,RB20..20S..WC198205-198808

FB

main71410-90B06iBB20,RB20..RHD..DLX..GEN198205-198306

PF

main71410-90B09iBB20,21,HB30,RB20..RHD..(DLX,EX)..GEN198205-198808

FB

main71410-90B10iBB20,RB20..20S..WC198205-198306

PF

main71410-90B11iBB20..16S198303-198510

FB

main71410-90B13iBB20,RB20..RHD..DLX..GEN198306-198510

PF

main71410-90B14iBB20,RB20..20S..WC198306-198510

PF

main71410-90B15iBB20..RHD..STD..HRF..GEN198405-198504

HONG KONG SPEC

main71410-90B16iBB20,21,HB30,RB20..RHD..STD..(22S,26S,30S)198510-198808

VL

main71410-90B16-06iHZB30..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main71410-90B17iBB20,RB20..WOC..ARL198510-198610

VL

main71410-90B19iBB20,21,HB30,RB20..RHD..DLX..GEN198510-198808

PF

main71410-90B21iBB20,RB20..20S..WC198510-198610

PF

main71410-90B22iBB20,21..16S198510-198808

FB

main71410-90B23iBB2#..15S198510-198808

VL

main71410-90B23-06iBB23198808-199301

VL,SABLE,SABLE

main71410-90B25-06iHB30..RHD..DLX..GEN198808-199301

FB,SABLE,BROWN

main71410-90B27-06iHB30,HZB30..WC..ARL198808-199108

MOQUETTE,SABLE,SABLE

main71410-90B29-06iBB21,HB30,HZB30,RB20..RHD..DLX..GEN198808-199301

PF,SABLE,SABLE

main71410-90B30-06iBB21..16S198808-199301

MOQUETTE,SABLE,SABLE

main71410-90B32-06iBB21,HB30,HZB30,RB20..RHD..(DLX,EX)..GEN198808-199301

MOQUETTE,SABLE,SABLE

main71410-90B35-06iHZB30..RHD..(DLX,EX)..GEN198810-199301

FB,SABLE,SABLE

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-90B02iBB20,RB20..RHD..STD..GEN198205-198504

VL

main71430-90B03iBB20,RB20..WOC..ARL198205-198510

VL

main71430-90B04iBB20,RB20..20S..WC198205-198808

FB

main71430-90B06iBB20,RB20..RHD..DLX..GEN198205-198306

PF

main71430-90B07iBB20..16S198303-198510

FB

main71430-90B09iBB20,RB20..RHD..DLX..GEN198205-198504

FB

main71430-90B10iBB20,RB20..20S..WC198205-198306

PF

main71430-90B15iBB20,RB20..RHD..DLX..GEN198306-198510

PF

main71430-90B16iBB20,RB20..20S..WC198306-198510

PF

main71430-90B18iBB20..RHD..STD..HRF..GEN198405-198504

HONG KONG SPEC

main71430-90B19iBB20,21,HB30,RB20..RHD..STD..(22S,26S,30S)198510-198808

VL

main71430-90B19-06iBB21,HB30,HDB30,RB20..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main71430-90B20iBB20,RB20..WOC..ARL198510-198610

VL

main71430-90B22iBB20,21,HB30,RB20..RHD..DLX..GEN198510-198808

PF

main71430-90B23iBB20,21..16S198510-198808

FB

main71430-90B24iBB20,RB20..20S..WC198510-198610

PF

main71430-90B25iBB2#..15S198510-198808

VL

main71430-90B31-06iBB21..RHD..WC..GEN198808-199301

FB,SABLE,SABLE

main71430-90B33-06iHB30,HZB30..WC..ARL198808-199301

MOQUETTE,SABLE,SABLE

main71430-90B35-06iBB21,HB30,HZB30,RB20..RHD..DLX..GEN198808-199301

PF,SABLE,SABLE

main71430-90B36-06iBB21..16S198808-199205

MOQUETTE,SABLE,SABLE

main71430-90B52-06iBB21,HB30,HZB30,RB20..20S,23S198810-199301

FB,SABLE,SABLE

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010iBB2#,32,FB30,HB30,HZB30,RB20198205-199301

71950HEADREST ASSY, FRONT SEAT

main71910-90B00iBB20,21,HB30,RB20..20S,23S198205-199301

main71910-90B00-06iHZB30..LHD..STD198808-199301

SABLE,SABLE

main71910-90B02iBB20,RB20..EXS198205-198510

main71910-90B04iBB20,21,RB20..EXS198510-198808

main71910-90B05-06iBB21,HB30,HZB30,RB20..RHD..(DLX,EX)198808-199301

MOQUETTE,SABLE,SABLE

main71910-90B06-06iBB21,RB20..EXS198808-199301

SABLE,SABLE

71956ASUPPORT, FRONT SEAT HEADREST

main71930-90B00iBB20,RB20..LHD..STD198510-198610

main71930-90B00iBB20,RB20..DLX,EXS;BB20,RB20..WOC..ARL198205-198610

W/LOCK

main71931-90B00iBB20,RB20..LHD..STD198510-198610

W/O LOCK

main71956-30020-02iBB21,HB30,RB20..LHD..STD198610-198808

W/O(LOCK),W/O LOCK,DARK WINE,DARK WINE

main71956-30020-02iBB21,HB30,RB20..LHD..STD198610-198808

W/O(LOCK),DARK WINE,DARK WINE

main71956-30020-10iBB21,HB30,HZB30,RB20..ARL198808-199301

W/O(LOCK),W/O LOCK,SABLE,SABLE

main71956-30020-10iBB21,HB30,HZB30,RB20..ARL198808-199301

W/O(LOCK),W/O LOCK SABLE,SABLE

main71990-30020-02iBB21,HB30,RB20..LHD..STD198610-198808

W(LOCK),DARK WINE,DARK WINE

main71990-30020-10iBB21,FB30,HB30,HZB30,RB20..(DLX,EX,EXS)..(GEN,ME)198808-199301

W(LOCK),W/LOCK,SABLE,SABLE

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-90B00iBB2#,HB30,HDB30,HZB30,RB20..RHD198205-199301

72130TRACK ASSY, RH SEAT, INNER

main72130-90B00iBB2#,HB30,HDB30,HZB30,RB20..RHD198205-199301

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-90B00iBB2#,HB30,HDB30,HZB30,RB20..RHD198205-199301

72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

main90506-14508iBB32,HDB30,HZB30199001-199301

main90506-18015iBB2#,FB30,HB30,RB20198205-199301

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-14010-02iBB2#,HB30,RB20..RHD198610-198808

DARK WINE,DARK WINE

main72525-14010-20iBB2#,HB30,HDB30,HZB30,RB20..RHD198808-199301

SABLE,SABLE

main72525-90B00iBB2#,RB20..RHD198205-198610

main72526-14010-02iBB21,FB30,HB30,RB20..LHD198610-198808

DARK WINE,DARK WINE

main72526-14010-20iBB21,32,FB30,HB30,HZB30,RB20..LHD198808-199301

SABLE,SABLE

main72526-90B00iBB20,RB20..LHD198205-198610

72551COVER, RECLINING HINGE, NO.1

main72551-90A00-02iBB2#,HB30,RB20..RHD198610-198808

DARK WINE,DARK WINE

main72551-90A00-36iBB2#,HB30,HDB30,HZB30,RB20..RHD198808-199301

SABLE,SABLE

main72551-90B00iBB2#,RB20..RHD198205-198610

78071COVER SUB-ASSY, SUB SEAT CUSHION, RH

main78071-90B03iBB20,RB20..RHD..STD..26S198205-198301

VL

main78071-90B05iBB20,RB20..LHD..DLX198205-198211

PF

main78071-90B06iBB20,RB20..LHD..DLX..GEN198205-198305

FB

main78071-90B07iBB20,RB20..LHD..DLX198211-198306

PF

main78071-90B07iRB20..LHD..DLX..26S..4F198211-198307

*SAA,PF

main78071-90B08iRB20..LHD..STD..SRF..26S..5F198301-198307

S.OMAN SPEC,VL

main78071-90B08iBB20,RB20..LHD..STD198301-198510

VL

main78071-90B09iHB30..RHD..DLX..GEN198305-198708

FB

main78071-90B09iBB20,21,RB20..RHD..DLX..26S198510-198708

FB,W/MOST HIND=SUB SEAT

main78071-90B12iBB20,RB20..LHD..DLX198306-198510

PF

main78071-90B16iBB20,21,RB20..RHD..DLX..26S198510-198708

PF

main78071-90B16iBB20,21,FB30,HB30,RB20..LHD..DLX198510-198708

PF,W/MOST HIND=SUB SEAT

main78071-90B17iBB20,21,HB30,RB20..LHD..STD198510-198708

VL

main78071-90B17iBB20,21,HB30,RB20..LHD..STD198510-198708

VL,W/MOST HIND=SUB SEAT

main78071-90B18-02iBB21..RHD..22S198708-198808

FB,RED,RED

main78071-90B18-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

FB,W/MOST HIND=SUB SEAT,RED,RED

main78071-90B18-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

FB,W/MOST HINO=SUB SEAT,RED,RED

main78071-90B19-02iBB21,RB20..RHD..STD..WOC..GEN198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78071-90B19-02iBB21,RB20..RHD..STD..WOC..GEN198708-198808

VL,RED,RED

main78071-90B19-06iBB32..4FC198808-199301

VL,SABLE,SABLE

main78071-90B20-02iHB30..RHD..DLX..GEN198708-198808

PF,WINE,WINE

main78071-90B20-02iHB30..RHD..DLX..GEN198708-198808

PF,W/MOST HIND=SUB SEAT WINE,WINE

main78071-90B21-06iBB21..RHD..22S198810-199301

FB,SABLE,SABLE

main78071-90B25-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78071-90B26-06iHB30..RHD..DLX..GEN198808-199301

MOQUETTE,SABLE,SABLE

main78071-90B26-06iHB30..RHD..DLX..GEN198808-199301

PF,SABLE,SABLE

main78071-90B27-06iBB21..RHD..22S198808-199301

MOQUETTE,SABLE,SABLE

main78071-90B28-06iBB21,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

78072COVER SUB-ASSY, SUB SEAT CUSHION, LH

main78072-90B03iBB20,RB20..RHD..STD..GEN198205-198301

VL

main78072-90B05iBB20,RB20..LHD..DLX..26S198205-198211

PF

main78072-90B06iBB20,RB20..RHD..DLX..GEN198205-198305

FB

main78072-90B07iBB20,RB20..LHD..DLX..26S198211-198306

PF

main78072-90B08iBB20,RB20..RHD..STD..GEN198301-198510

VL

main78072-90B09iBB20,RB20..LHD..DLX..22S..GEN198305-198708

FB

main78072-90B12iBB20,RB20..LHD..DLX..22S198306-198510

PF

main78072-90B18iBB20,21,RB20..RHD..DLX..GEN198510-198708

PF

main78072-90B19iBB20,21..LHD..STD..26S198510-198708

VL

main78072-90B19iBB20,21..LHD..STD..26S198510-198708

VL,W/MOST HIND=SUB SEAT

main78072-90B21-02iHB30..RHD..DLX..GEN198708-198808

PF,WINE,WINE

main78072-90B22-02iBB21,RB20..LHD..STD198708-198808

VL,RED,RED

main78072-90B22-02iBB21,RB20..RHD..STD..WOC..GEN198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78072-90B22-06iBB21,RB20..LHD..STD198808-199301

VL,SABLE,SABLE

main78072-90B23-02iHB30..RHD..(DLX,EX)..GEN198708-198808

FB,RED,RED

main78072-90B24-06iHB30,HZB30..RHD..STD..GEN198810-199301

FB,SABLE,SABLE

main78072-90B28-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78072-90B29-06iHB30..RHD..DLX..GEN198808-199301

PF,SABLE,SABLE

main78072-90B31-06iBB21,RB20..LHD..22S198808-199301

MOQUETTE,SABLE,SABLE

main78072-90B33-06iBB21,FB30,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

78073COVER SUB-ASSY, SUB SEATBACK, RH

main78073-90B03iBB20,RB20..LHD..STD198205-198301

VL

main78073-90B05iBB20,RB20..RHD..DLX..22S198205-198211

PF

main78073-90B06iBB20,RB20..RHD..DLX..22S198205-198305

FB

main78073-90B07iBB20,21,RB20..RHD..DLX..26S198206-198808

FB,W/SLIDE

main78073-90B07iBB20,21,FB30,HB30,RB20..LHD..DLX..GEN198510-198808

FB,W/SLIDE,MOST HIND=SUB SEAT

main78073-90B07iHB30..RHD..DLX..GEN198610-198808

FB

main78073-90B09iBB20,RB20..RHD..DLX..26S198211-198306

PF

main78073-90B09iRB20..LHD..SRF..26S..WC..5F198211-198307

*SAA,PF

main78073-90B10iBB20,RB20..RHD..STD..26S198301-198510

VL

main78073-90B10iRB20..LHD..STD..SRF..26S..5F198301-198307

S.OMAN SPEC,VL

main78073-90B11iBB20,21,FB30,HB30,RB20..LHD..DLX..(GEN,ME)198305-198708

FB

main78073-90B11iBB20,21,RB20..RHD..DLX..26S198510-198708

FB,W/MOST HIND=SUB SEAT

main78073-90B14iBB20,RB20..RHD..DLX..26S198306-198510

PF

main78073-90B18iBB20,21,RB20..RHD..DLX..26S198510-198708

PF,W/MOST HIND=SUB SEAT

main78073-90B18iBB20,21,RB20..RHD..DLX..26S198510-198708

PF

main78073-90B19iBB20,21,HB30,RB20..LHD..STD198510-198708

VL,W/MOST HIND=SUB SEAT

main78073-90B19iBB20,21,HB30,RB20..LHD..STD198510-198708

VL

main78073-90B19-06iHZB30..RHD..STD..GEN199001-199301

VL,SABLE

main78073-90B20iBB20,21,FB30,HB30,RB20..LHD..DLX..GEN198510-198808

PF,W/SLIDE,MOST HIND=SUB SEAT

main78073-90B20iBB20,21,RB20..RHD..DLX..22S198510-198808

PF,W/SLIDE

main78073-90B21-02iBB21..RHD..22S198708-198808

PF,W/MOST HIND=SUB SEAT,WINE,WINE

main78073-90B21-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

PF,WINE,WINE

main78073-90B22-02iBB21,HB30..LHD..STD..GEN198708-198808

VL,RED,RED

main78073-90B22-02iBB21,HB30..LHD..STD..GEN198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78073-90B22-06iBB32..4FC198808-199301

VL,SABLE,SABLE

main78073-90B23-02iBB21,RB20..RHD..DLX..26S198708-198808

FB,W/MOST HIND=SUB SEAT,RED,RED

main78073-90B23-02iHB30..RHD..DLX..GEN198708-198808

FB,RED,RED

main78073-90B24-06iHB30,HZB30..RHD..DLX..GEN198810-199301

FB,SABLE,SABLE

main78073-90B27-06iHB30,HZB30..RHD..DLX..GEN198808-199301

MOQUETTE,W/SLIDE,SABLE,SABLE

main78073-90B27-06iBB21,RB20..RHD..DLX..26S198808-199301

MOQUETTE,SABLE,SABLE

main78073-90B28-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78073-90B29-06iHZB30..RHD..DLX..GEN199001-199301

MOQUETTE,SABLE

main78073-90B30-06iHB30,HZB30..RHD..DLX..GEN198808-199301

PF,W/SLIDE,SABLE,SABLE

main78073-90B31-06iHB30..RHD..DLX..GEN198808-199301

PF,SABLE,SABLE

main78073-90B32-06iBB21,FB30,HB30,RB20..LHD..DLX198808-199301

MOQUETTE,SABLE,SABLE

main78073-90B33-06iBB21,FB30,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

main78073-90B34-06iBB21,RB20..RHD..DLX..26S198808-199301

PF,SABLE

78074COVER SUB-ASSY, SUB SEATBACK, LH

main78073-90B03iBB20,RB20..LHD..STD..26S198205-198301

VL

main78073-90B05iBB20,RB20..RHD..DLX..GEN198205-198211

PF

main78073-90B06iBB20,RB20..LHD..DLX..26S198205-198305

FB

main78073-90B07iBB20,21,RB20..RHD..DLX..GEN198206-198808

FB,W/SLIDE

main78073-90B09iBB20,RB20..LHD..DLX..26S198211-198306

PF

main78073-90B10iBB20,RB20..RHD..STD..GEN198301-198510

VL

main78073-90B11iHB30..RHD..DLX..GEN198305-198708

FB

main78073-90B14iBB20,RB20..LHD..DLX..26S198306-198510

PF

main78073-90B18iBB20,21,RB20..LHD..DLX..(25S,26S)198510-198708

PF

main78073-90B19iHB30..LHD..STD198510-198708

VL

main78073-90B19iBB20,21,RB20..RHD..STD..(22S,26S)198510-198708

VL,W/MOST HIND=SUB SEAT

main78073-90B19-06iHZB30..RHD..STD..GEN199001-199301

VL,SABLE

main78073-90B20iBB20,21,RB20..RHD..DLX..GEN198510-198808

PF,W/SLIDE

main78073-90B21-02iRB20..22S198708-198808

PF,WINE,WINE

main78073-90B22-02iHB30..RHD..STD..GEN198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78073-90B22-02iBB21,RB20..RHD..STD..WOC..GEN198708-198808

VL,RED,RED

main78073-90B22-06iBB21,RB20..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main78073-90B23-02iBB21,RB20..LHD..DLX..(25S,26S)198708-198808

FB,RED,RED

main78073-90B24-06iHB30..RHD..STD..GEN198810-199301

FB,SABLE,SABLE

main78073-90B27-06iBB21,RB20..LHD..DLX..26S..GEN198808-199301

MOQUETTE,W/SLIDE,SABLE,SABLE

main78073-90B27-06iHB30,HZB30..26S198808-199301

MOQUETTE,SABLE,SABLE

main78073-90B28-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78073-90B29-06iHZB30..DLX..GEN199001-199301

MOQUETTE,SABLE

main78073-90B30-06iBB21,RB20..RHD..DLX198808-199301

PF,W/SLIDE,SABLE,SABLE

main78073-90B31-06iBB21,RB20..LHD..22S198808-199301

PF,SABLE,SABLE

main78073-90B32-06iHB30..RHD..DLX..GEN198808-199301

MOQUETTE,SABLE,SABLE

main78073-90B33-06iBB21,FB30,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

78705BRACKET SUB-ASSY, SUB SEAT CUSHION

main78705-90B00iFB30,HB30..29S,30S198205-198808

main78705-90B00-06iBB32,FB30,HB30,HZB30..(DLX,STD)..(GEN,ME)198808-199301

SABLE,SABLE

78720CUSHION ASSY, SUB SEAT, RH

main78720-90B03iBB20,RB20..RHD..STD..22S198205-198301

VL

main78720-90B05iBB20,RB20..RHD..DLX..26S198205-198211

PF

main78720-90B06iBB20,RB20..LHD..DLX..GEN198205-198305

FB

main78720-90B07iBB20,RB20..LHD..DLX198211-198306

PF

main78720-90B07iRB20..LHD..DLX..26S..4F198211-198307

*SAA,PF

main78720-90B08iBB20,RB20..RHD..STD..26S198301-198510

VL

main78720-90B08iRB20..LHD..STD..SRF..26S..5F198301-198307

S.OMAN SPEC,VL

main78720-90B09iHB30..26S198305-198808

FB

main78720-90B09iHB30..RHD..DLX..GEN198510-198708

FB,W/MOST HIND=SUB SEAT

main78720-90B12iBB20,RB20..LHD..DLX198306-198510

PF

main78720-90B15iBB20,21,FB30,HB30,RB20..LHD..DLX..GEN198510-198808

PF

main78720-90B15iBB20,21,FB30,HB30,RB20..LHD..DLX..GEN198510-198808

PF,W/MOST HIND=SUB SEAT

main78720-90B16iBB20,21,FB30,RB20..DLX..ME198510-198708

PF

main78720-90B17iBB20,21,HB30,RB20..LHD..STD198510-198708

VL

main78720-90B17iBB20,21,HB30,RB20..LHD..STD198510-198708

VL,W/MOST HIND=SUB SEAT

main78720-90B17-06iHZB30..ME199001-199301

VL,SABLE

main78720-90B17-06iHZB30..LHD..STD199001-199301

MOQUETTE,SABLE

main78720-90B18-02iBB21,FB30,RB20..DLX..ME198708-198808

PF,RED,RED

main78720-90B19-02iHB30..RHD..STD..GEN198708-198808

VL,RED,RED

main78720-90B19-02iBB21,HB30,RB20..LHD..STD198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78720-90B19-02iBB21,HB30,RB20..LHD..STD198708-198808

VL,W/HOST HIND=SUB SEAT,RED,RED

main78720-90B19-02iBB21,HB30,RB20..LHD..STD198708-198808

VL,MOST HIND=SUB SEAT,RED,RED

main78720-90B19-06iHZB30..LHD..STD198808-199301

VL,SABLE,SABLE

main78720-90B20-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

FB,W/MOST HIND=SUB SEAT,RED,RED

main78720-90B20-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

FB=W/MOST HIND=SUB SEAT,RED,RED

main78720-90B20-02iBB21..RHD..22S198708-198808

FB,RED,RED

main78720-90B21-06iHB30,HZB30..RHD..DLX..GEN198810-199108

FB,SABLE,SABLE

main78720-90B23-06iHZB30..RHD..DLX..GEN199001-199301

MOQUETTE,SABLE

main78720-90B24-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78720-90B25-06iBB21..RHD..22S198808-199301

MOQUETTE,SABLE,SABLE

main78720-90B26-06iBB21,FB30,HB30,RB20..LHD..DLX198808-199301

PF,SABLE,SABLE

main78720-90B28-06iBB21..RHD..WC..GEN198811-199301

FB,SABLE,SABLE

main78720-90B28-06iBB32..4FC199108-199301

VL,SABLE,SABLE

main79720-90B26-06iHZB30..LHD..DLX..GEN199108-199301

PF,W/SLIDE,SABLE

main79720-90B28-06iHZB30..LHD..DLX..GEN199108-199301

PF,W/SLIDE,SABLE

78726CUSHION, SUB SEAT CUSHION FRAME

main78726-90B00iBB20,21,RB20..RHD..26S198510-198808

W/MOST HIND=SUB SEAT

main78726-90B00iBB20,21,RB20..22S,25S198504-199301

78730CUSHION ASSY, SUB SEAT, LH

main78730-90B03iBB20,RB20..LHD..STD..26S198205-198301

VL

main78730-90B05iBB20,RB20..LHD..DLX..26S198205-198211

PF

main78730-90B06iBB20,RB20..LHD..DLX..22S..GEN198205-198305

FB

main78730-90B07iBB20,RB20..RHD..DLX..GEN198211-198306

PF

main78730-90B08iBB20,RB20..RHD..STD..GEN198301-198510

VL

main78730-90B11iBB20,21,RB20..LHD..DLX..(25S,26S)198305-198708

FB

main78730-90B14iBB20,RB20..RHD..DLX..GEN198306-198510

PF

main78730-90B22iFB30,HB30..LHD..DLX..GEN198510-198808

PF

main78730-90B23iBB20,21,RB20..DLX..ME198510-198708

PF

main78730-90B24iBB20,21..LHD..STD..26S198510-198708

VL

main78730-90B24iBB20..LHD..STD..22S198510-198708

VL,W/MOST HIND=SUB SEAT

main78730-90B24-06iHZB30..LHD..STD199001-199301

VL,SABLE

main78730-90B25-02iBB21,RB20..DLX..ME198708-198808

PF,WINE,RED

main78730-90B26-02iBB21,RB20..LHD..STD198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78730-90B26-02iBB21,RB20..RHD..STD..WOC..GEN198708-198808

VL,RED,RED

main78730-90B26-06iHB30..LHD..STD198808-199301

VL,SABLE,SABLE

main78730-90B27-02iHB30..RHD..(DLX,EX)..GEN198708-198808

FB,RED,RED

main78730-90B28-06iBB21..RHD..WC..GEN198810-199301

FB,SABLE,SABLE

main78730-90B32-06iHZB30..DLX..GEN199001-199301

MOQUETTE,SABLE

main78730-90B33-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78730-90B34-06iBB21,HZB30,RB20..RHD..(DLX,EX)..GEN198808-199301

MOQUETTE,SABLE,SABLE

main78730-90B35-06iBB21,RB20..RHD..DLX198808-199301

PF,SABLE,SABLE

main78730-90B40-06iBB21,FB30,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

78740ABACK ASSY, SUB SEAT, RH

main78740-90B03iBB20,RB20..LHD..STD198205-198301

VL

main78740-90B05iBB20,RB20..LHD..DLX198205-198211

PF

main78740-90B06iBB20,RB20..RHD..DLX..26S198205-198305

FB

main78740-90B07iHB30..RHD..DLX..GEN198510-198708

FB,W/SLIDE,MOST HIND=SUB SEAT

main78740-90B07iHB30..RHD..DLX..GEN198206-198708

FB,W/SLIDE

main78740-90B07iHB30..RHD..DLX..GEN198610-198708

FB

main78740-90B09iRB20..LHD..DLX..26S..4F198211-198307

*SAA,PF

main78740-90B09iBB20,RB20..LHD..DLX198211-198306

PF

main78740-90B10iBB20,RB20..LHD..STD198301-198510

VL

main78740-90B10iRB20..LHD..STD..SRF..26S..5F198301-198307

S.OMAN SPEC,VL

main78740-90B12iBB20,21,FB30,HB30,RB20..LHD..DLX198305-198708

FB

main78740-90B12iBB20,21,RB20..RHD..DLX..26S198510-198708

FB,W/MOST HIND=SUB SEAT

main78740-90B15iBB20,RB20..RHD..DLX..22S198306-198510

PF

main78740-90B21iHB30..RHD..DLX..GEN198510-198808

PF,W/MOST HIND=SUB SEAT

main78740-90B21iBB20,21,RB20..RHD..DLX..26S198510-198808

PF

main78740-90B22iBB20,21,FB30,RB20..DLX..ME198510-198708

PF

main78740-90B23iBB20,21,RB20..RHD..STD..26S198510-198708

VL,W/MOST HIND=SUB SEAT

main78740-90B23iBB20,21,HB30,RB20..LHD..STD198510-198708

VL

main78740-90B23-06iHZB30..LHD..STD199001-199301

VL,SABLE

main78740-90B24iHB30..RHD..DLX..GEN198510-198708

PF,W/SLIDE,MOST HIND=SUB SEAT

main78740-90B24iHB30..RHD..DLX..GEN198510-198808

PF,W/SLIDE

main78740-90B25-02iBB21,RB20..RHD..DLX..26S198708-198808

PF,W/SLIDE,MOST HIND=SUB SEAT,WINE

main78740-90B25-02iHB30..RHD..DLX..GEN198708-198808

PF,W/SLIDE,WINE,WINE

main78740-90B25-02iHB30..RHD..DLX..GEN198708-198808

PF,W/SLIDE WINE,WINE

main78740-90B26-02iHB30..RHD..DLX..GEN198708-198808

FB,W/SLIDE,RED,RED

main78740-90B26-02iBB21,FB30,HB30,RB20..LHD..DLX..GEN198708-198808

FB,RED,RED

main78740-90B26-02iBB21,FB30,HB30,RB20..LHD..DLX..GEN198708-198808

FB,W/SLIDE,MOST HIND=SUB SEAT,RED

main78740-90B27-02iBB21,FB30,RB20..DLX..ME198708-198808

PF,WINE,RED

main78740-90B28-02iHB30..RHD..STD..GEN198708-198808

VL,RED,RED

main78740-90B28-02iHB30..RHD..STD..GEN198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78740-90B28-02iBB21,RB20..RHD..STD..WOC..GEN198708-198808

VL,MOST HIND=SUB SEAT,RED,RED

main78740-90B28-06iBB21,RB20..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main78740-90B29-02iBB21,RB20..RHD..DLX..26S198708-198808

FB=W/MOST HIND=SUB SEAT,RED,RED

main78740-90B29-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

FB,RED,RED

main78740-90B29-02iBB21,FB30,HB30,RB20..LHD..DLX198708-198808

FB,W/MOST HIND=SUB SEAT,RED,RED

main78740-90B30-06iHB30,HZB30..RHD..DLX..GEN198810-199301

FB,SABLE,SABLE

main78740-90B32-06iBB21..RHD..22S198808-199301

MOQUETTE,W/SLIDE,SABLE,SABLE

main78740-90B32-06iHB30,HZB30..RHD..DLX..GEN198808-199301

MOQUETTE,SABLE,SABLE

main78740-90B33-06iHZB30..LHD..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78740-90B34-06iHZB30..DLX..GEN199001-199301

MOQUETTE,SABLE

main78740-90B34-06iHZB30..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78740-90B35-06iBB21,RB20..RHD..DLX..26S198808-199301

MOQUETTE,SABLE,SABLE

main78740-90B36-06iBB21..RHD..22S198808-199301

PF,W/SLIDE,SABLE,SABLE

main78740-90B37-06iBB21..RHD..22S198808-199301

PF,SABLE,SABLE

main78740-90B39-06iBB21,FB30,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

78750ABACK ASSY, SUB SEAT, LH

main78740-90B03iBB20,RB20..RHD..STD..GEN198205-198301

VL

main78740-90B05iBB20,RB20..RHD..DLX..GEN198205-198211

PF

main78740-90B06iBB20,RB20..RHD..DLX..GEN198205-198305

FB

main78740-90B09iBB20,RB20..LHD..DLX..26S198211-198306

PF

main78740-90B10iBB20,RB20..LHD..STD..22S198301-198510

VL

main78740-90B12iHB30..RHD..DLX..GEN198305-198708

FB

main78740-90B15iBB20,RB20..RHD..DLX..GEN198306-198510

PF

main78740-90B21iBB20,21,RB20..LHD..DLX..26S198510-198808

PF

main78740-90B22iFB30..ME198510-198708

PF

main78740-90B23iBB20,21,RB20..LHD..STD..(25S,26S)198510-198708

VL

main78740-90B23iHB30..LHD..STD198510-198708

VL,W/MOST HIND=SUB SEAT

main78740-90B23-06iHZB30..LHD..STD199001-199301

VL,SABLE

main78740-90B27-02iFB30..ME198708-198808

PF,WINE,RED

main78740-90B28-02iHB30..LHD..STD198708-198808

VL,RED,RED

main78740-90B28-02iHB30..LHD..STD198708-198808

VL,W/MOST HIND=SUB SEAT,RED,RED

main78740-90B28-06iHB30..RHD..STD..GEN198808-199301

VL,SABLE,SABLE

main78740-90B29-02iFB30,HB30..LHD..DLX198708-198808

FB,RED,RED

main78740-90B30-06iHB30,HZB30..RHD..DLX..GEN198810-199301

FB,SABLE,SABLE

main78740-90B33-06iHZB30..DLX..GEN199001-199301

PF,W/SLIDE,SABLE

main78740-90B34-06iHZB30..DLX..GEN199001-199301

MOQUETTE,SABLE

main78740-90B35-06iBB21,RB20..LHD..DLX..(25S,26S)198808-199301

MOQUETTE,SABLE,SABLE

main78740-90B37-06iBB21,RB20..LHD..DLX..(25S,26S)198808-199301

PF,SABLE,SABLE

main78740-90B39-06iBB21,FB30,RB20..DLX..WC..ME198811-199301

FB,SABLE,SABLE

main78750-90B00iBB20,RB20..LHD..DLX..22S..GEN198206-198708

FB,W/SLIDE

main78750-90B02iBB20,21,RB20..LHD..DLX..26S198510-198808

PF,W/SLIDE

main78750-90B03-02iRB20..22S198708-198808

PF,W/SLIDE,WINE,WINE

main78750-90B04-02iHB30..RHD..(DLX,EX)..GEN198708-198808

FB,W/SLIDE,RED,RED

main78750-90B06-06iHB30,HZB30..RHD..DLX..GEN198808-199301

MOQUETTE,SABLE,SABLE

main78750-90B06-06iHB30,HZB30..26S198808-199301

MOQUETTE,W/SLIDE,SABLE,SABLE

main78750-90B07-06iBB21,RB20..RHD..DLX198808-199301

PF,W/SLIDE,SABLE,SABLE

78773AHOOP, SUB SEATBACK GUIDE

main78773-90B00iBB20,21,RB20..DLX..26S198510-198808

INNER,W/MOST HIND=SUB SEAT

main78773-90B00iBB20,21,RB20..RHD..DLX..26S198206-198808

INNER

main78773-90B00-06iFB30,HB30,HZB30..DLX..GEN198808-199301

INNER,SABLE,SABLE

main78780-90B00iBB20,21,RB20..RHD..DLX..26S198510-198808

OUTER,W/MOST HIND=SUB SEAT

main78780-90B00iBB20,21,RB20..RHD..DLX..26S198206-198808

OUTER

main78780-90B00-06iFB30,HB30,HZB30..DLX..GEN198808-199301

OUTER,SABLE,SABLE

78798SPACER, SUB SEATBACK FRAME

main78798-90B00iHB30..26S198510-198808

W/MOST HIND=SUB SEAT

main78798-90B00iBB21..RHD..22S;BB20,RB20..DLX..22S..GEN198206-198808

main78798-90B00-06iBB21,RB20..DLX..26S..GEN198808-199301

SABLE,SABLE

9010110055

main90101-10055

9011908079

main90119-08079

9011908258

main90119-08258

9011908301

main90119-08301

9011910037

main90119-10037

9015480045

main90154-80045

9017908143

main90179-08143

9024008044

main90240-08044

9025508002

main90255-08002

9038612005

main90386-12005

9038908007

main90389-08007

9038908037

main90389-08037

9046816012

main90468-16012

9046818071

main90468-18071

9052308001

main90523-08001

9056010026

main90560-10026

9165140620

main91651-40620

9165660830

main91656-60830

9351016020

main93510-16020

9354055010

main93540-55010

9356013520

main93560-13520

9412041000

main94120-41000

9454301200

main94543-01200

9461120800

main94611-20800

49 parts on this diagram · 30 diagrams in section
