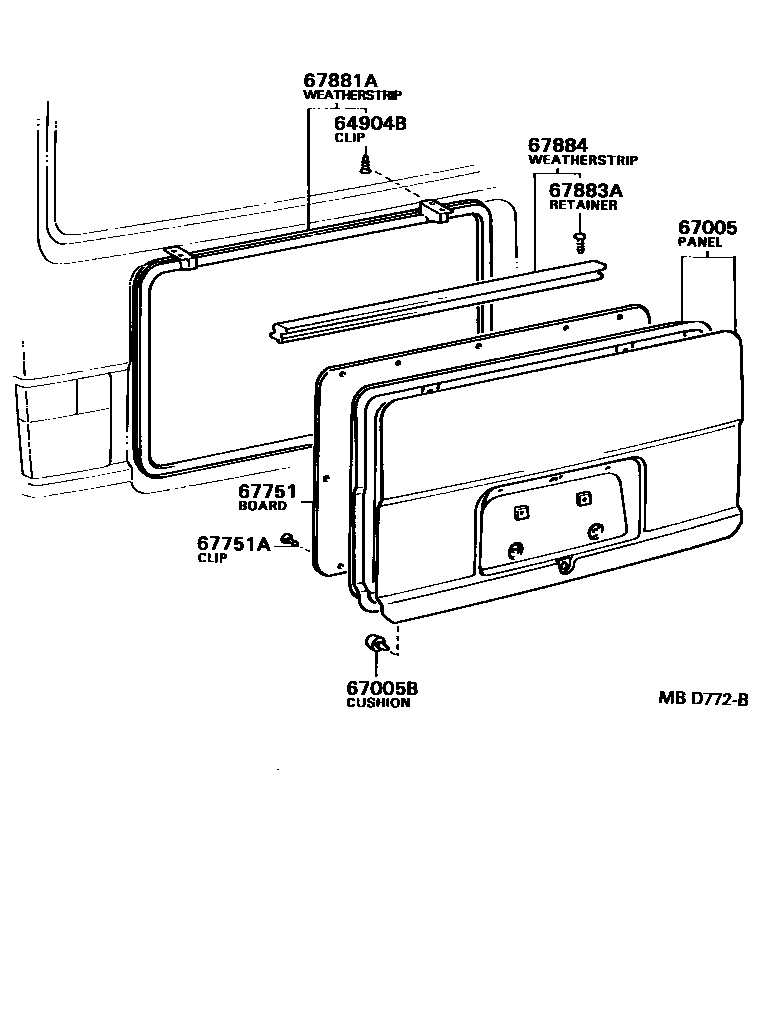

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

64904BCLIP(FOR BACK DOOR WEATHERSTRIP)

main67868-30030×4iBB21,FB30,HB30,RB20;BB20..16S,20S,22S,26S198205-199301

67005PANEL SUB-ASSY, BACK DOOR

main67005-90B02iBB20..(22S,26S)..(GEN,ME);BB21,FB30,HB30,HZB30,RB20..GEN,ME198304-199301

RH,*DSBD

main67006-90B00iBB20,RB20..(22S,26S)..GEN198302-198304

LH,*DSBD

main67006-90B02iBB21,FB30,HB30,HZB30,RB20..17S,22S,25S,26S,29S,30S198610-199301

LH,*DSBD

main67008-90B03iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198808

main67008-90B05iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main67008-90B07iBB2#..15S; BB20,21,HB30,RB20..RHD..(26S,30S); BB20,21,HB30..LHD..STD..(26S,30S)198510-199301

*SSBD

main67008-90B09iBB21,FB30,HB30,HZB30,RB20198808-199301

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09114×2iBB32,HZB30199001-199301

main90541-10007iBB2#..15S; BB20,21,HB30,RB20..RHD..(26S,30S); BB20,21,HB30..LHD..STD..(26S,30S)198510-199301

*SSBD

67751BOARD, BACK DOOR TRIM

main67751-90B00iBB20,21,HB30,RB20..EX,EXS198205-198808

main67751-90B00-08iBB21,HB30,RB20..EX,EXS198808-199301

IVORY,IVORY

main67751-90B02iBB20,RB20..DLX..22S..GEN198205-198510

main67751-90B02-06iBB21,FB30,HB30,HZB30,RB20..DLX..(GEN,ME)198808-199301

SABLE,SABLE

main67751-90B03iBB20,21,FB30,HB30,RB20..(DLX,STD)..(22S,25S,26S,29S,30S)..(GEN,ME)198302-198808

RH,*DSBD

main67751-90B03-06iBB21,FB30,HB30,HZB30,RB20..(DLX,STD)..(GEN,ME)198808-199301

RH,*DSBD,SABLE,SABLE

main67751-90B04iHB30,RB20..EX,EXS198304-198808

RH,*DSBD

main67751-90B04-08iHB30,HZB30,RB20..EX,EXS198808-199301

RH,*DSBD,IVORY,IVORY

main67751-90B05iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main67751-90B05-06iBB21,HB30,HZB30,RB20..RHD..(26S,30S); BB21,HB30,HZB30..LHD..STD..GEN; BB23198808-199301

*SSBD,SABLE,SABLE; SABLE,SABLE; W/*SSBD,SABLE,SABLE

main67751-90B06-08iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 1,IVORY,IVORY

main67761-90B00iBB20,21,FB30,HB30,RB20..(DLX,STD)..(22S,25S,26S,29S,30S)..(GEN,ME)198302-198808

LH,*DSBD

main67761-90B00-06iBB21,HB30,HZB30,RB20..(DLX,STD)..(GEN,ME)198808-199301

LH,*DSBD,SABLE,SABLE

main67761-90B01iHB30,RB20..EX,EXS198304-198808

LH,*DSBD

main67761-90B01-08iHB30,HZB30,RB20..EX,EXS198808-199301

LH,*DSBD,IVORY,IVORY

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07039×12iBB2#..15S; BB20,21,HB30,RB20..RHD..(26S,30S); BB20,21,HB30..LHD..STD..(26S,30S)198510-198808

*SSBD

main90467-07158-08×22iBB21,FB30,HB30,HZB30,RB20..(DLX,STD)..(GEN,ME); BB21,HB30,HZB30,RB20..RHD..(26S,30S); BB21,HB30,HZB30..LHD..STD..GEN; BB23; HB30,HZB30,RB20..EX,EXS198808-199301

*DSBD,IVORY,IVORY; *SSBD,IVORY,IVORY; IVORY,IVORY

main90467-10016-08×15iBB21,FB30,HB30,HZB30,RB20..DLX..(GEN,ME); BB21,HB30,HZB30,RB20..EX,EXS198808-199301

IVORY,IVORY

main90467-10024×15iBB20,21,HB30,RB20..EX,EXS198205-198808

main90467-10025×15iBB20,RB20..DLX..22S..GEN198205-198510

67881AWEATHERSTRIP, BACK DOOR

main67881-90B00iBB20,21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198205-198708

main67881-90B01iBB20,21,HB30,RB20..RHD..(26S,30S); BB20,21,HB30..LHD..STD..(26S,30S)198510-199301

*SSBD

main67881-90B03iBB21,RB20..GEN,ME;BB20..(22S,26S)..(GEN,ME)198304-199301

*DSBD

main67881-90B04iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main67881-90B05iBB21,FB30,HB30,RB20..16S,17S,20S,22S,23S,25S,26S,29S,30S198708-199301

67883WEATHERSTRIP, BACK DOOR, CENTER

main67884-90B00iBB20,RB20..(22S,26S)..GEN198302-198304

*DSBD

67883ARETAINER, BACK DOOR WEATHERSTRIP

main67868-30040×11iBB2#,FB30,HB30,RB20198205-199301

67884WEATHERSTRIP, BACK DOOR, CENTER UPPER

main67882-90B00iBB21,FB30,HB30,RB20;BB20..16S,20S,22S,26S198205-199301

main67882-90B01iBB2#..15S; BB20,21,HB30,RB20..RHD..(26S,30S); BB20,21,HB30..LHD..STD..(26S,30S)198510-199301

*SSBD

9 parts on this diagram · 3 diagrams in section
