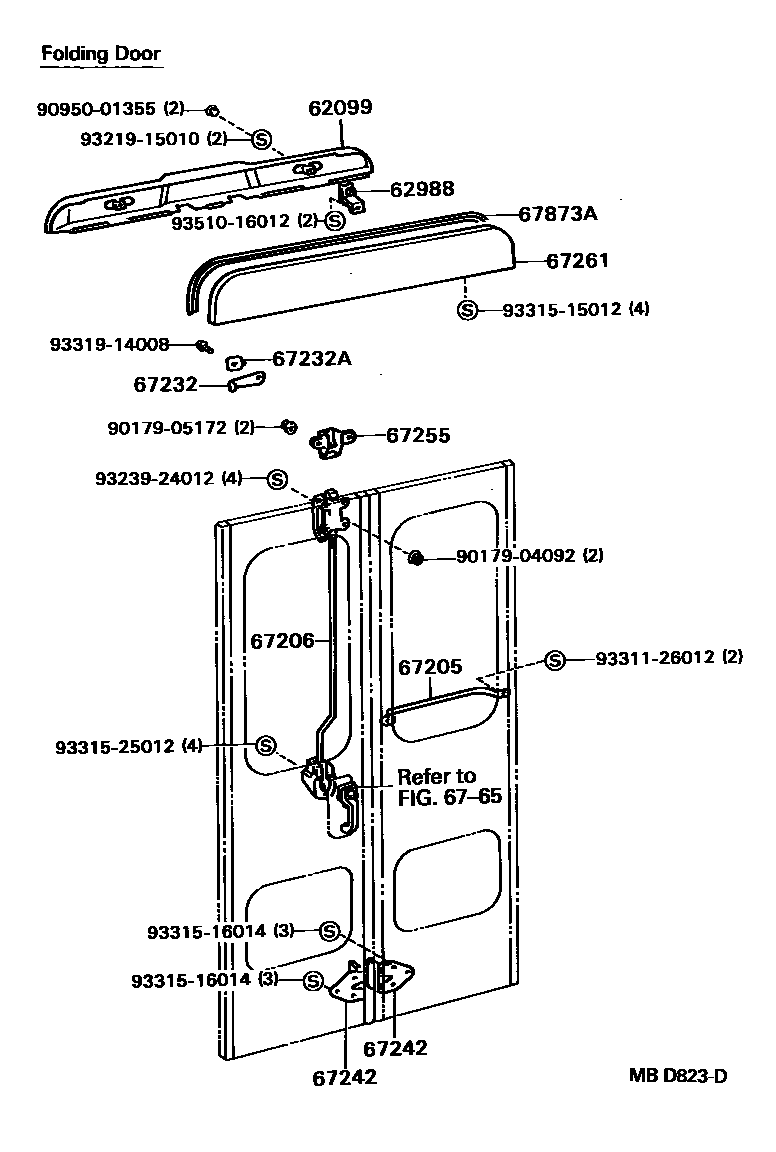

CENTER DOOR LOCK & HINGE

0001 1 0003 1 0006 1

62099COVER SUB-ASSY, CENTER DOOR LOCK

main62099-90B00iBB20..15S;BB2#,HB30,RB20..RHD..WC..GEN198205-198808

main62099-90B00-08iBB2#,HB30,HZB30,RB20..RHD..WC..GEN198808-199301

IVORY,IVORY

main62099-90B01iBB20,21,FB30,HB30,RB20..LHD..WC198205-198808

main62099-90B01-08iBB21,FB30,HB30,HZB30,RB20..LHD..WC198808-199301

IVORY,IVORY

main62099-90B02iBB20,21,HB30,RB20..RHD..(20S,22S,23S,26S,30S)..WOC198205-198808

main62099-90B02-08iBB32..4FC199001-199301

IVORY,IVORY

main62099-90B03iBB20,21,FB30,HB30,RB20..LHD..WOC198205-198808

main62099-90B03-08iBB21,FB30,HB30,HZB30,RB20..LHD..WOC198808-199301

IVORY,IVORY

62988BRACKET, CENTER DOOR COVER, NO.2

main62988-90B00×2iBB20..RHD..STD..HRF..GEN198405-198510

W/COOLER

main62988-90B00-08×2iBB2#,FB30,HB30,HZB30,RB20..WC..(GEN,ME)198808-199301

IVORY,IVORY

67205HANDLE SUB-ASSY, CENTER DOOR INSIDE PULL

main74642-90B00iBB2#,FB30,HB30,HZB30,RB20..GEN,IRQ,ME; BB20,21,HB30,HZB30,RB20..STD..ARL198410-199301

main74642-90B02iBB20,RB20..GEN,IRQ198205-198410

67206LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE

main69302-90B00iBB2#,HB30,HZB30,RB20..RHD..GEN198205-199301

main69302-90B01iBB20,21,32,FB30,HB30,HZB30,RB20..LHD198205-199301

67232STOPPER, CENTER DOOR OPEN

main67232-90506iBB20,21,HB30,HZB30,RB20..STD..ARL198206-199301

main67232-90507iBB32..4FC; HZB30..LHD199001-199301

67232APLATE, CENTER DOOR OPEN STOPPER

main67277-90501iBB32..4FC; HZB30..LHD; HZB30..RHD..30S199001-199301

67242STOPPER, CENTER DOOR, LOWER

main67254-90B00×2iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

67255STOPPER, CENTER INSIDE LOCK

main69405-90B00iBB2#,FB30,HB30,RB20..GEN,IRQ,ME198205-199301

67261COVER, CENTER DOOR SLIDE RAIL

main67207-90B00iBB2#,FB30,HB30,HZB30,RB20..GEN,IRQ,ME198205-199301

6765LOCK CYLINDER SET

→ Go to FIG 67-65

67873AWEATHERSTRIP, CENTER DOOR, UPPER NO.1

main67873-90B00iBB2#,FB30,HB30,HZB30,RB20..GEN,IRQ,ME198205-199301

9017904092

main90179-04092

9017905172

main90179-05172

9095001355

main90950-01355

9321915010

main93219-15010

9323924012

main93239-24012

9331126012

main93311-26012

9331515012

main93315-15012

9331516014

main93315-16014

9331525012

main93315-25012

9331914008

main93319-14008

9351016012

main93510-16012

22 parts on this diagram · 3 diagrams in section
