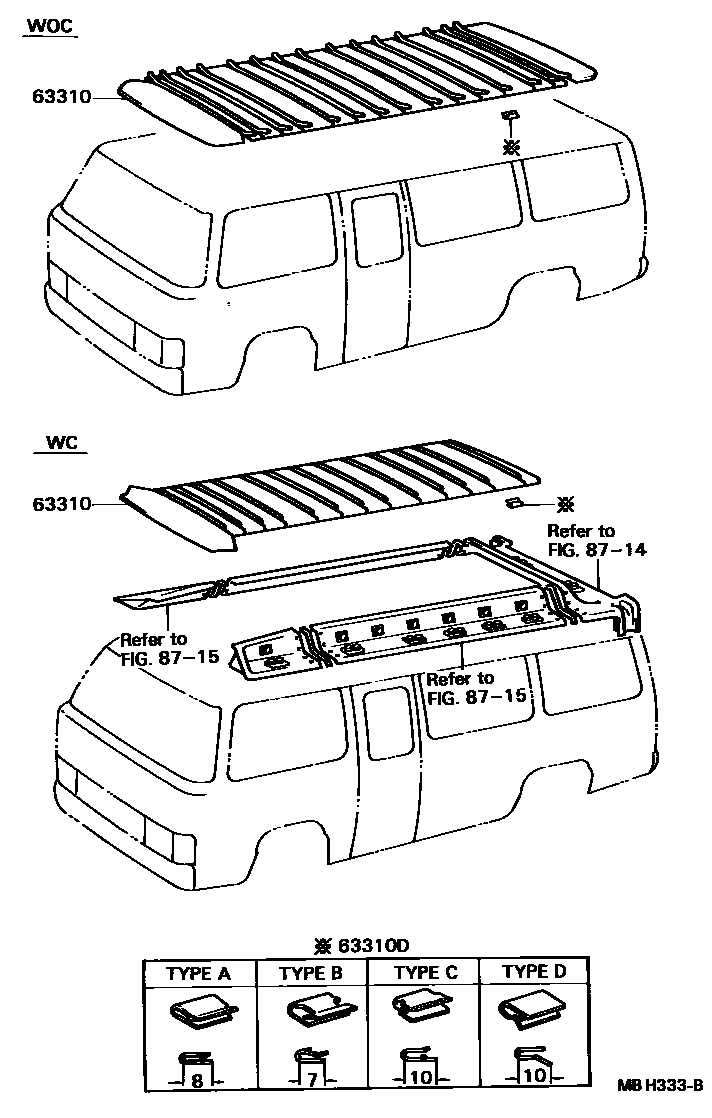

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

63310HEADLINING ASSY, ROOF

main63310-90B00iBB20,21,RB20..SRF..WOC198205-198708

main63310-90B01iBB20,21,RB20..HRF..(20S,22S,26S)..WOC198205-198808

main63310-90B01-08iBB21,RB20..20S; BB21,RB20..HRF..WOC198808-199301

IVORY,IVORY

main63310-90B02iBB20,21,RB20..SRF..WC198205-198708

main63310-90B03iBB20..RHD..STD..HRF..GEN198405-198510

W/COOLER

main63310-90B04iFB30..SRF..WC198610-198708

main63310-90B05iFB30,HB30..SRF..WOC198610-198708

main63310-90B06iHB30..HRF..WOC198610-198808

main63310-90B06-08iBB32,HB30,HZB30..HRF..WOC198808-199301

IVORY,IVORY

main63310-90B07iHB30..26S198610-198807

IVORY

main63310-90B07-08iHB30,HZB30..26S198807-199301

IVORY,IVORY

main63310-90B08iFB30,HB30..DLX..HRF..WC198610-198708

main63310-90B11iBB20,21,RB20..EXS198205-198708

main63310-90B17-08iBB21,RB20..SRF..WOC..GEN; BB21,RB20..WOC..ME198708-199301

IVORY,IVORY

main63310-90B18-08iBB21,RB20..EXS..(ARL,GEN); RB20..17S..ME198708-199301

IVORY,IVORY

main63310-90B19-08iBB21,RB20..SRF..WC..GEN; BB21,RB20..SRF..WC..ME198708-199301

IVORY,IVORY

main63310-90B20-08iFB30..SRF..WC..GEN; FB30..SRF..WC..ME198708-199301

IVORY,IVORY

main63310-90B21-08iFB30,HB30..DLX..HRF..WC..(ARL,GEN); FB30..HRF..ME198708-199301

IVORY,IVORY

main63310-90B22-08iFB30,HB30..SRF..WOC..GEN; FB30..WOC..ME198708-199301

IVORY,IVORY

main63310-90B23-08iBB2#..15S; BB21,RB20..DLX..HRF..WC198708-199301

IVORY,IVORY

63310DCLIP, ROOF HEADLINING

main90468-04008iBB2#..15S198510-199301

TYPE C

main90468-04010iBB20,RB20198205-198508

TYPE A

main90468-04073×34iBB2#,FB30,HB30,RB20198508-199301

TYPE A

main90468-04137iBB20..RHD..STD..HRF..GEN198405-198510

TYPE D,HONG KONG SPEC

main90468-05085×11iBB2#,32,FB30,HB30,HZB30,RB20198205-199301

TYPE B

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

4 parts on this diagram · 13 diagrams in section
