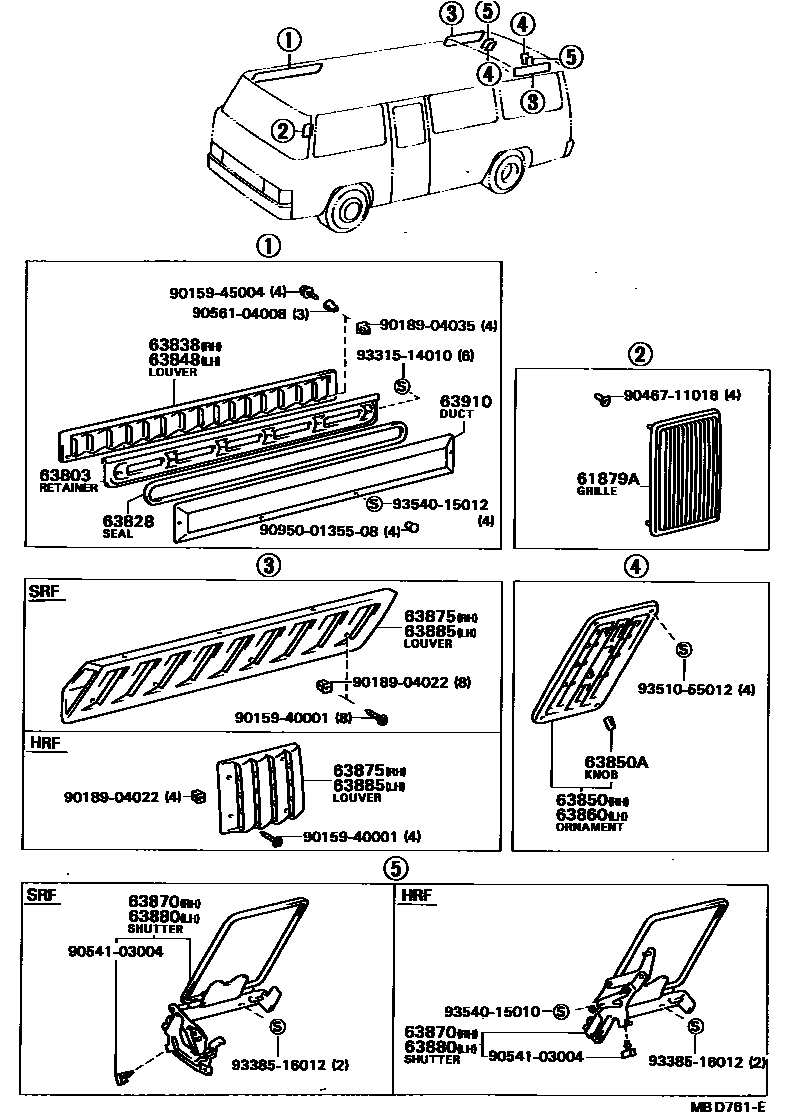

REAR VENTILATOR & ROOF VENTILATOR

61879AGRILLE, PILLAR AIR OUTLET

main61879-90B00iBB2#,FB30,HB30,RB20198205-199301

63803RETAINER SUB-ASSY, FRONT ROOF SIDE VENT

main63803-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

63828SEAL, FRONT ROOF SIDE VENT

main63828-90B00iBB32..4FC199001-199301

63838LOUVER, FRONT ROOF SIDE VENTILATOR, RH

main63838-90B00-08iBB21,HZB30,RB20..RHD199001-199301

IVORY,IVORY,4H8

main63838-90B00-18iBB21,HZB30,RB20..RHD; BB32..4FC199001-199301

WHITE,WHITE,045

main63838-90B00-28iBB2#,RB20..RHD..(DLX,STD)198205-198610

WHITE,WHITE,033

main63838-90B00-31iBB21,HZB30,RB20..RHD199001-199301

MAROON,MAROON,3F1

main63838-90B00-38iBB21,22,HB30,RB20..RHD198610-199001

IVORY,IVORY,4E7

main63838-90B00-48iBB21,22,HB30,RB20..RHD198610-199001

CREAM,CREAM,557

main63838-90B00-J0iBB21,HZB30,RB20..RHD199001-199301

BLUE,BLUE,8A1

main63838-90B01iBB20..16S198303-198510

main63838-90B02iBB2#..15S198510-198610

CREAM

main63838-90B03iBB20..16S198510-198610

63848LOUVER, FRONT ROOF SIDE VENTILATOR, LH

main63848-90B00-08iBB21,FB30,HZB30,RB20..LHD199001-199301

IVORY,IVORY,4H8

main63848-90B00-18iBB2#,RB20..RHD..(DLX,STD)198205-198610

WHITE,WHITE,045

main63848-90B00-28iBB21,FB30,HB30,RB20..LHD198610-199001

WHITE,WHITE,033

main63848-90B00-31iBB21,FB30,HZB30,RB20..LHD199001-199301

MAROON,MAROON,3F1

main63848-90B00-38iBB2#,RB20..RHD..(DLX,STD)198205-198610

IVORY,IVORY,4E7

main63848-90B00-48iBB21,FB30,HB30,RB20..LHD198610-199001

CREAM,CREAM,557

main63848-90B00-J0iBB21,FB30,HZB30,RB20..LHD199001-199301

BLUE,BLUE,8A1

main63848-90B01iRB20..17S198205-198510

main63848-90B02iRB20..17S198510-198610

63850ORNAMENT ASSY, REAR ROOF SIDE VENT, RH

main63850-90B00iBB20,21,FB30,HB30,HZB30,RB20..WOC198205-199301

63850AKNOB, REAR ROOF SIDE VENT CONTROL

main55905-20140×2iBB20,21,FB30,HB30,HZB30,RB20..WOC198205-199301

63860ORNAMENT ASSY, REAR ROOF SIDE VENT, LH

main63860-90B00iBB20,21,FB30,HB30,HZB30,RB20..WOC198205-199301

63870SHUTTER ASSY, REAR ROOF SIDE VENT, RH

main63870-90B00iBB20,21,FB30,RB20..SRF..WC198205-199301

main63870-90B01iBB20..RHD..STD..HRF..GEN198405-198510

W/COOLER

63875LOUVER, REAR ROOF SIDE VENT, RH

main63890-90B00iBB20,21,FB30,HB30,RB20..SRF198205-198911

main63890-90B01iBB2#,RB20..(DLX,STD)..HRF198205-198610

main63890-90B02iBB2#,FB30,HB30,HZB30,RB20..HRF198911-199301

main63890-90B03iBB2#..15S198510-198610

CREAM

main63890-90B04iBB21,FB30,HB30,RB20..SRF198911-199301

main63890-90B05iBB20,RB20..EXS198510-198610

63880SHUTTER ASSY, REAR ROOF SIDE VENT, LH

main63880-90B00iBB20,21,FB30,RB20..SRF..WC198205-199301

main63880-90B01iBB20..RHD..STD..HRF..GEN198405-198510

W/COOLER

63885LOUVER, REAR ROOF SIDE VENT, LH

main63080-90B00iBB20,21,FB30,HB30,RB20..SRF198205-198911

main63080-90B01iBB2#,FB30,HB30,RB20..HRF198610-198911

main63080-90B02iBB20,RB20..EXS198205-198510

main63080-90B03iBB22198510-198610

CREAM

main63080-90B04iBB21,FB30,HB30,RB20..SRF198911-199301

main63080-90B05iBB20,RB20..EXS198510-198610

63910DUCT ASSY, VENTILATOR, INNER

main63910-90B00iBB2#,FB30,HB30,RB20198205-198808

main63910-90B00-08iBB21,FB30,HB30,HZB30,RB20198808-199301

IVORY,IVORY

9015940001

main90159-40001

9015945004

main90159-45004

9018904022

main90189-04022

9018904035

main90189-04035

9046711018

main90467-11018

9054103004

main90541-03004

9056104008

main90561-04008

909500135508

main90950-0135508

9331514010

main93315-14010

9338516012

main93385-16012

9351055012

main93510-55012

9354015010

main93540-15010

9354015012

main93540-15012

26 parts on this diagram · 1 diagram in section
